Installation
5. Verify the sensor tip made contact with the pipe wall by removing the pipe and
ensuring that some of the marker has been rubbed off. For special-cleaned Annubar
sensors, look for wear marks on the tip. If the tip did not touch the wall, verify pipe
dimensions and the height of mounting body from the outer diameter of the pipe and
re-insert.
6. Align the flow arrow with the direction of flow. Re-insert the flowmeter into the Pak-Lok
body and install the first packing ring on the sensor between the lock ring and the
packing follower. Take care not to damage the split packing rings.
7. Push the packing ring into the Pak-Lok body and against the weld lock ring. Repeat this
process for the two remaining rings, alternating the location of the packing ring split by
180°.

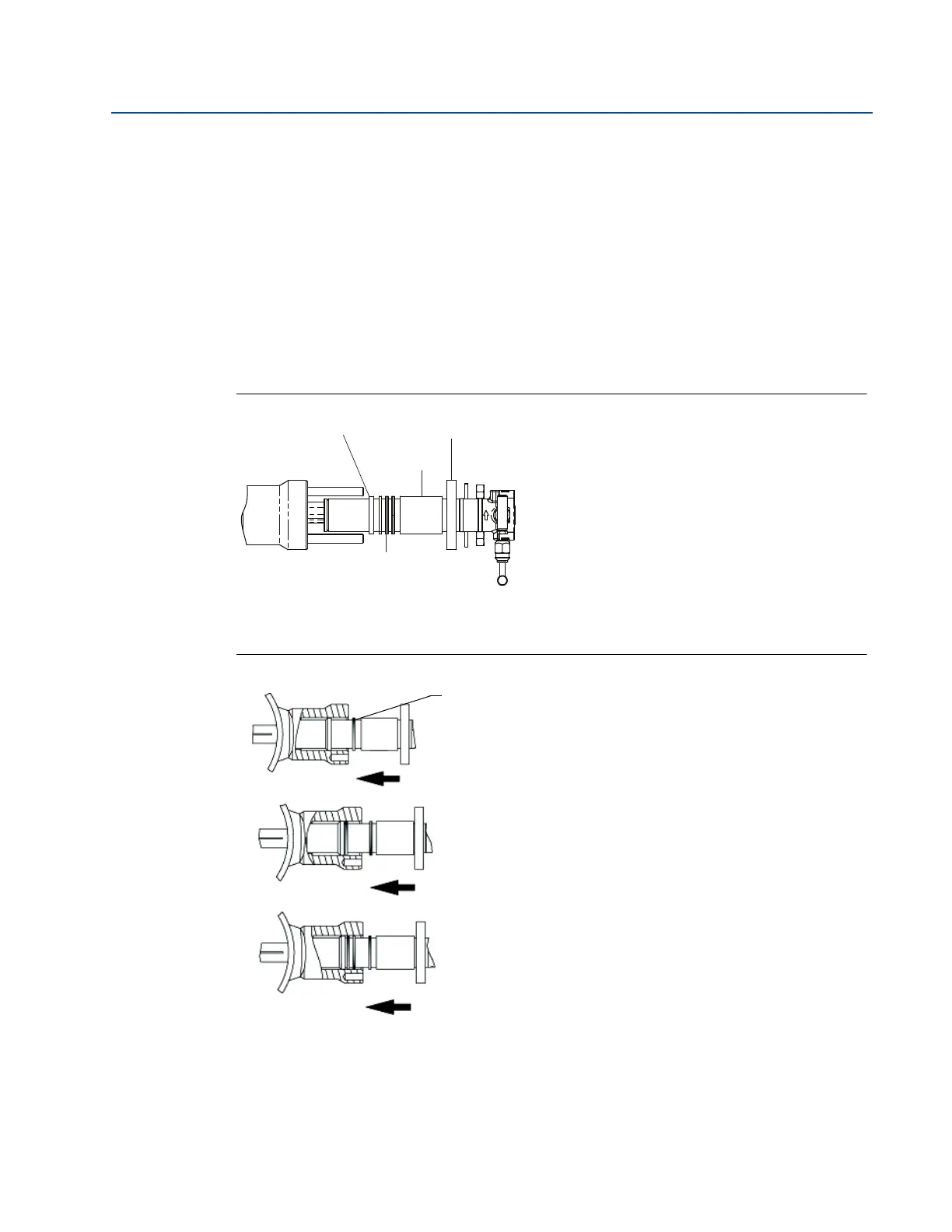

Figure 2-16. Packing Ring Detail
A. Retaining ring
B. Compression plate
C. Follower
D. Packing rings (3)
1. Install the first Packing Ring underneath the Follower.
2. Use the Follower and the Compression Plate to compress
the first Packing Ring against the Retaining Ring.
3. Install the second Packing Ring underneath the Follower.
Alternate packing ring splits by 120 degrees to each other.
4. Use the Follower and the Compression Plate to compress
the second Packing Ring against the first Packing Ring.
5. Install the third Packing Ring underneath the Follower.
6. Use the Follower and the Compression Plate to compress
the third Packing Ring against the second Packing Ring.
A
C
B
D
