3–8 • Maintenance XPression Prime Maintenance Guide (v01)

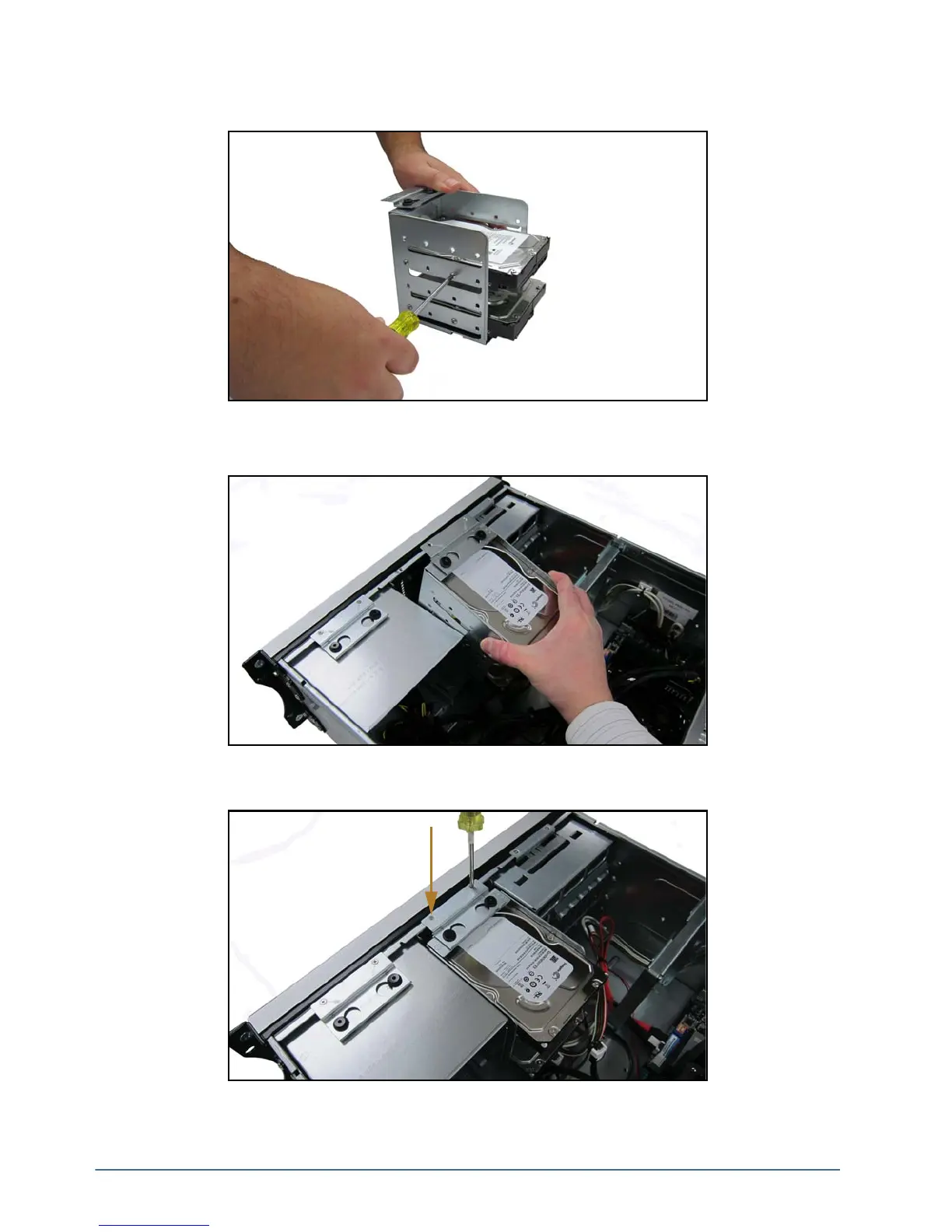

2. Insert and tighten the Phillips head screws in the screw holes. There are four screws in total: two on each side
of the drive cage.
The drive cage is now ready to be re-inserted into the XPression Prime system.
3. Insert the drive cage into the XPression Prime system.
4. Using a Phillips head screwdriver, insert the two screws on the top of the drive cage at the front of the
XPression Prime system.
