3–18 • Maintenance XPression Prime Maintenance Guide (v01)

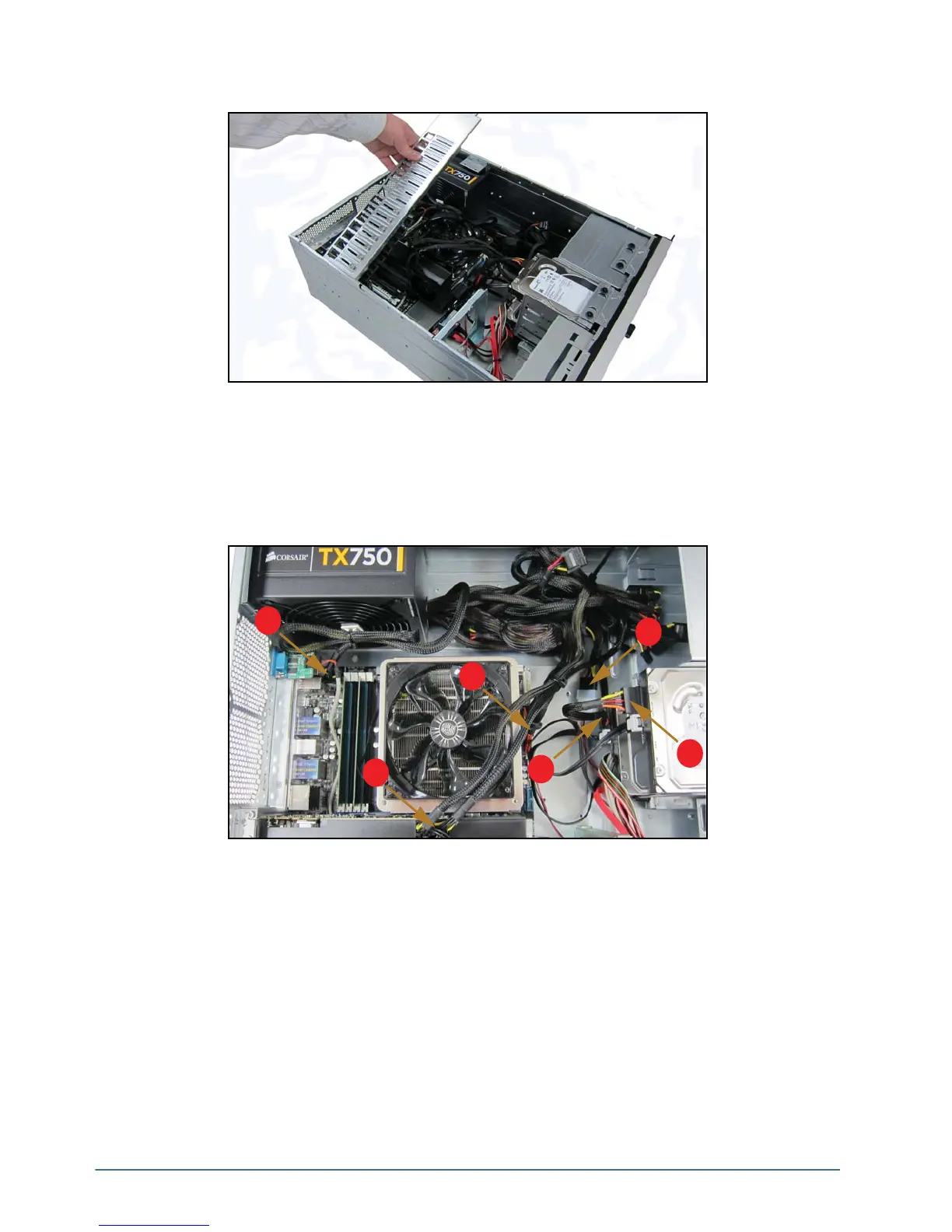

6. Remove the retaining bar.
7. Disconnect the power supply cables from the XPression Prime system. There are six cables in total to
disconnect:
• two from the motherboard (1, 3)
• one from the GPU (2)
• two from the system drives (4, 5)
• one from the DVD drive (6)
1
2
3
4
5
6
