Reader
Proximity and keypad readers are supplied with a limited cable. The color of the cable
covering represents the cable’s function.
 When extending cable distance be careful with the color of the cable cover. The distance is
limited by the Wiegand standard.
Key
+V Red
(-) Black
D0 Green
D1 White
G.LED Brown
Tamper Purple

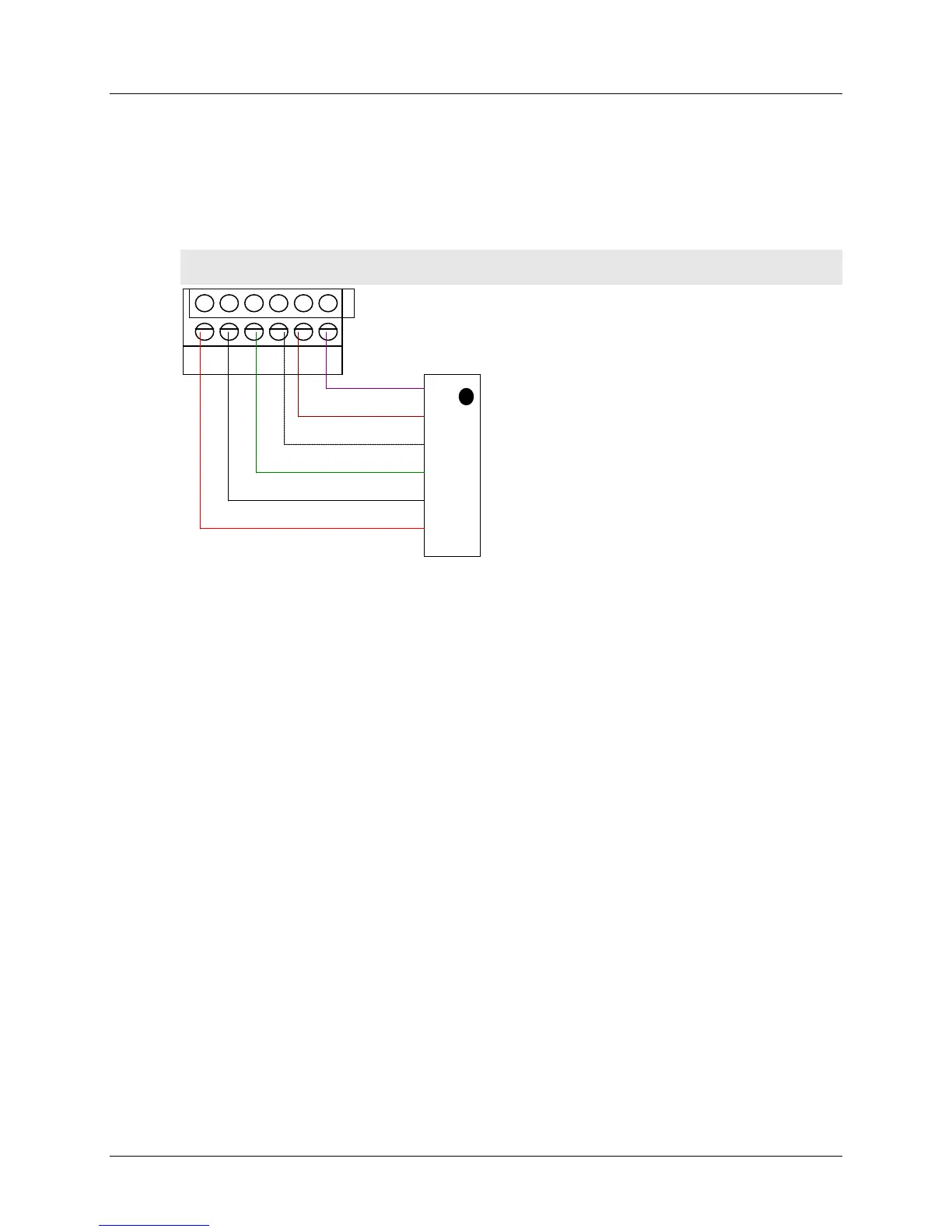

Proximity Reader
READER 1
Purple
Brown
White
Green
Black
Red
