AC-215IP Panel Setup

AC-215IP Hardware Installation Manual 13

3. AC-215IP Panel Setup

Every AC-215IP panel controls one or two doors. The panels connect together

in a network and are controlled by a central server computer, running the

AxTraxNG™ software system.

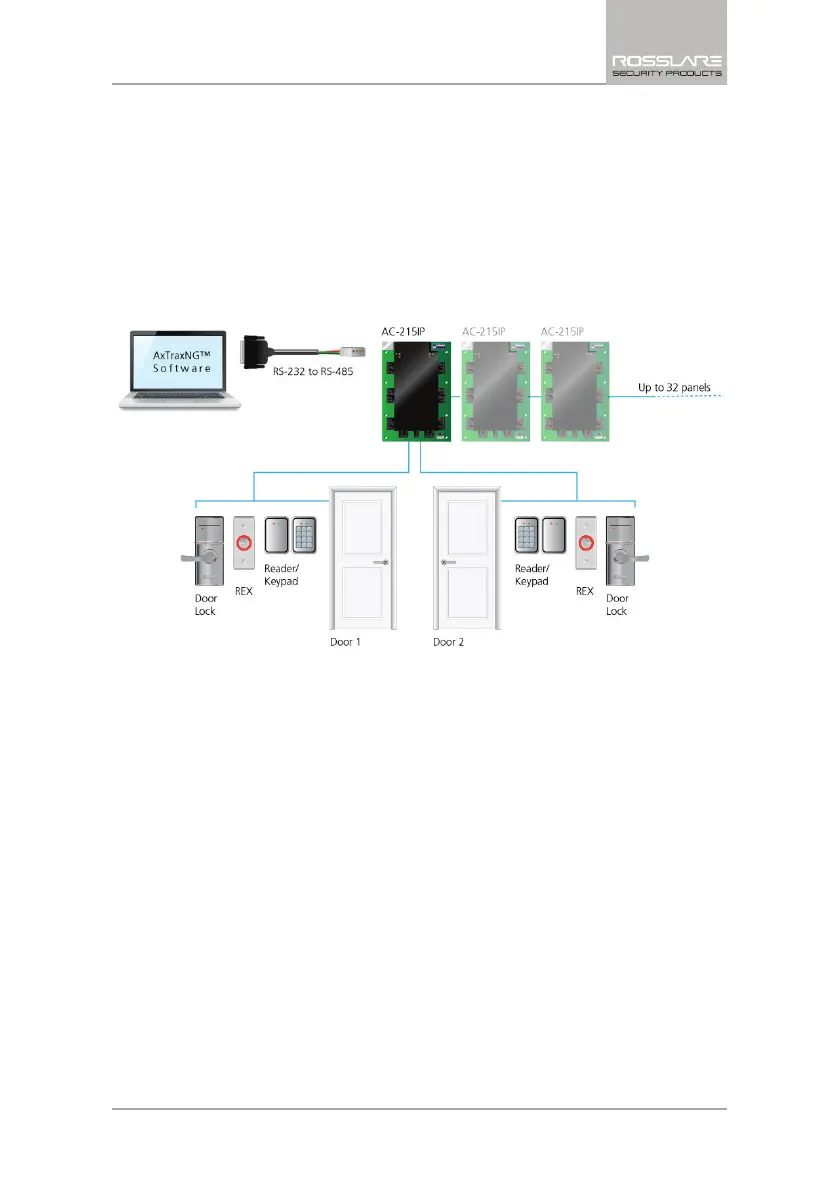

Figure 2 shows an example setup for a network of AC-215IP access control

panels.

Figure 2: Sample AC-215IP Configuration
