Wiring Instructions
AYC-Qx4 family manual Page 12

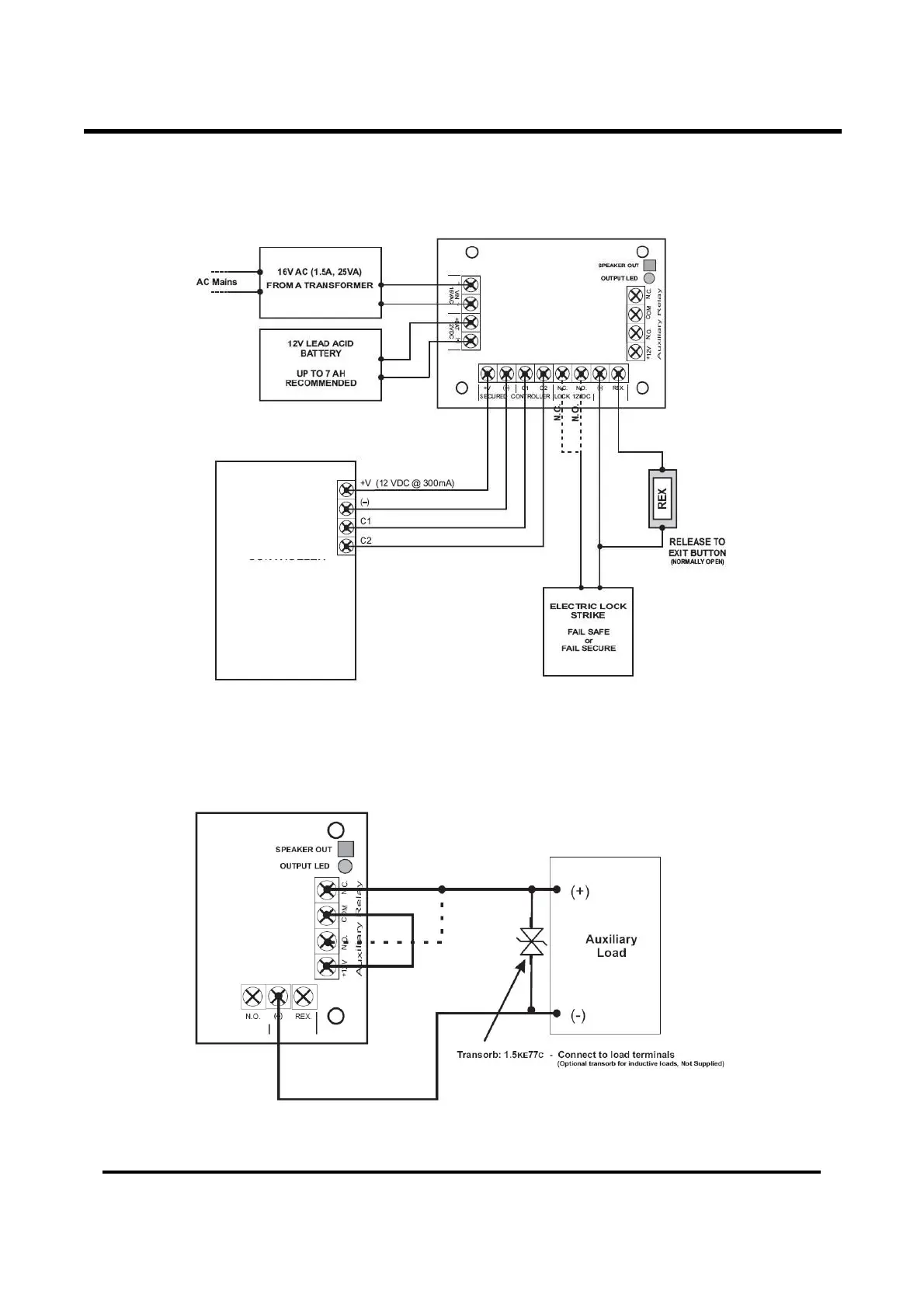

Wiring diagram #1 (below) shows the wiring for the Controller
Application using a Dual Relay Secure Application Appurtenance.
Figure 2 Controller Application Wiring Diagram #1
Wiring diagram #2 (below) shows the auxiliary output connection
using internal power.
Figure 3 Controller Application Wiring Diagram #2
Rosslare
PS-X25
Rosslare
PS-X25
AYC-Qx4B
