Checking and Adjusting Equalizer Cables:
Raise lift to check equalizer cable tension. Below carriage, grasp
adjacent cables between thumb and forefinger, with about 67N
effort you should just pull the cables together. Adjust at upper
tie-offs (Fig. 4).

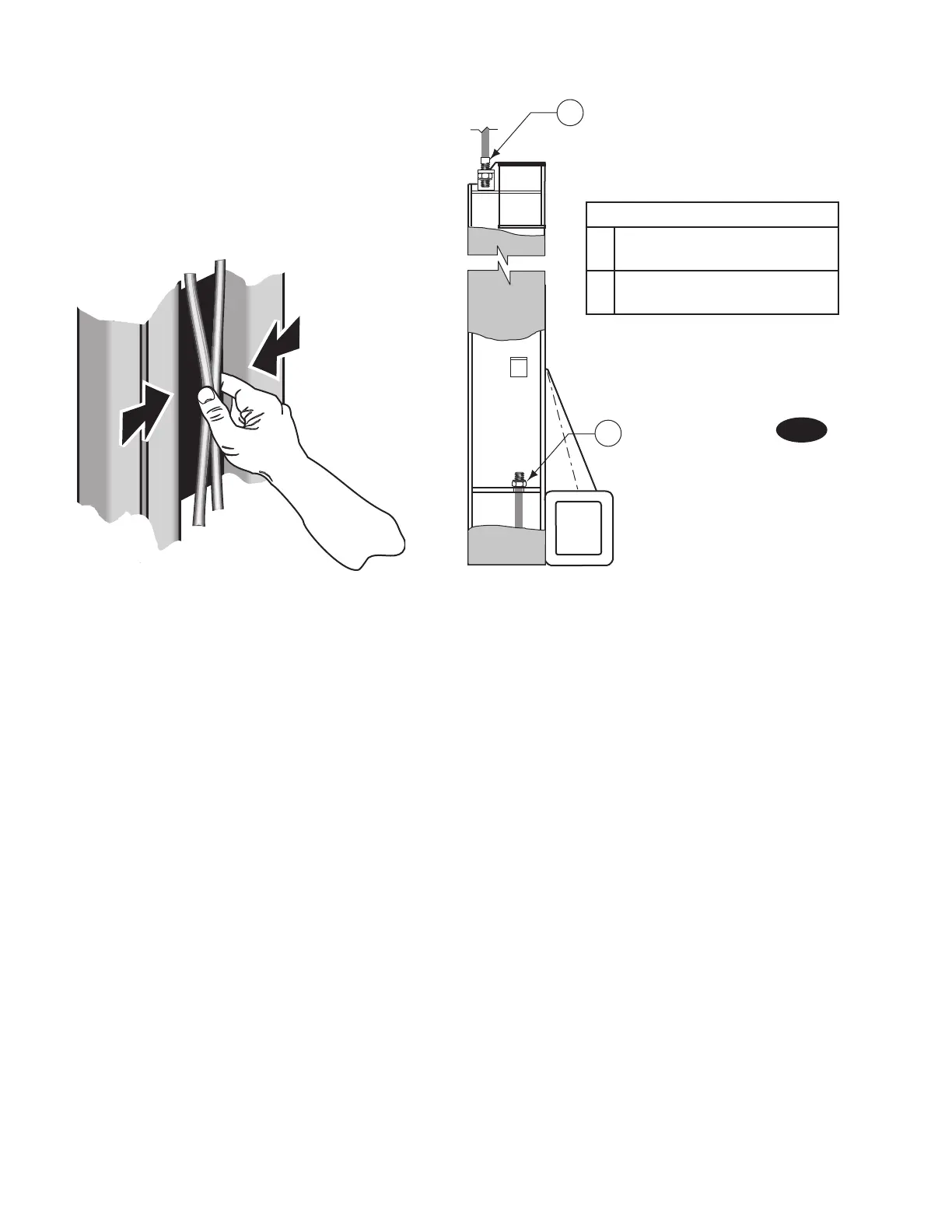

Fig. 4
Fig. 4 Detail
A Upper cable tie off and 3/4" nylon
insert lock nut.
B Lower cable tie off and 3/4" nylon
insert lock nut.
EQUALIZER CABLE ADJUSTMENT
A
B
