11
Risk of injury through toppling of
the vehicle when incorrectly loaded.
Comply with the permitted load capacity as in
Fig. 1 and 2.
Comply with the permitted weight distribution
as in Fig. 1 and 2.
Comply with the approved distances between
pick-up points as in Fig. 3.

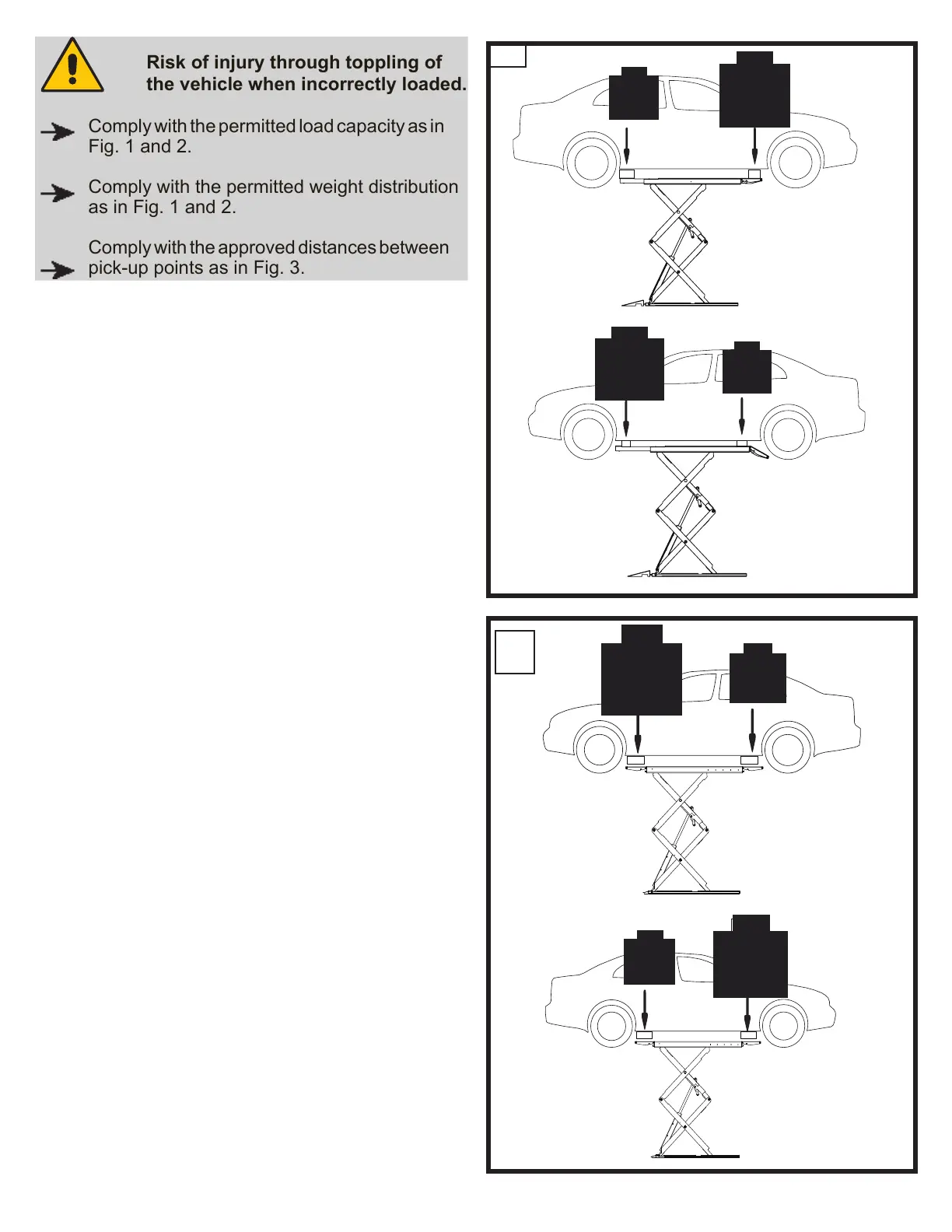

Figure 1&2:
DS35/DS35EX: Load capacity 3500kg
front max. 3/5:F1: 2100 kg
back max.2/5:F2: 1400 kg
2.4 Ban on unauthorized modications or
alterations
• Unauthorized modications and alterations to the
scissor lift are not permitted for safety reasons.
• The operating permit shall also be deemed null
and void.
• The Declaration of Conformity also becomes null
and void.
2.5 Experts, competent persons
The scissor lift must be inspected after commiss-
ioning and at regular intervals (after max. one year),
as well as after design modications or repair of sup-
porting parts. Inspections may be carried out by
the following people:
Certied expert
These are people who have specialist knowled-
ge in the eld of lifts based on their professional
training and experience.
Experts should be able to inspect lifts and make
an expert assessment thereof.
TÜV experts, specialist engineers from the manu-
facturer or self-employed specialist engineers can
be used for inspections.
2
F1 F2
F1F2
1
Recommended
distribution
DS35EX
F1
F1
F2
F1
F1
F2
DS35
Recommended
distribution
