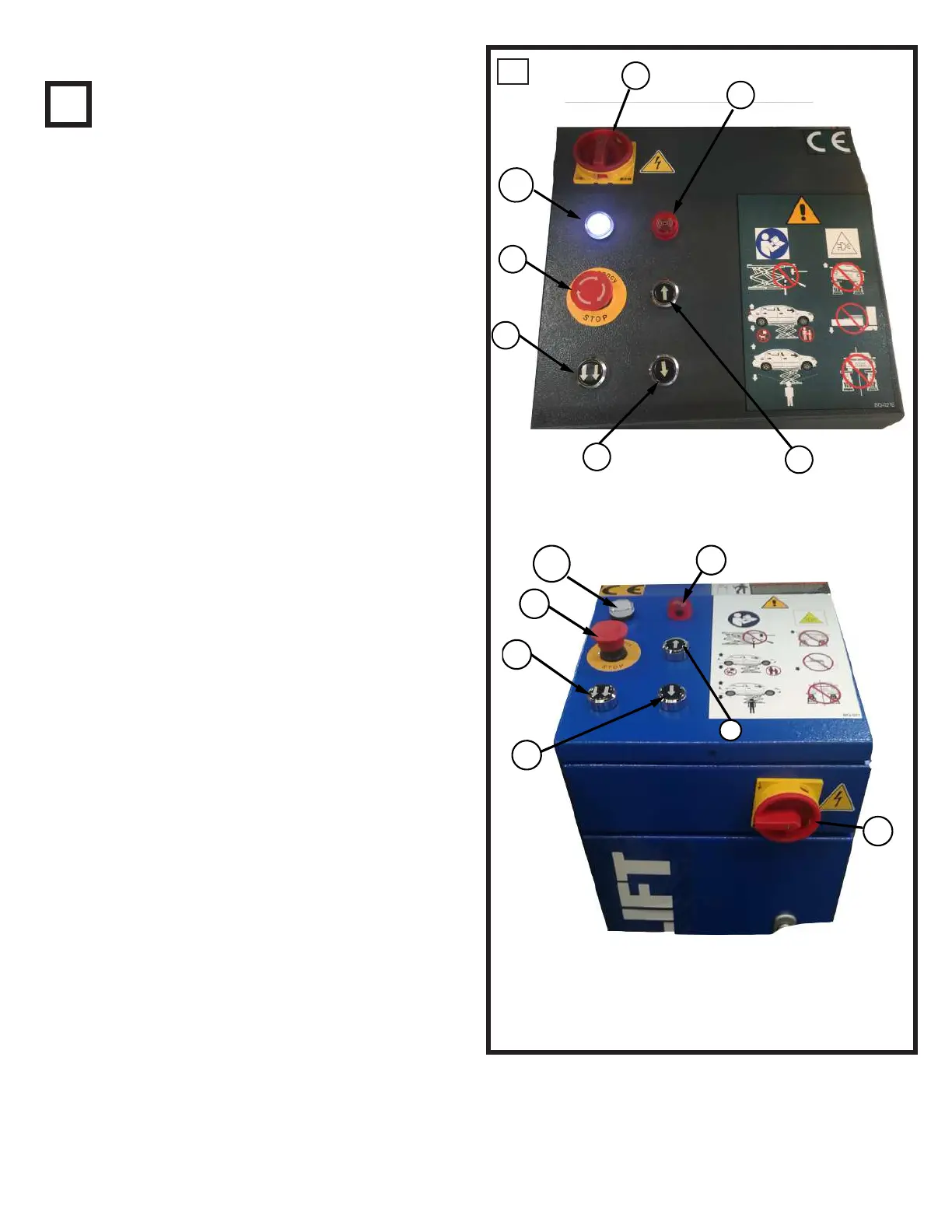

3.5 Control unit
All movement of the scissor lift stops
immediately when you release a pressed
button.
i
1. Lockable main switch
"ON“ setting: Scissor lift ready for use.
"OFF“ setting: Scissor lift out of use. The mains
voltage is still present inside the control box.
Switching off (OFF) immediately stops any
movement of the scissor lift (= emergency stop).
2. Power light
"Light“ :Scissor lift with the power and ready for
use.
"Dark“ Scissor lift without the power and our of
use.
3. Buzzer
Acoustic alarm. Sounds:
•
When lowering the scissor lift < 120 mm
(foot protection).
4. Emergency stop
Press the button,immediately stops any
movement of the scissor lift .
5. LOWER TO GROUND button
Down button in the danger zone below
120mm
Only functions after the 120mm automatic shutoff
has reacted to Down(6) . the platform can then
be lowered completely if only button(5)is pressed
at that time. A buzzer sounds throughout then
entire lowering process.
6
. Down button
Functions only if the button is pressed,the lift
lower.
7. UP button
Functions only if the button is pressed,the lift
raise.
1
2
3
4
5
6
7
10
1
2
3
4
5
6
7
DS35EX Control Cabinet
(not for ME and Turkey market)
DS35 Control Cabinet
(Also DS35EX for ME and Turkey market)
