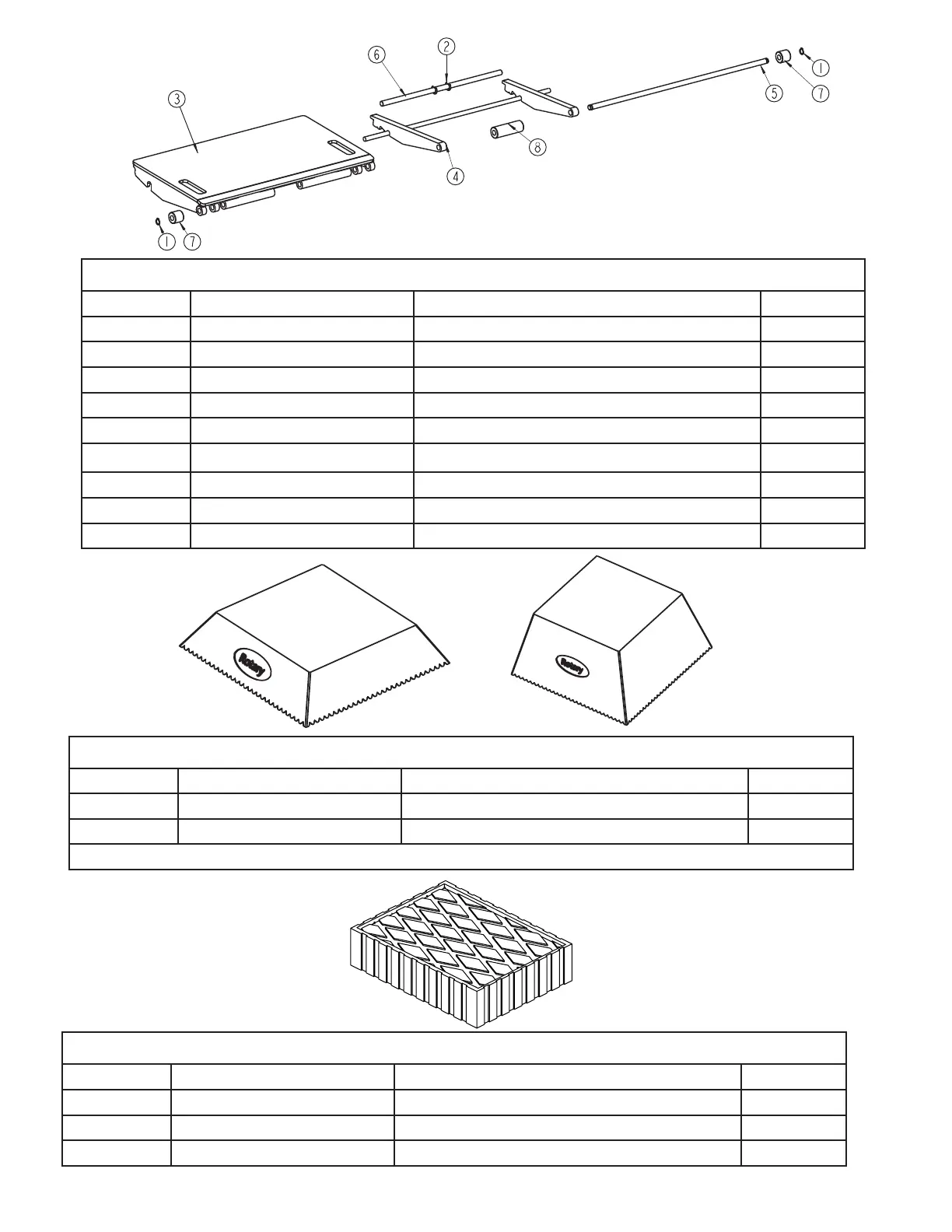

Detail for XX110003 ramp assembly

PartNo. Description Qty

1 B60-14 Circlip Φ14 2

2 B61-12 Circlip Φ12 2

3 XX120007 Ramp weldment 1

4 XX120008 Ramp support weldment 1

5 XX130063 Ramp roller shaft 1

6 XX130064 Ramp roller shaft 1

7 XX130236 Roller 2

8 XX140009 Roller 1

Detail for Rubber pad for DS35EX

PartNo. Description Qty

1 XX140075 30mm rubber pad 4

2 XX140076 70mm rubber pad 4

*For The Middle East and Turkey Market DS35EX use Below rubber pad (FJ2427/2428/SB700071Y)

XX110003

Detail for Rubber pad for DS35

PartNo. Description Qty

1 FJ2427Y 38 mm rubber pad 4

2 FJ2428Y 76 mm rubber pad 4

3 SB700071Y 13 mm rubber pad 4
