11.9 Hose Covers and Anchoring(surface
mounted)
•
Position hose covers as necessary per control
cabinet location. Use provided anchors to fasten

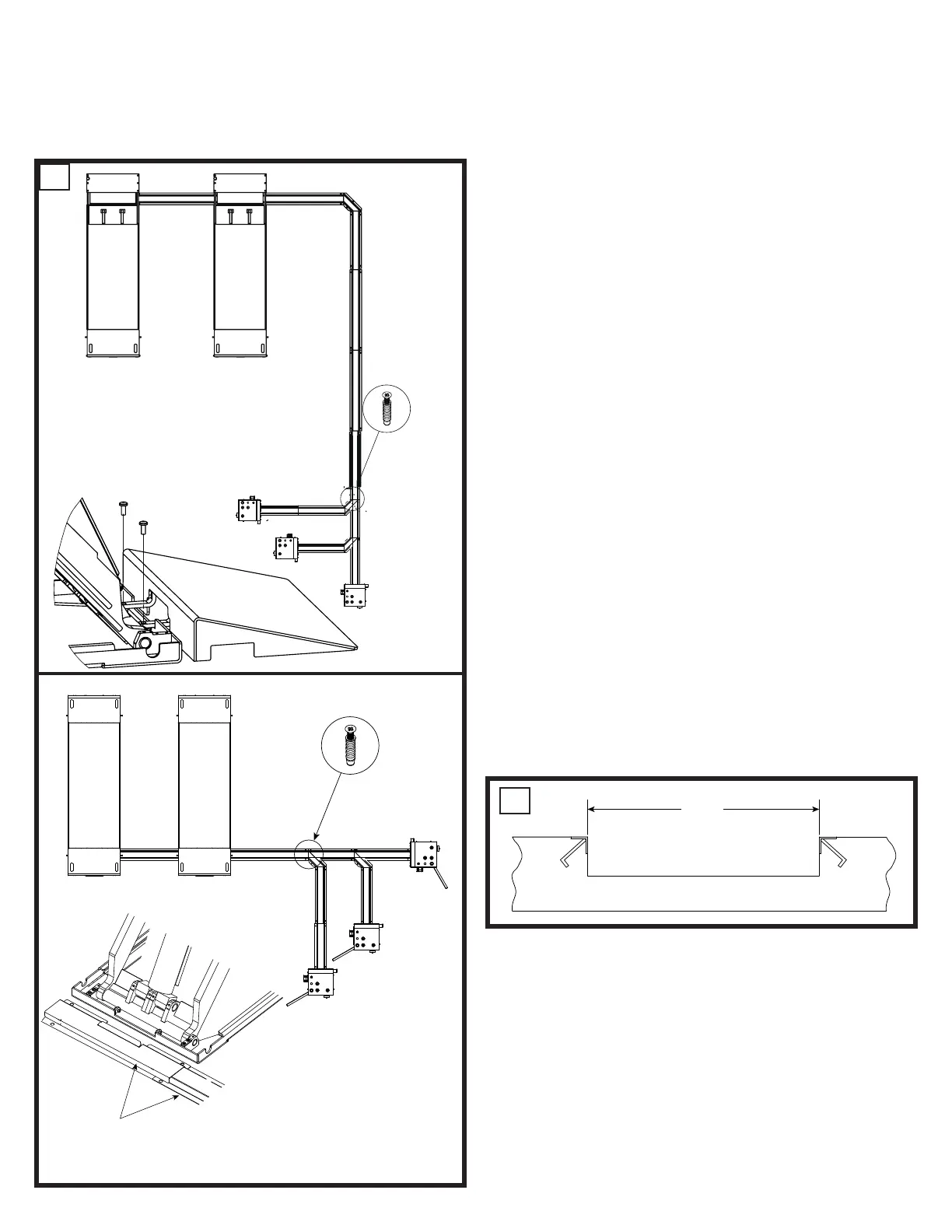

all hose covers securely, Fig. 27.
NYLON
ANCHORS
27
A
11.10 Flush Mount Pit
•
Prior to pouring concrete, installer will need either
the Full Flush Mount Kit (part # XX100025/
XX100003) or Recess Box Flush Mount Kit (part #
XX100024/XX100014). Please contact the phone
number listed on the front cover of the manual for
additional assistance. The Full Flush Mount Kit
contains frame components with concrete ties that
will need to be placed during concrete pour. See
parts breakdown manual for included components.
Pit forms are not provided and will be the
responsibility of the installer.
•
Bend frame anchors outward, perpendicular to
angle frame, and downward approximately 45° to
oor level, Fig. 28.
•
Place the recess box in the pit and install M8 bolts
to secure to frame and anchors to pit oor. If
recess weldment is not used, fasten recess box
using anchors only, Fig. 29. Install hose cover to
recess box using M8 bolts and anchors to pit oor,
Fig. 29.
•
For ush mount pit specications, see section 7.
Technical data.
688mm
28
NYLON
ANCHORS
Note:if the platform are spaced furtherthan 800mm during
installation, shift the hose covers under platforms and
middle hose covers as needed to avoid gaps.
