37
Cylinder Rebuilding(for changing the seal kit)
1) Remove manual bleeder and extend plunger
from casing.
2) Remove piston retaining ring or clip.
3) Remove plunger from casing.
4) Clean inside of casing, making sure all debris is
removed with mineral spirits.
5) Inspect seal for damage.
6) Replace seal and all other components (wiper,
wear ring, etc.).
7) Coat seal with oil or white grease.
8) Reinstall plunger, retaining ring, and manual
bleeder being careful not to scratch or dent plunger
surface.
Cylinder Replacement
1) Reinstall cylinder and reconnect hose tting and
shafts.
2) Reconnect power source.
4) Raise cylinder until platformas or scissors out off
the obstacle.take off the obstacle.
5) Lower both platformas.
6) Carefully raise carriages about two feet. Bleed air
from both cylinders.
7) Fully lower lift.
8) Check and add uid as necessary.
9) Raise lift to full rise and check for leaks.
10) Tag lift back in service.
10. Transport, Storage

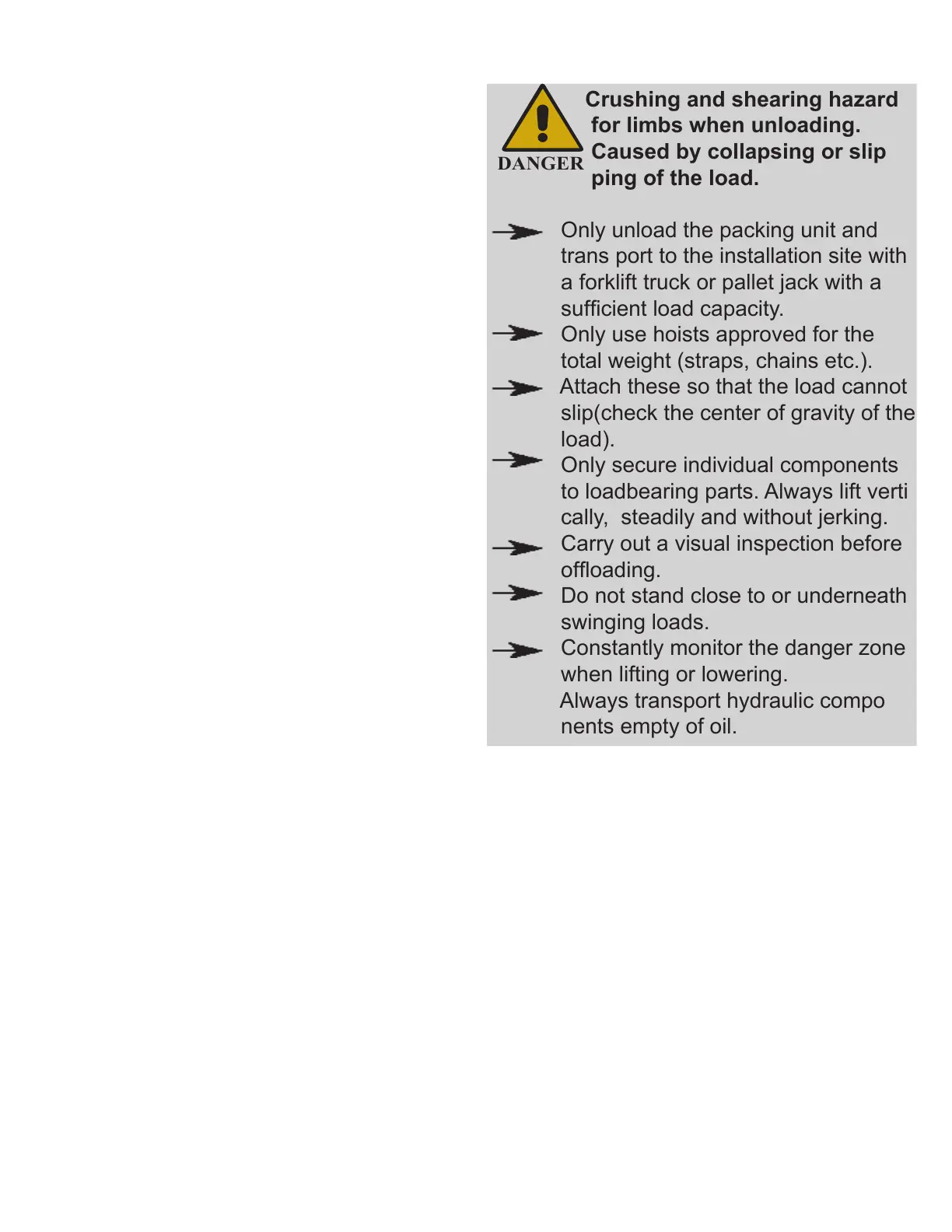

Crushing and shearing hazard
for limbs when unloading.
Caused by collapsing or slip
ping of the load.
Only unload the packing unit and
trans port to the installation site with
a forklift truck or pallet jack with a
sufcient load capacity.
Only use hoists approved for the
total weight (straps, chains etc.).
Attach these so that the load cannot
slip(check the center of gravity of the
load).
Only secure individual components
to loadbearing parts. Always lift verti
cally, steadily and without jerking.
Carry out a visual inspection before
ofoading.
Do not stand close to or underneath
swinging loads.
Constantly monitor the danger zone
when lifting or lowering.
Always transport hydraulic compo
nents empty of oil.
