Page | 10 DRM-3000 Operating Manual
4 Description
4.1 Physical presentation
4.2 Connector View

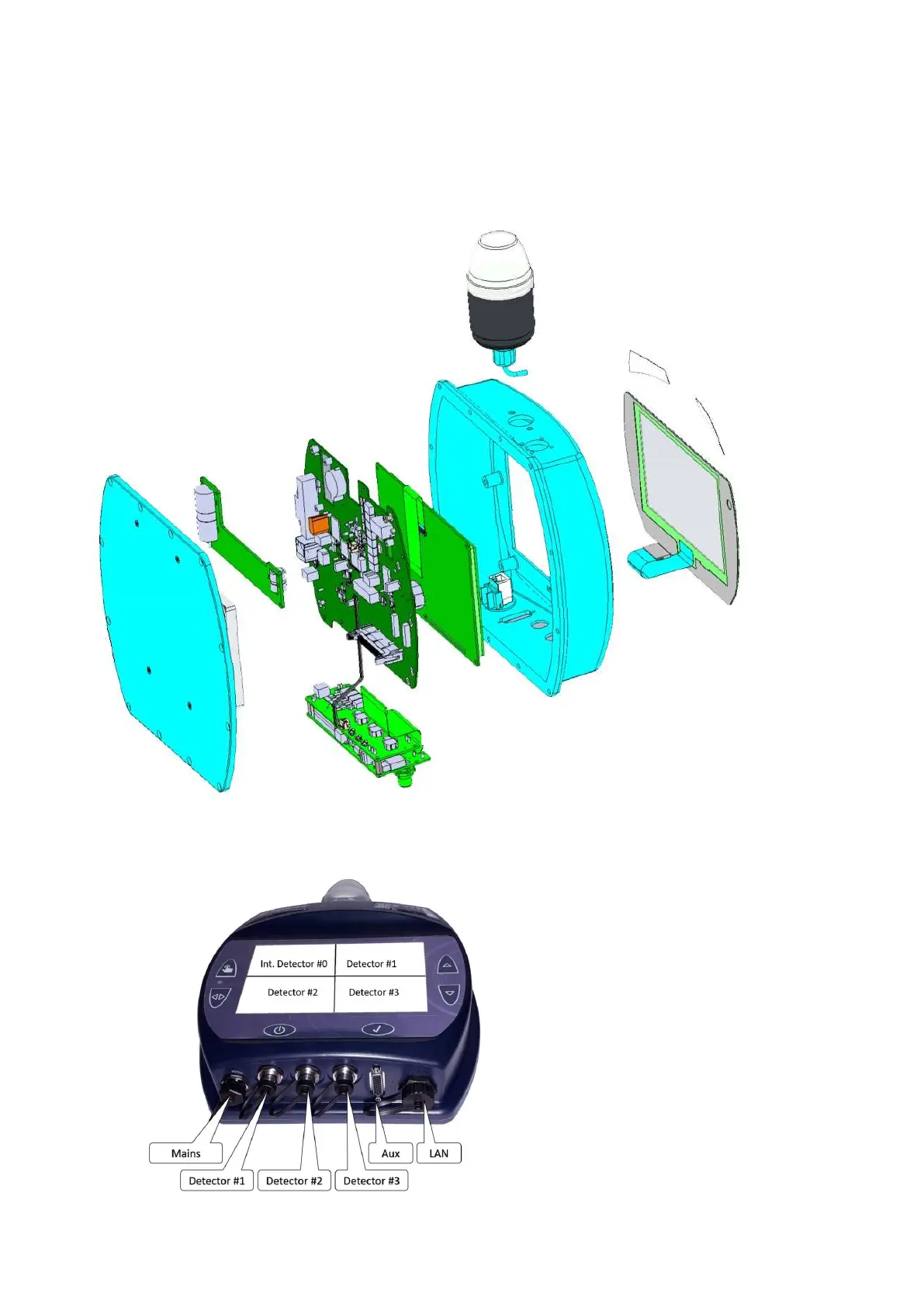

CPS Stack
Board
Detector CPU Board
Backup Battery Pack
(Optional)
Internal
Buzzer
Rear Cover
Internal Detector Board
(optional)
CPU Mainboard
7 inch HD Display
High Impact Plastic Casing
External Power
Plug
Touch Panel
High Volume Buzzer and Casing (Optional)
Multicolored LED
Logo Instrument
Logo Company
WRM
-
2 mounting pads
