Page | 20 DRM-3000 Operating Manual

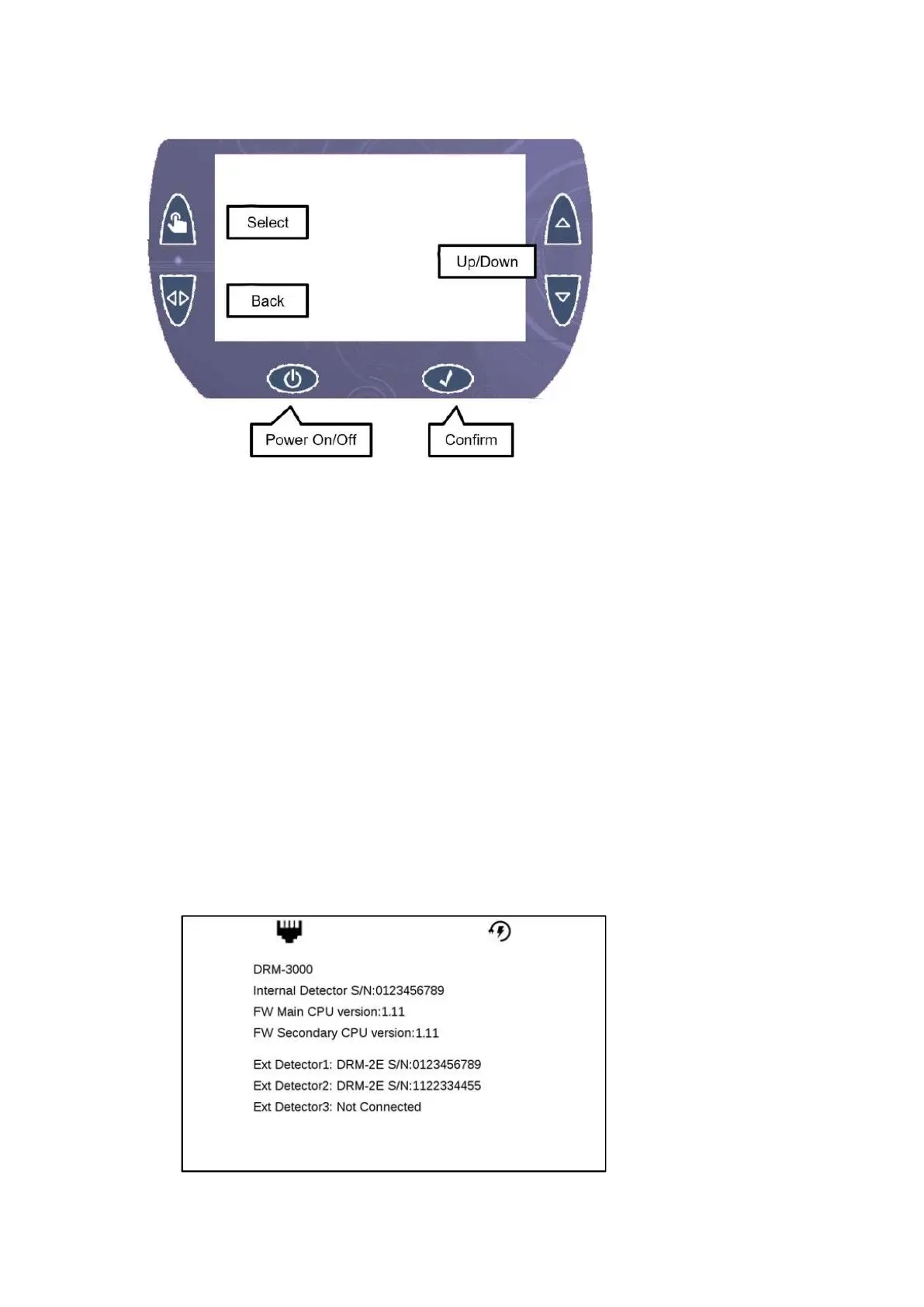

6.7.3 Pushbuttons
6.7.3.1 Powering Up the Meter
Before powering up the Meter, make sure all the external detectors are connected, during
the powering up routine, the Meter will automatically identify all connected detectors.
Press, with a short press on the On/Off Button, the Display will flash and the Meter will
begin the Power Up Routine.
6.7.3.1.1 Power Up Routine
Screen Flashes once
Penguin shown top left hand corner
Open embedded loading
Desktop followed by
Startup Screen
Upper Led flashes green and buzzer sounds and after a few seconds the Display
shows the Radiation Data.
The Startup Screen
