Page | 11 DRM-3000 Operating Manual
5 Mounting the DRM-3000
The DRM-3000 can be either wall mounted or connected to a tabletop bracket.
5.1 Wall Mounting

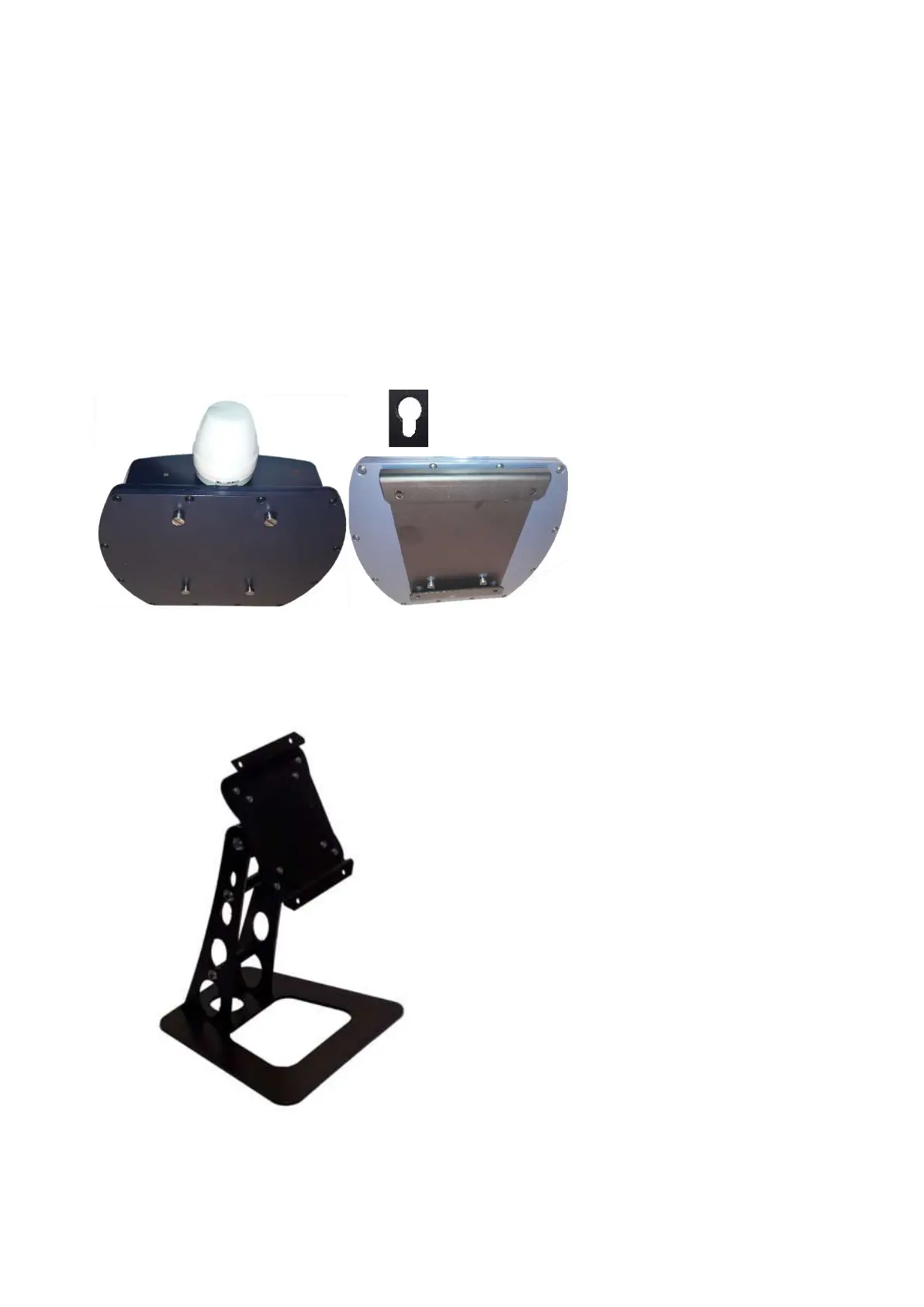

The DRM-3000 is supplied with a wall bracket and 4 Wall mounting screws. Attach the 4 screws to the
back cover of the Meter and attach the Wall bracket to the wall taking care that the key slots are facing
upwards . The DRM-3000 is attached to the bracket by placing the four screws over the key slots and
pushing down to secure.
5.2 Table Top Mounting
The four screws shown above can be used to secure the DRM-3000 to the Table top Bracket shown
here
Key slot direction
