2 x Product description
12
BA ROTEX A1 BG Inline - 10/2007

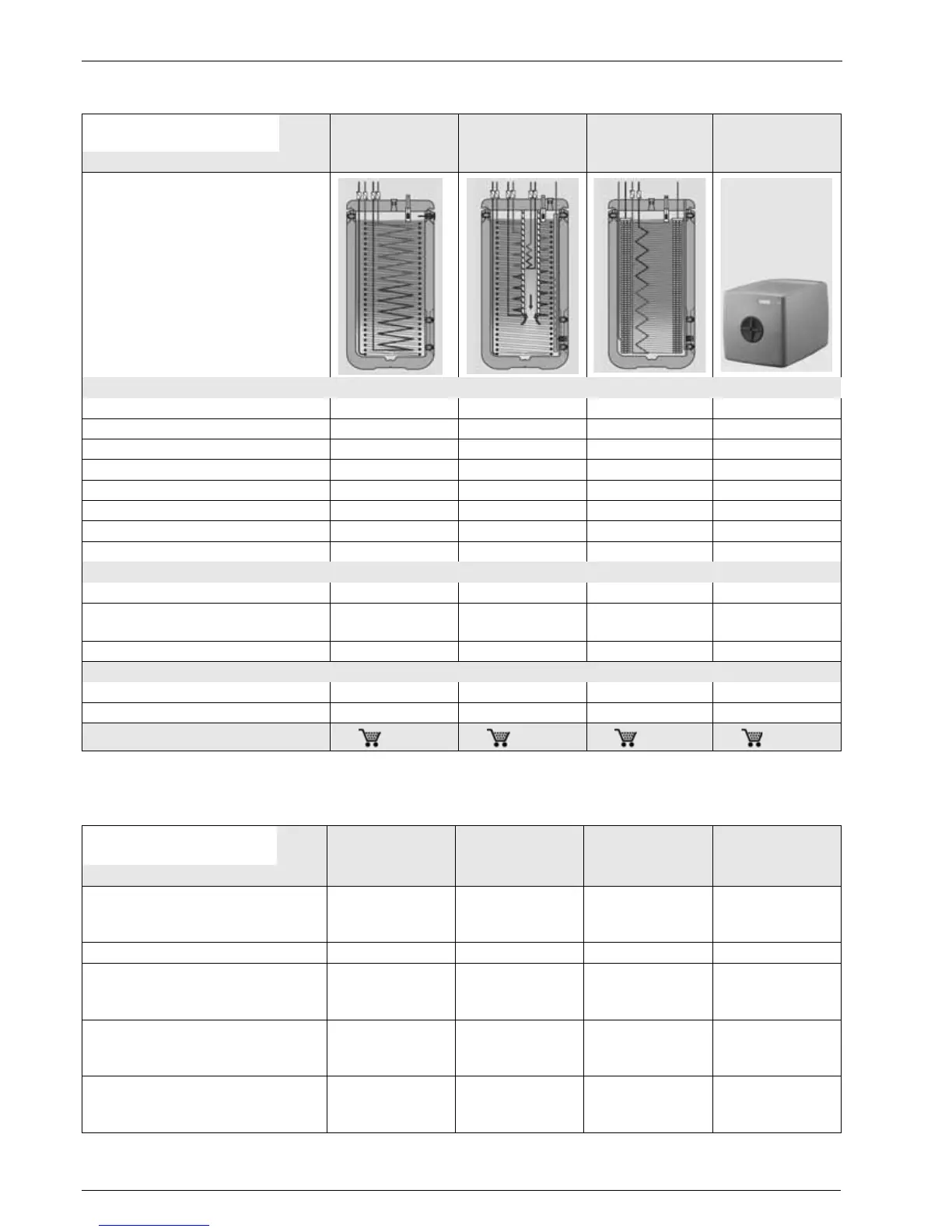

Basic technical data for hot water storage tank
Tab. 2-1 Basic technical data of the ROTEX hot water storage tank which can be connected to the gas condensing boiler
Heating output data for hot water storage tank
Tab. 2-2 Thermal output data of the ROTEX hot water storage tank which can be connected to the gas condensing boiler
Type Sanicube INOX Sanicube
Solaris INOX
Sanicube
Solaris PEX
Sub-tank for hot water
storage tank
Parameter SC 38/16/0 SCS 38/16/0 SCS 580/1 US 150
Basic data
Total storage capacity 500 Litres 500 Litres 500 Litres 148 Litres
Empty weight 84 kg 87 kg 109 kg 44 kg
Total filled weight 584 kg 587 kg 609 kg 192 kg
Dimensions (L x B x H) 79 x 79 x 159 cm 79 x 79 x 159 cm 79 x 79 x 159 cm 100 x 66 x 66 cm
Maximum permissible storage water temperature 85 °C 85 °C 85 °C 90 °C
Stand-by heating power 1,4 kWh/ 24h 1.4 kWh/ 24 hrs 1.4 kWh/ 24 hrs 1.1 kWh/ 24 hrs
Maximum operating pressure 10 bar 10 bar 6 bar 10 bar
Drinking water heat exchanger material Stainless steel (1.4404) Stainless steel (1.4404) PEX Pressure vessel (ES)
Water content of the heat exchanger
Drinking water heating 24.5 Litres 24.5 Litres 80 Litres 144 Litres
Storage tank charging heat exchanger
(stainless steel)
10.4 Litres 10.4 Litres 10.4 Litres 3,3 Litres
Solar heating support (stainless steel) 2 Litres
Pipe connections
Cold and hot water 1" MT 1" MT
¾" FT ¾" FT
Heating inflow and return flow 1" MT 1" MT 1" MT
¾" MT
Order number
16 50 16 16 45 16 16 50 06 16 01 50
Type Sanicube INOX Sanicube
Solaris INOX
Sanicube
Solaris PEX
Sub-tank for hot water
storage tank
Parameter SC 38/16/0 SCS 38/16/0 SCS 580/1 US 150
Key performance indicator N
L
according to DIN
4708 (on recharging at 35 kW, T
KW
= 10°C /
T
WW
= 45°C / T
SP
= 65°C / T
v
: 80°C)
4,1 2,3 3,5 2,2
Continuous rating Q
D
according to DIN 4708 35 kW 35 kW 35 kW 25 kW
Hot water quantity without reheating up to
15 l/min tapping rate (T
KW
= 10°C /
T
WW
= 40°C / T
SP
= 60°C)
412 Litres 220 Litres 335 Litres 250 Litres
Hot water quantity with reheating at 20 kW
reheating power and 15 l/min tapping rate
(T
KW
= 10°C / T
WW
= 40°C / T
SP
= 60°C)
837 Litres 442 Litres 600 Litres 300 Litres
Short time water quantity in 10 min
(T
KW
= 10°C / T
WW
= 40°C / T
SP
= 60°C,
Recharging output 35 kW)
300 Litres 220 Litres 250 Litres 160 Litres
