7 x Technical data
32
BA ROTEX A1 BG Inline - 10/2007
Integrated connection group

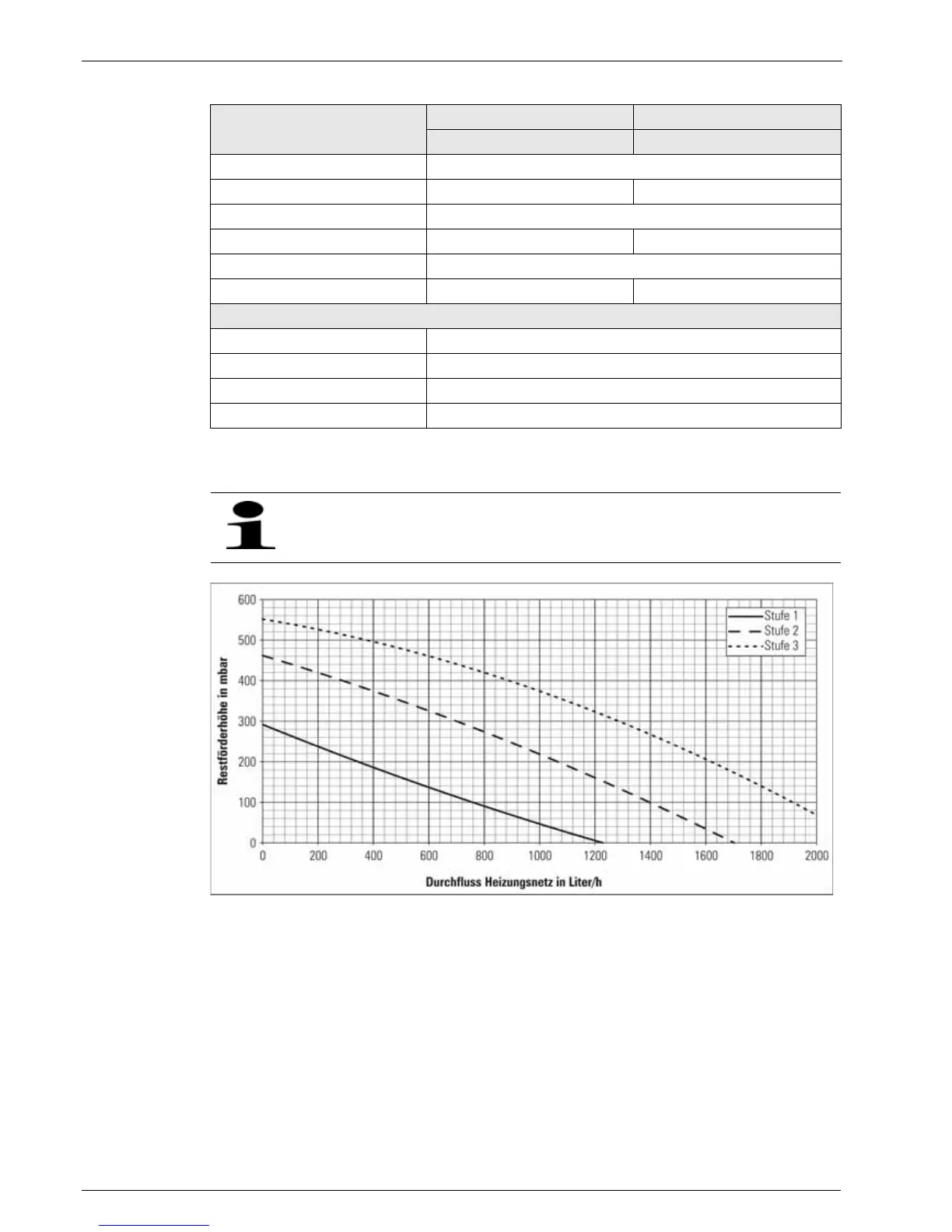

Tab. 7-4 Technical data of the integrated connection group
Flue gas target values for burner setting
A1 BG 25i A1 BG 40i
Heating circulation pump Grundfos UPS 15-60 N1 CES 87 Grundfos ALPHA+15-60 CES
Voltage 230 V, 50 Hz
Maximum power consumption 90 W 80 W
Capacity 2.5 µF
Protection type IP 44 IP 42
Permitted overpressure 3 bar
Maximum pumping height 6 m 6.2 m
3-way-switch valve
Voltage 230 V, 50 Hz
Maximum power consumption 4.3 W
Protection type IP 40
Turnaround time 6 sec.
Detailed information about burner setting and the flue gas target values are given in the installation manual for
the technical operation, which is included in the scope of supply.
Fig. 7-4 Residual pumping height A1 BG 25i (on heating side)
