Rothenberger ROWELD E Series - Descriptions

10

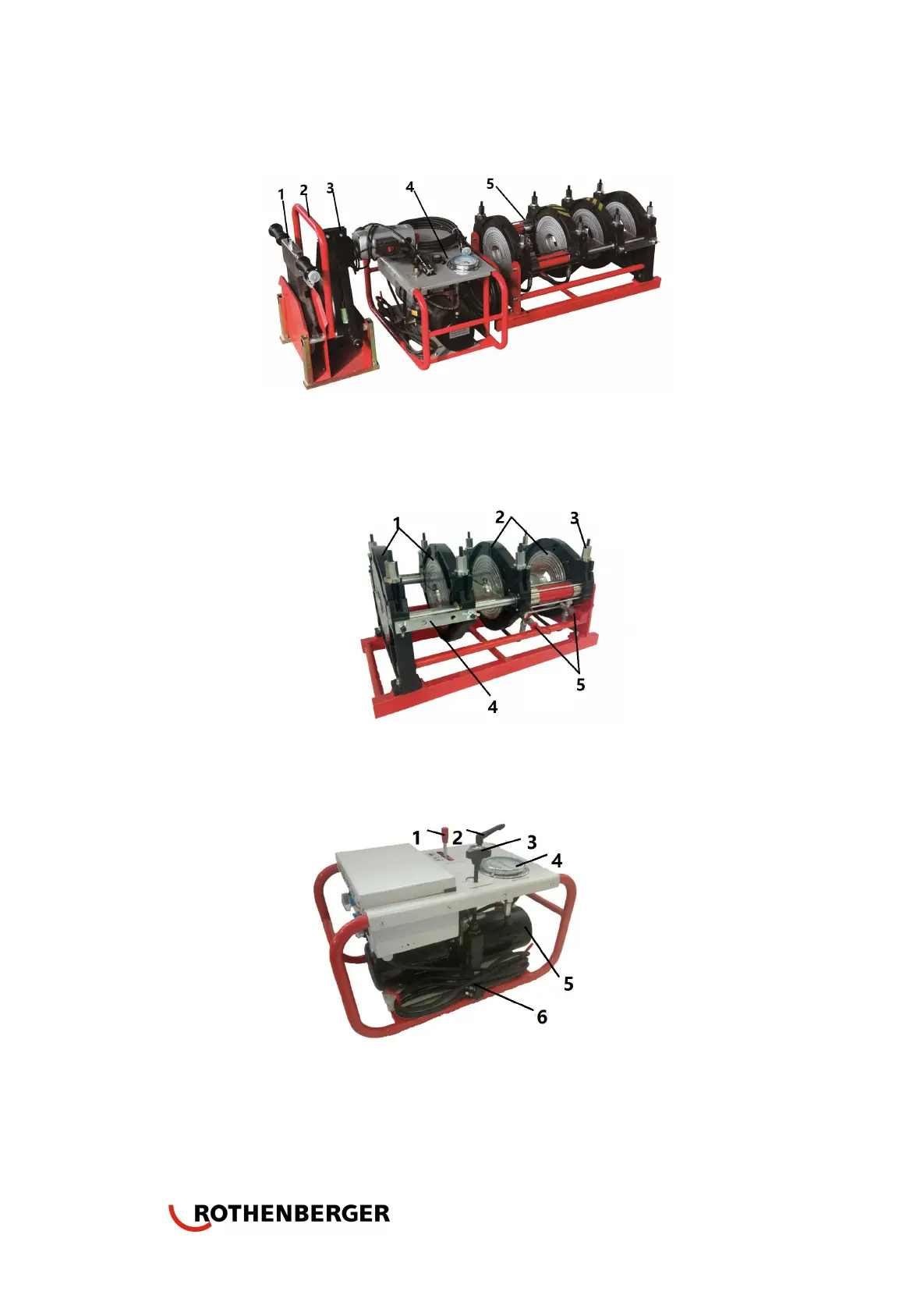

2. Descriptions
The machine consists of basic frame, hydraulic unit, heating plate, Planing tool, and support.
Figure .1
1. Heating plate
2.Support
3. Planing tool
4.Hydraulic unit
5. Basic frame
2.1 Basic Frame
Figure .2
1. Main clamp
2. Stub end device
3. Adjust screw
4. Cylinder
5. Connection
2.2 Hydraulic Unit
2.2.1 Hydraulic unit
Figure.3
1. Direction valve
2. Pressure regulation valve
3. Pressure gauge
4. Swing check valve
5. Oil tank
6. Power cable
