Section 3 Safety 3-1 S85A / S86A Manual
www.rottlermfg.com
Control Definitions
The purpose of this chapter is to define the function of buttons on the front control panel. Certain button
functions may not appear clear when first reading this chapter. As the operator reads through the
Operating Instructions chapter of this manual, these functions will become clear.
CPU Control
This machine is under control of a CPU located in the rear enclosure
Master Power On/Off Switch
This switch is located on the upper right hand side of the rear electrical cabinet.
When first applying power to the machine it will take a short while for the system to be ready for

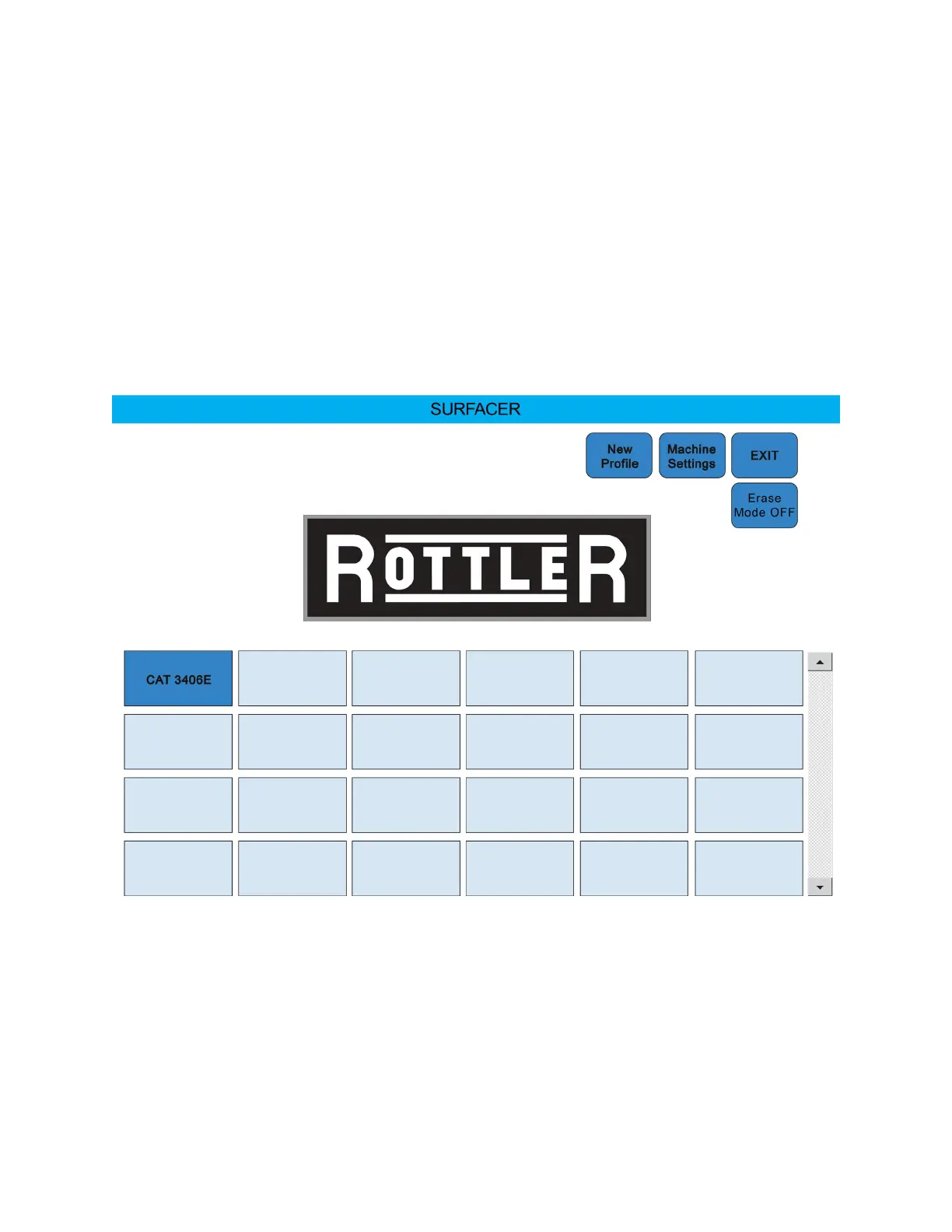

operation. Do not press any buttons on the control panel until the display show the Profile Select screen.
