Rottler S85A - Horizontal Feed; Rough and Finish Cut Settings; Vertical Feed

Section 3 Safety 3-3 S85A / S86A Manual
www.rottlermfg.com

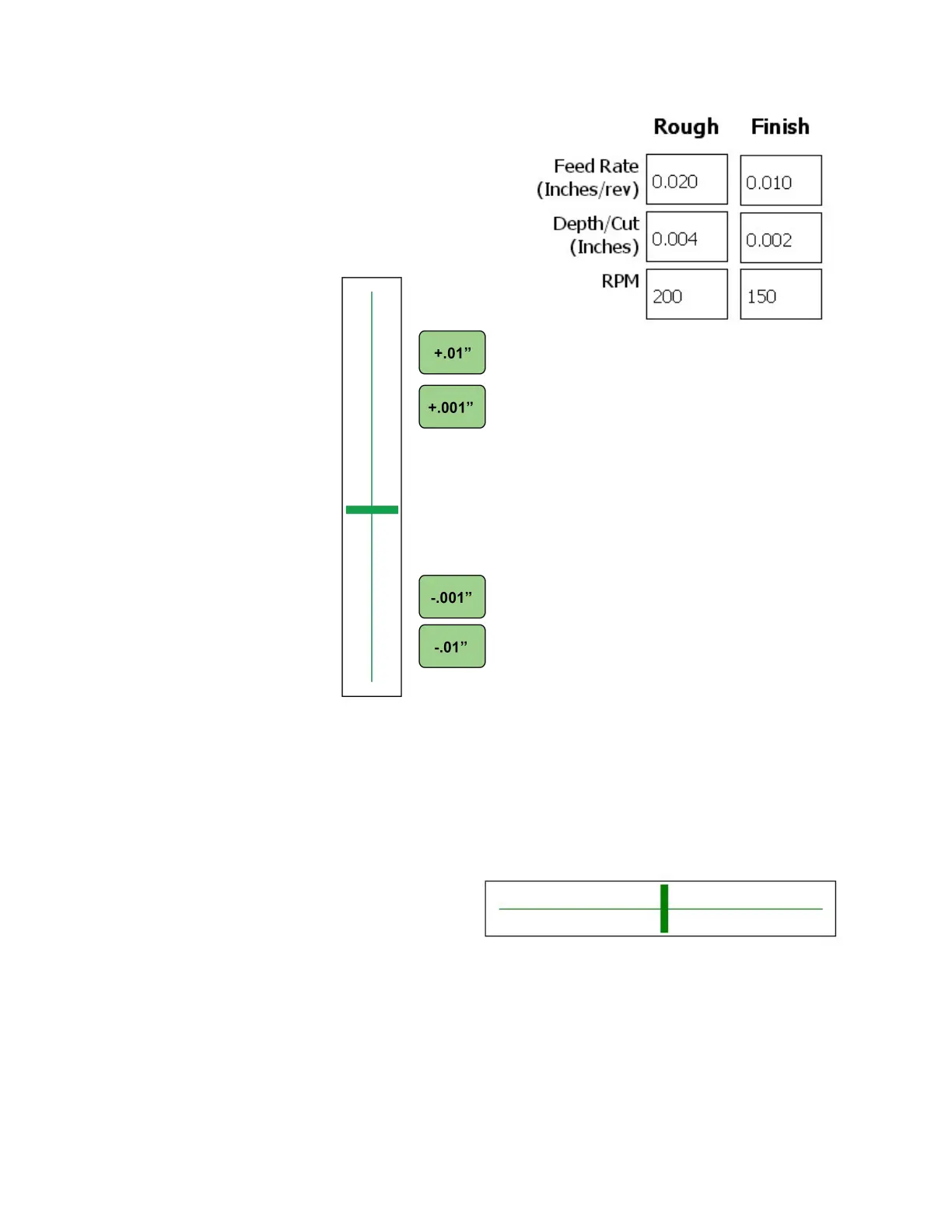

Rough and Finish Cut
Settings
This is where the Feed Rate
and Depth of Cut, along with
the RPM settings for rough
cut and finish cut are
programed.
Push the value box that you
want to program and a key
pad will appear so that the
value can be entered.
Vertical Feed
The slider will move the
spindle up or down. The
further the slider is moved,
the faster the spindle will
travel.
The buttons will move the
spindle up or down the
amount indicated. Holding
the button will move the
spindle in steps until the
button is released.
Horizontal Feed
The slider will move the carriage to the left or
right. The further the slider is moved, the faster
the carriage will travel.
