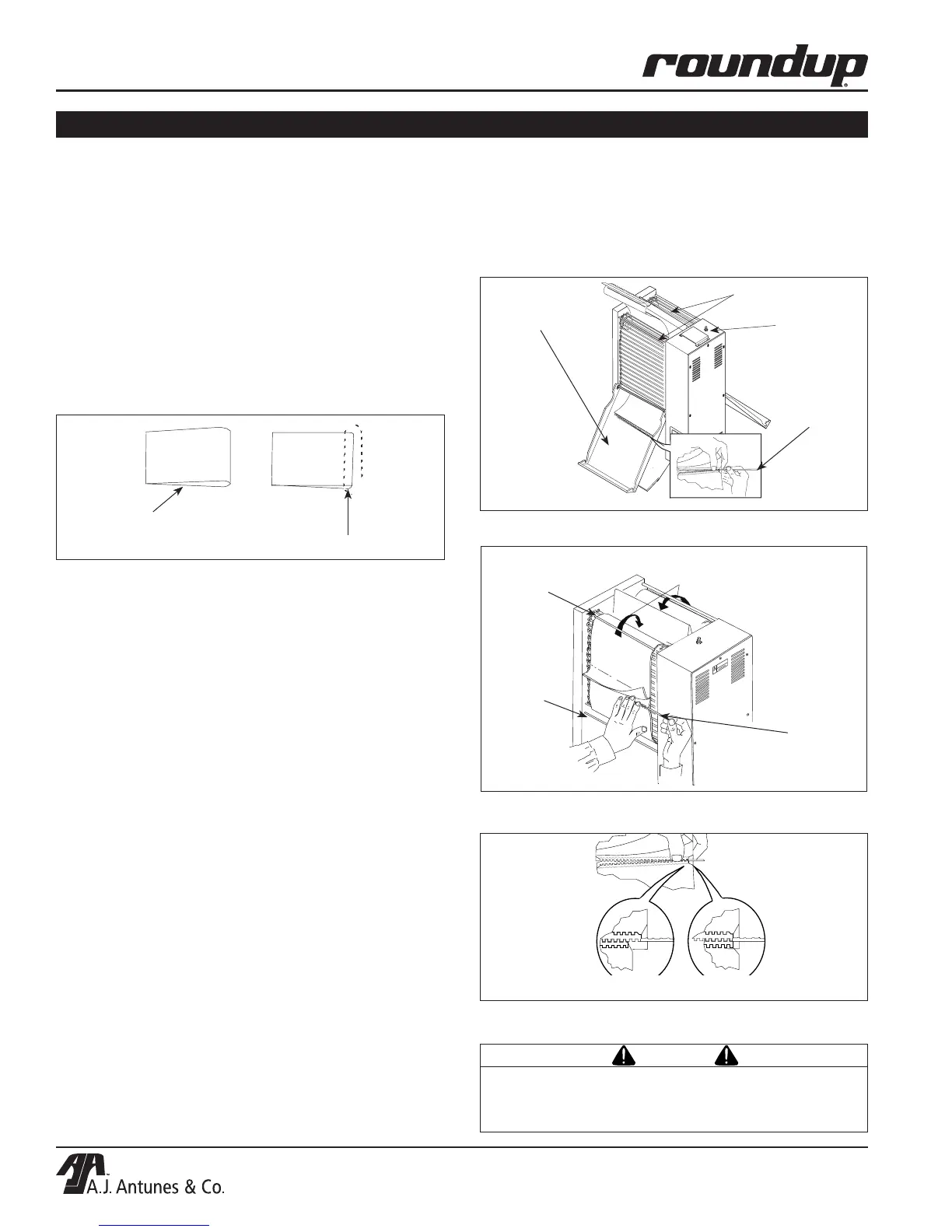

Roundup VCT-2000 - Replacing Release Sheets and Belt Wraps

VERTICAL CONTACT TOASTER
12
P/N 1010775 Rev. J 10/13
Burger King
Replacing Belt Wraps
(Every 3–6 Months)
NOTE: Depending on toaster usage and how well
they are cleaned daily, the black cleated Belt Wraps
should last between 3–6 months. Additional Belt
Wraps may be purchased from your Authorized
Service Agency.
NOTE: If you are installing the clip style belt wraps,
skip to the Addendum at the end of this manual for
installation instructions.
1. Turn the power off, unplug the power cord, and
allow the unit to cool before proceeding.
2. Remove the Bun Feeder and Heat Shield and set
the Compression Control Knobs to 6 and F.
3. Open both Conveyor Covers and pull the Belt
Wrap Pin out of the zipper (Figure 6).
4. Remove and discard the old Belt Wrap(s).
5. Clean both Conveyor Belt Chains just as you
would clean the Belt Wraps during daily cleaning.
6. Install the new Belt Wrap(s) around the Conveyor
Belt Chains inside the conveyor support rods
with the zipper flap exposed and hanging down
(Figures 6 & 7).
CAUTION
INCORRECT
CORRECT
Figure 6. Installing Belt Wrap
Figure 7. Aligning Belt Teeth
Belt
Wrap
Pin
Upper
Support
Rod
Lower
Support
Rod
CAUTION
Position the Belt Wrap UNDER the upper and
lower conveyor support rods or damage to the
unit may occur.
Figure 5. Removing Belt Wrap
Interlock
Switch
Conveyor
Cover Assy.
Belt Wrap
Pin
Replacing the Black and Silver Release
Sheet (Every 4–6 Weeks)
NOTE: Depending on toaster usage and on how
well it is cleaned daily, the black and silver Release
Sheet should last between 45–60 days.
1. Remove and discard the Release Sheet.
2. Lay a new Release Sheet on a clean, dry surface
and fold it in half lengthwise and gently crease it
at the fold using only your fingers.
3. Install the Release Sheet just as you would after
daily cleaning.
Fold over so
ends meet.
Press lightly
with finger to
form crease.
Conveyor Belt
Chains
MAINTENANCE (continued)
Figure 8. Folding the Release Sheet
7. Close the Conveyor Cover(s), set the Compression
Control Knobs back to their normal settings and
reinstall the Heat Shield and Bun Feeder.
