VERTICAL CONTACT TOASTER
8
P/N 1010775 Rev. J 10/13
Burger King
OPERATION
THICKNESS
THICKNESS
2 = 5/8" (15.9mm)
3 = 11/16" (17.5mm)
4 = 3/4" (19.0mm)
5 = 13/16" (20.6mm)
6 = 7/8" (22.2mm)
1 = 1/2" (12.7mm)
B = 3/4" (19.0mm)
F = 1" (25.4mm)
D = 7/8" (22.2mm)
E = 15/16" (23.8mm)
C = 13/16" (20.6mm)
A = 5/8" (15.9mm)
Figure 3. Bun Thickness Adjustment Controls
Operating Instructions
1. Set the Bun Thickness Adjustment Controls
(Figure 3) to desired setting.
NOTE: Recommended settings are “3” for heel and
“E” for crown.
2. Turn the power on and allow the toaster to warm-
up for 30 minutes before proceeding.
NOTE: The temperature display (Figure 2) will flash
“LO” until the toaster reaches its preset operating
temperature. When the toaster approaches the pre-
set temperature of 600°F (315°C), “USE” appears
in the temperature display and the unit is ready to
toast buns. If “USE” does not appear in the win-
dow after approximately 30 minutes, contact your
Authorized Service Agency.
3. Drop Crowns into the front slot and Heels into
the rear slot (Figure 2). Cut sides of heel and
crown must face each other.
4. Toasted buns will drop into the Bun Landing Area
(Figure 2).
5. Test at least 4 buns before putting the toaster into
service.
6. Turn the power off when finished toasting for the
day and proceed with the Daily Cleaning as out-
lined in the Maintenance section of this manual.
Temperature Adjustments
The VCT-2000 uses a Platen Heater and two Auxiliary
Air Heaters. The Platen Heater consists of a heating
element built into the Platen to toast the cut side of
the bun. The two Auxiliary Heaters assist in provid-
ing additional heat to the buns. The first Auxiliary Air
Heater is located between the conveyor in the front
of the toaster. The second Auxiliary Heater is located
between the conveyor at the rear of the unit.
RECOMMENDED TEMPERATURES
Recommended temperature setting for the platen heat-
er is 600°F (315°C).
Recommended temperature setting for the auxiliary
heaters is 400°F (204°C).
NOTE: The toaster is tested and shipped with the
heaters set to the recommended temperatures.
1
2
4
5
1 = 1/2"(12.7mm)
2 = 5/8"(15.9mm)
3 = 11/16"(17.5mm)
6 = 7/8"(22.2mm)
THICKNESS
THICKNESS
1
2
3
4
6
6
5
4 = 3/4"(19.1mm)
5 = 13/16"(20.6mm)
3
Bun Thickness
Adjustment Control
(See Figure 3)
Bun Landing Area
Power
Switch
Temperature
Controls
& Temperature
Display
Hi-Limit
Reset
Power
Cord

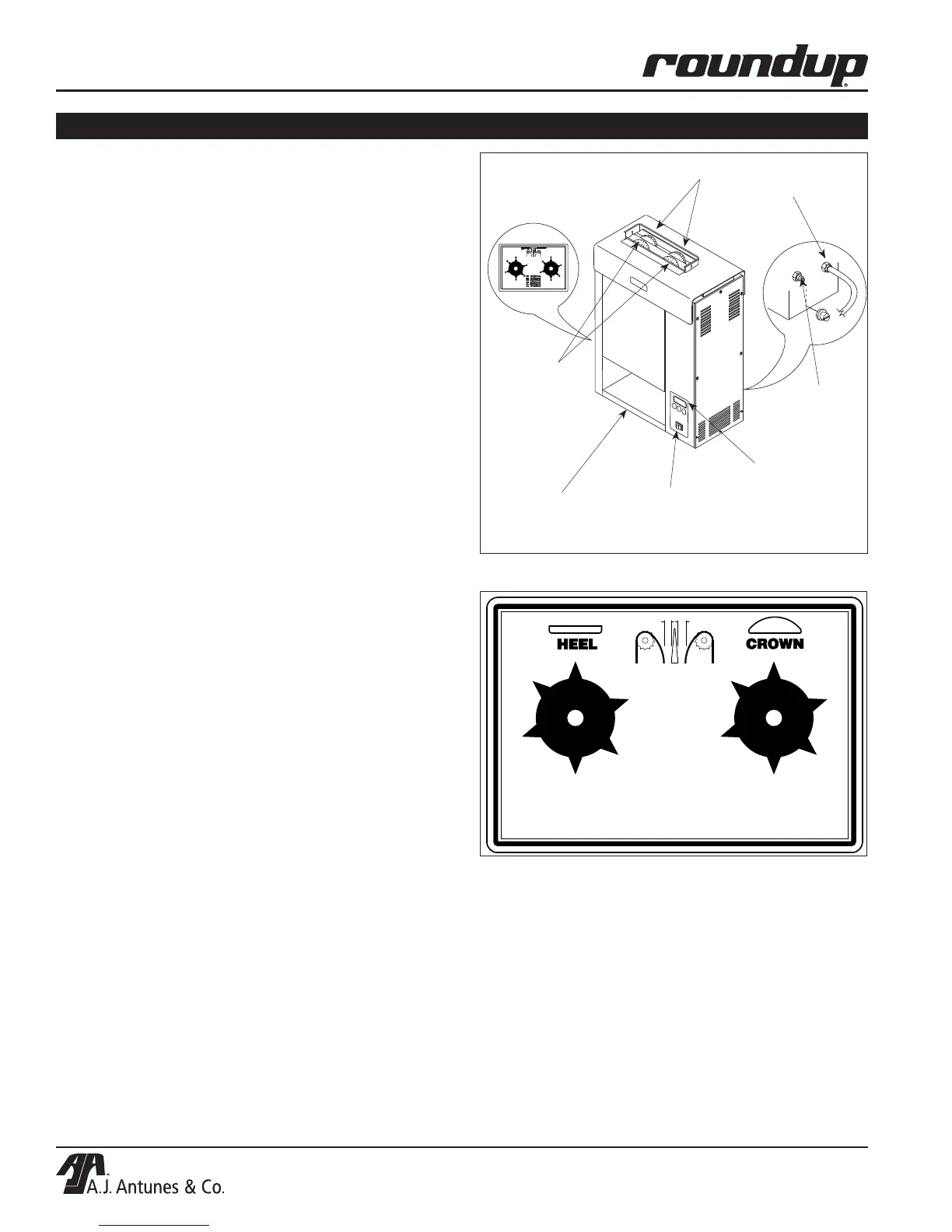

Figure 2. VCT-2000 Toaster
Heels
Crowns
