VERTICAL CONTACT TOASTER
24
P/N 1010775 Rev. J 10/13
Burger King

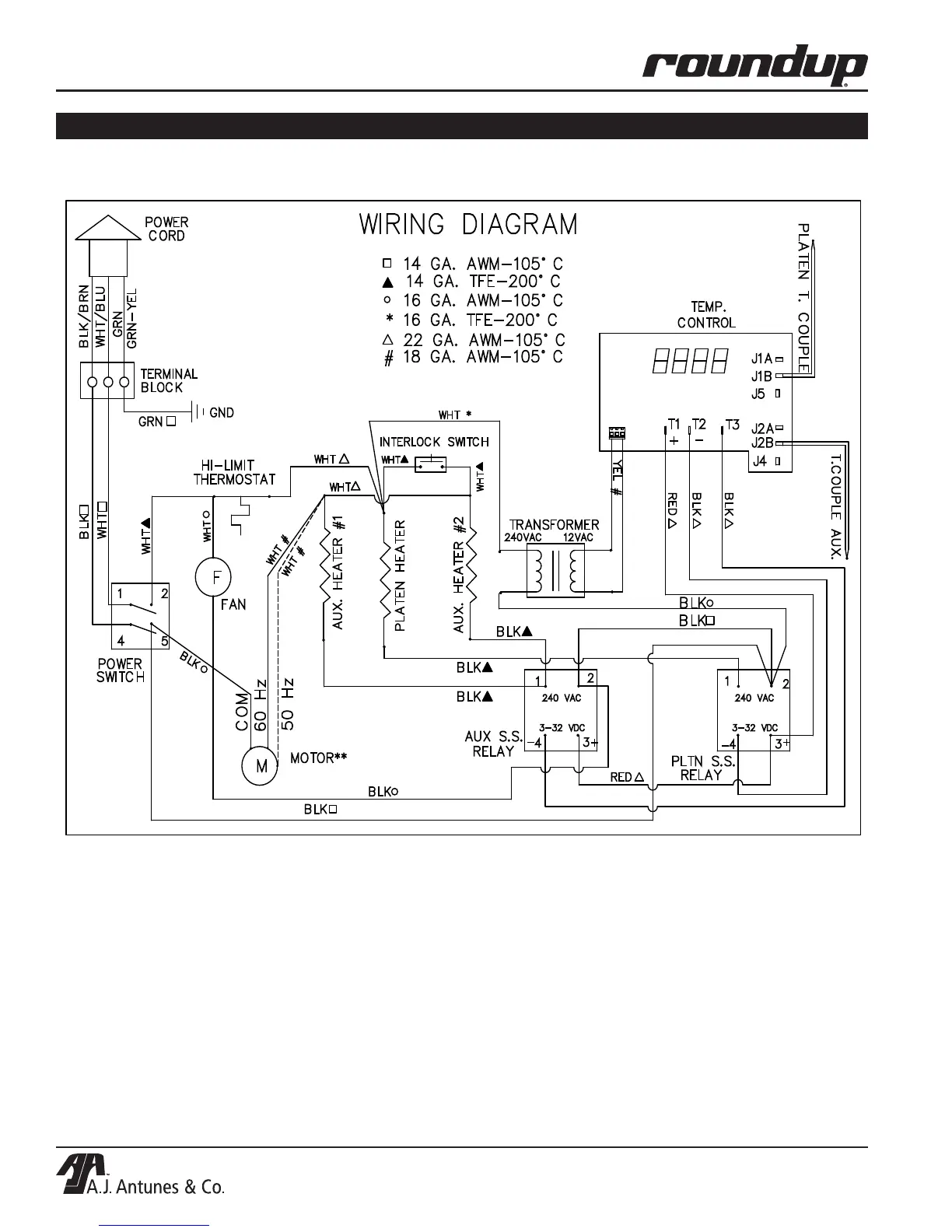

WIRING DIAGRAM
**MOTOR CONNECTIONS: 50hz requires
male to male adapter (not included).
