OPC90 Server
7.28 Sequence of Events (SOE)
The SOE OPC90 block is used to monitor and retrieve sequence of events data
from Bailey Sequence of Events Log blocks (function codes 99 and 243).
OPC90 supports up to four ABB Bailey sequence of events recorders by allowing
definition of four SOE point sets. Each point set consists of 512 points. The
Edit->SOE Point Names menu selection is used to define the SOE point sets.

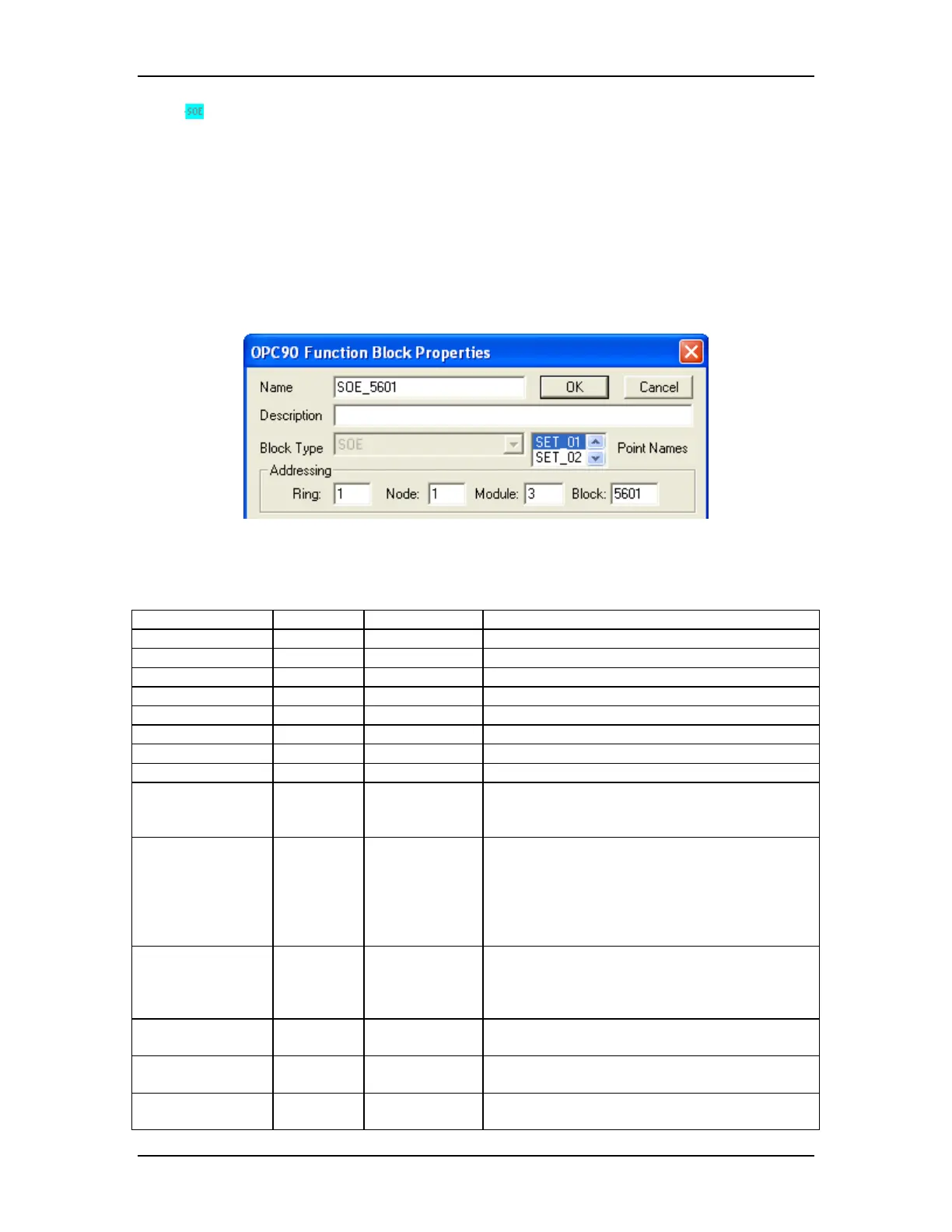

Configuration of this block includes selection of the SOE point name set it is to be
associated with.
Restrictions: This OPC90 block can be utilized with all Bailey interface types
except serial port module (SPM & CPM02).
TAGNAME TYPE ACCESS DESCRIPTION
ADDR_RING VT_I2 Config/Read Bailey ring address.
ADDR_NODE VT_I2 Config/Read Bailey node address.
ADDR_MODULE VT_I2 Config/Read Bailey module address.
ADDR_BLOCK VT_I2 Config/Read Bailey block address.
MESSAGE VT_BSTR Read Provides the block operational message.
TAG VT_BSTR Read Provides the block name.
TAGLONG VT_BSTR Read Provides the block long OPC path name.
TAGDESC VT_BSTR Read Provides the block descriptor.
BLOCK_TYPE VT_BSTR Read Type of SOE log block (‘Undefined’,
‘Standard’, ‘Summary’, ‘Pre-fault’, ‘Post-fault’
and ‘Snap-shot’).
QUALITY VT_BOOL Read Current quality of Bailey sequence of events
recorder (0-good, 1-bad). A value of 0
indicates good, otherwise the point address is
wrong, the Bailey controller is not
communicating with the RA-3800 SER or
INSEM01 module.
SOE_DATA VT_BOOL Read/Write Indicates whether or not the SOE block has
newly captured SOE data present (0 – empty
waiting for a capture event, 1 – capturing
data).
OFLOW VT_BOOL Read The SOE data overflowed the Bailey SOE
block buffer capacity.
COUNT VT_I4 Read Total points logged to the currently selected
SOE capture file.
EVENT VT_BOOL Read/Write Signals that a SOE event has been captured
(0-armed and waiting, 1-captured and locked).
The RoviSys Company Version 7.0 Page 108
