Wireless Router Reception
The GrandSTAR jukebox is equipped with a Wireless Router to allow you to use the Merit™ game
connection for song selection.
The jukebox is shipped to you with the Wireless Router Antenna in the horizontal position. In some
interference prone locations, the Antenna is more effective in the vertical position. The hole in the
top of the cabinet adjacent to the Router is to accommodate this option. See Figure 2-8.

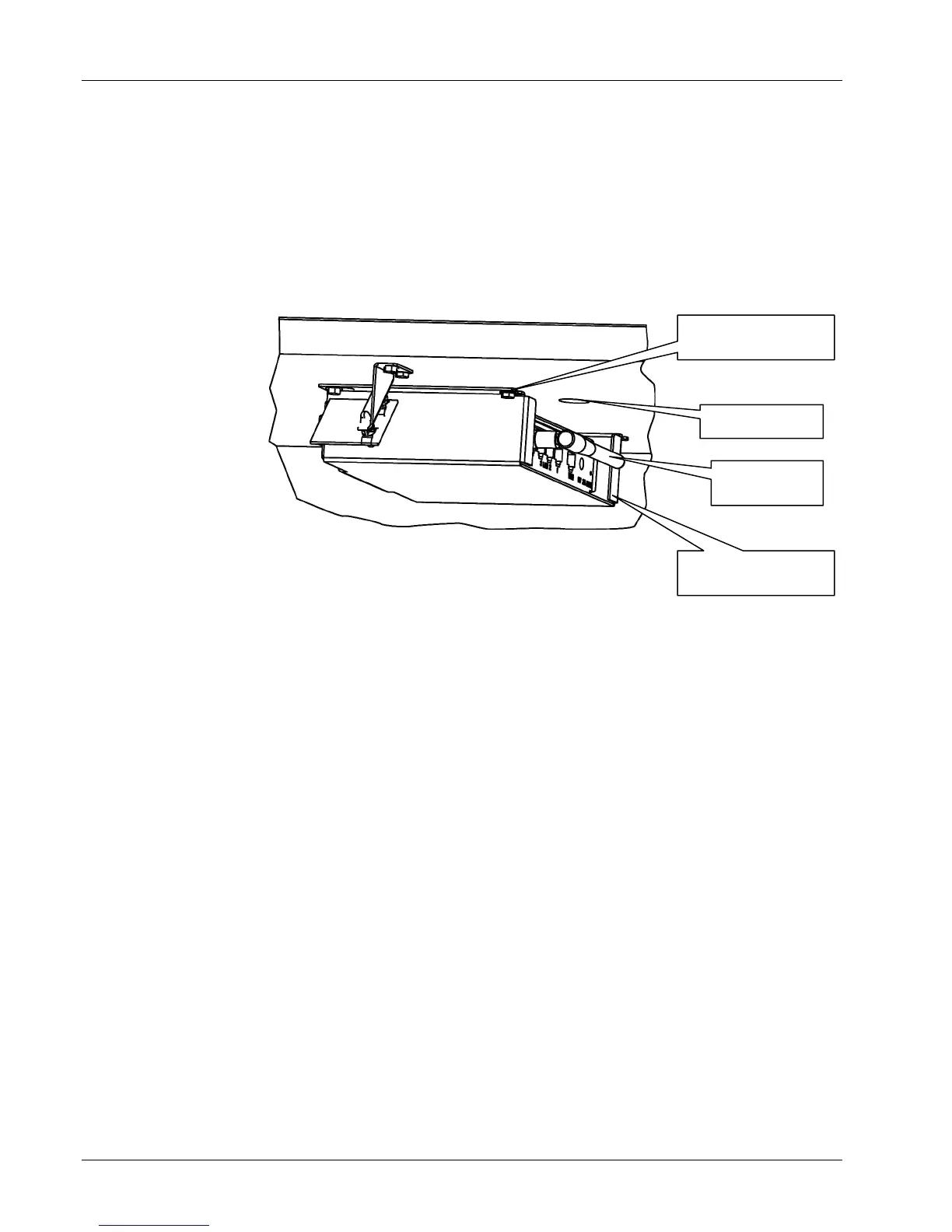

Figure 2-8 - Wireless Router Antenna in Horizontal Position
ROUTER MOUNTING
SCREWS
ROUTER MOUNTING
BRACKET
ANTENNA HOLE
WIRELESS
ANTENNA
To Next Page
