Parts Catalog GrandSTAR Internet Jukebox
8-14 22022603

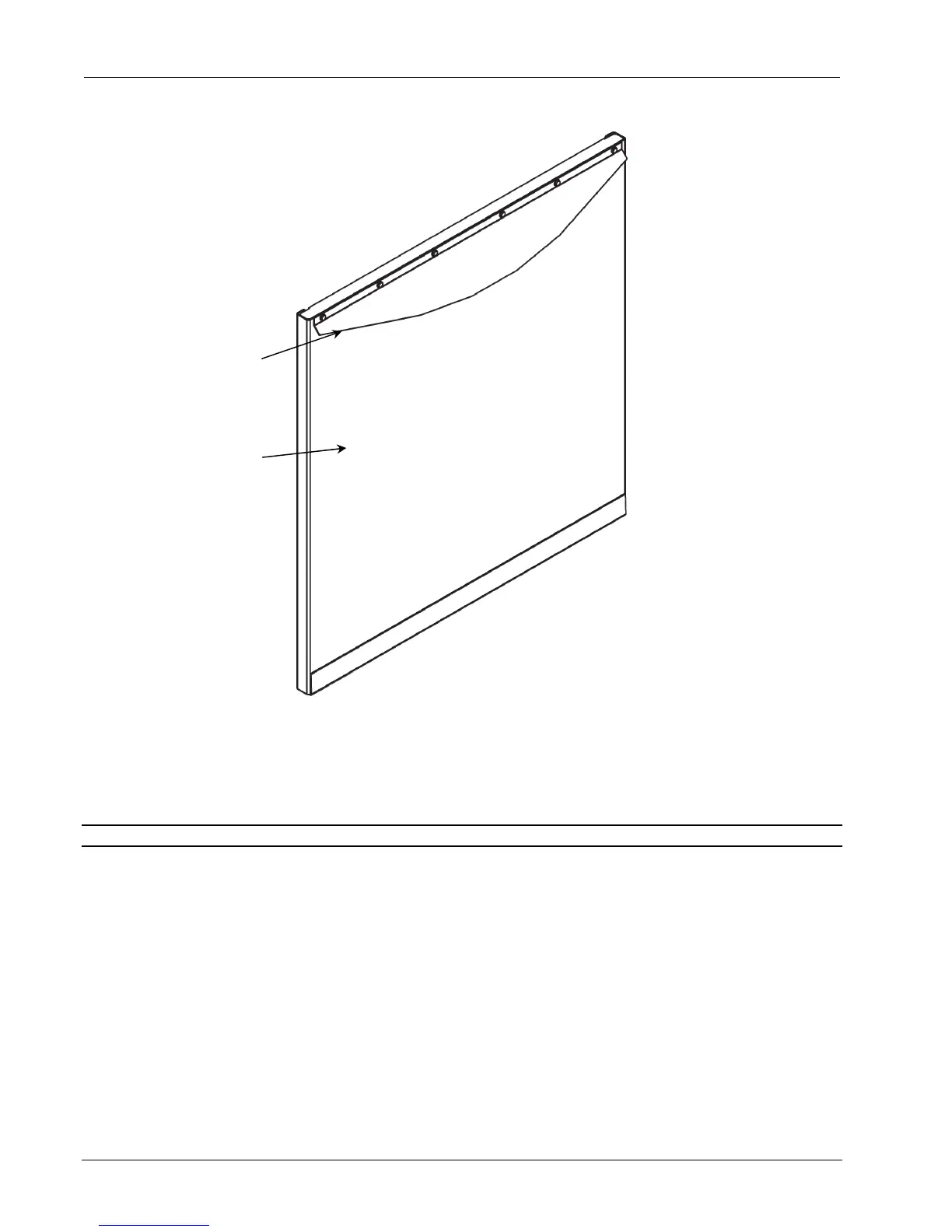

Figure 8-6 – Lower Door Assembly (External View)
Lower Door Assembly (External View)
Refer to Figure 8-6.
Ref. Part No. Description Qty
61184501 Lower Door Assembly - Gold (Red GS-1) ................................................. Ref.
61184502 Lower Door Assembly - Silver (Black GS-1) ............................................. Ref.
1 61184701 Bracket - Security, Lower Door ....................................................................... 1
2 61184901 Grill - Lower Door - Gold (Red GS-1) ............................................................. 1
61184902 Grill - Lower Door - Silver (Black GS-1) ......................................................... 1
1
2
To Next Page
