GrandSTAR Internet Jukebox Parts Catalog
22022603 8-15

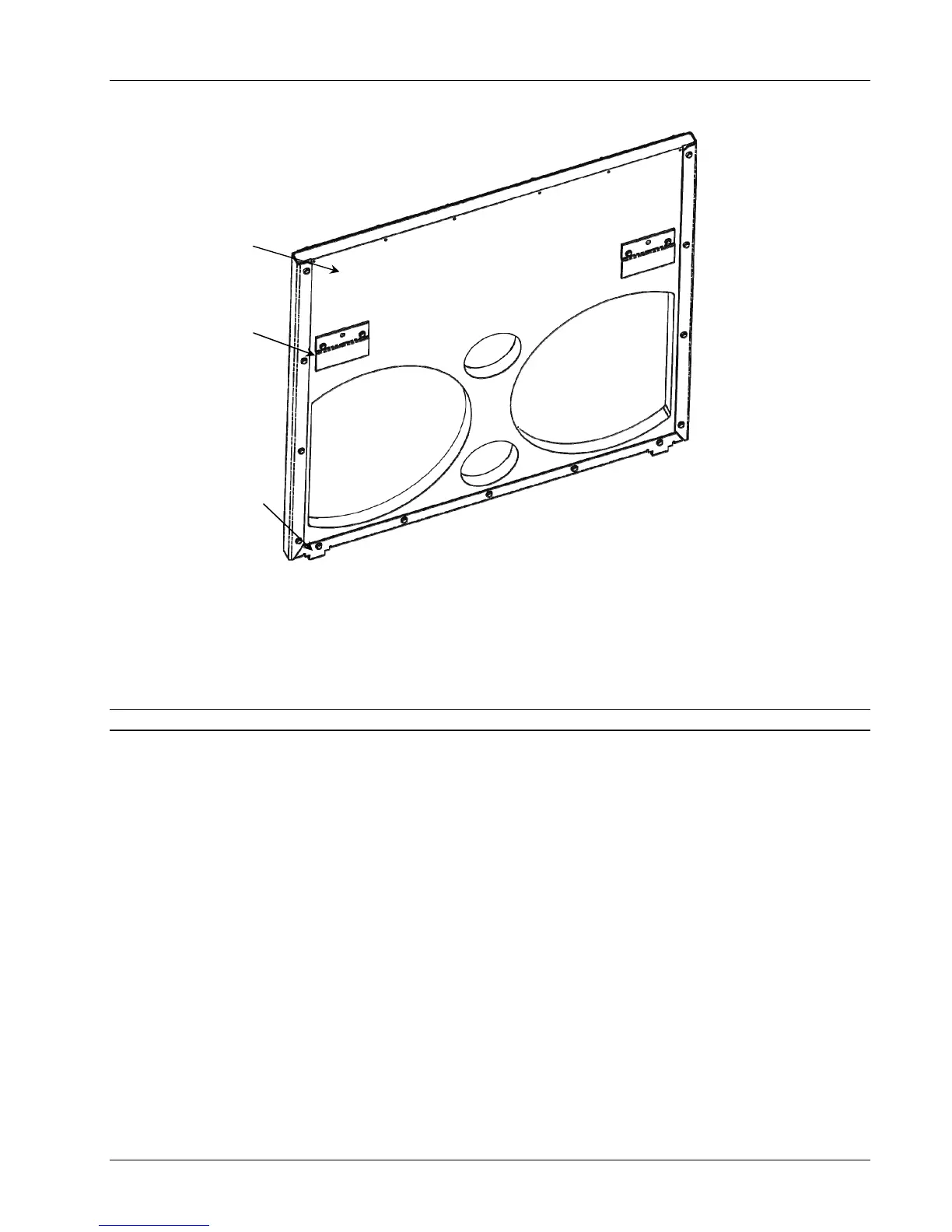

Figure 8-7 – Lower Door Assembly (Internal View)
Lower Door Assembly (Internal View)
Refer to Figure 8-7.
Ref. Part No. Description Qty
61184501 Lower Door Assembly - Gold (Red GS-1) .................................................. Ref.
61184502 Lower Door Assembly - Silver (Black GS-1) .............................................. Ref.
1 61184801 Panel - Lower Door ......................................................................................... 1
2 30936601 Bracket - Guide (Hinge) .................................................................................. 2
3 40931401 Trim - Lower Door ........................................................................................... 1
1
3
2
