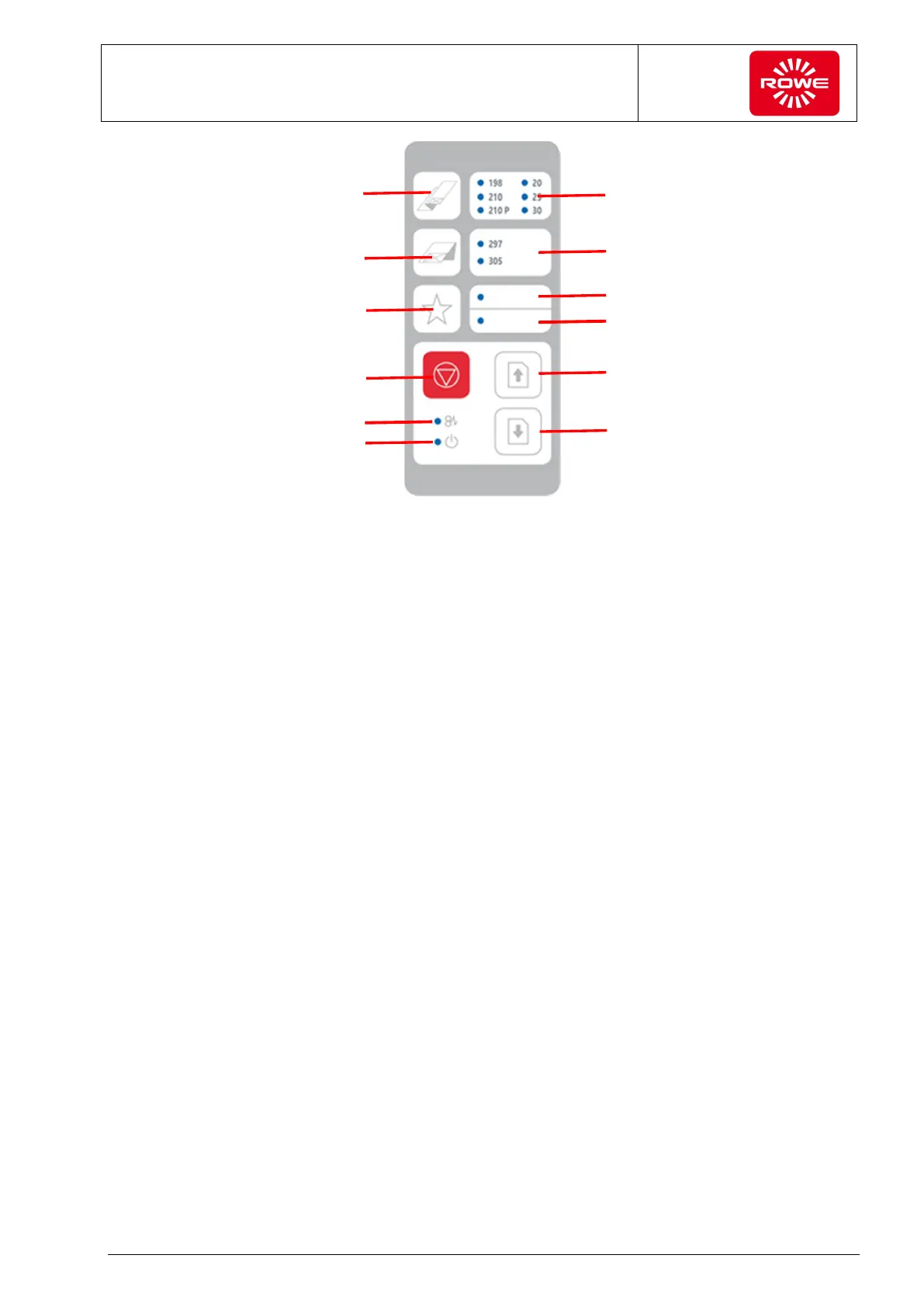

VarioFold Compact Control Panel Metric
The following functions can be selected on the control panel::
1 Fan folding program key (select by repeatedly pressing the
key until the LED illuminates next to the required program)
2 Cross folding program key (select by repeatedly pressing the
key until the LED illuminates next to the required program)
3 Favorite key via FOLD APP SE and PRO, can be assigned up
to 4 custom folding programs (select by repeatedly pressing
the key until the LED illuminates next
to the required favorite). **
4 Stop key (stops folding process)
5 Forward paper clearing (output to rear delivery tray)
6 Reverse paper clearing (output to front delivery tray)
7 Display selected fan folding program
The following fan folding programs have been predefined:
- 198 -> Fan folding with 198 mm (for file fasteners)
- 210 -> Fan folding with 210 mm
- 210P -> Package Fan folding with 210 mm
- 20 -> Fan folding with 190 mm and 20 mm filing
margin *)
- 25 -> Fan folding with 185 mm and 25 mm filing
margin *)
- 30 -> Fan folding with 180 mm and 30 mm filing
margin *)
*) In the online configuration, folded documents may only be
output to the front delivery tray.
**) If the motorized high volume tray is present, pressing and
holding the button moves the tray to the lower position
(removal position)
8 Display selected cross folding program
The following cross folding programs have been predefined:
- 297 -> Cross folding with 297 mm
- 305 -> Cross folding with 305 mm
1
2
3
4
