SECTION B:
ASSEMBLY TERMINOLOGY, TERMS AND PHRASES
All Rowse Ultimate V-Rakes with which this
section deals with are completely set up and eld
ready. However, occasionally throughout this manual
references are made to specic areas of the V-Rake.
The following are explanations
of these terms and phrases:
A. “Right” or “Left” — As viewed from behind the
machine, looking in line of it’s forward travel.
B. “Front” or “Rear” of the rake — The “Front” is the part
closest to the tractor.
C. “Inside”, “Outside” or “Outward” — The “Inside” is the
side closest to the center of the rake. “Outside” is the
side furthest from the center, “Outward” is moving
from a point from center.
D. “Straight” or “Straighten” — Position parallel to the
line of travel (Usually referring to transport position).
E. “Toe-in” or “Toe-out” — “Toe-in” is turning the center
positioning wheels inwardly. “Toe-out” is turning the
center positioning wheels outwardly to a straight
position.
NOTE: Wings and Kicker Wheels are in
a “straight” position.

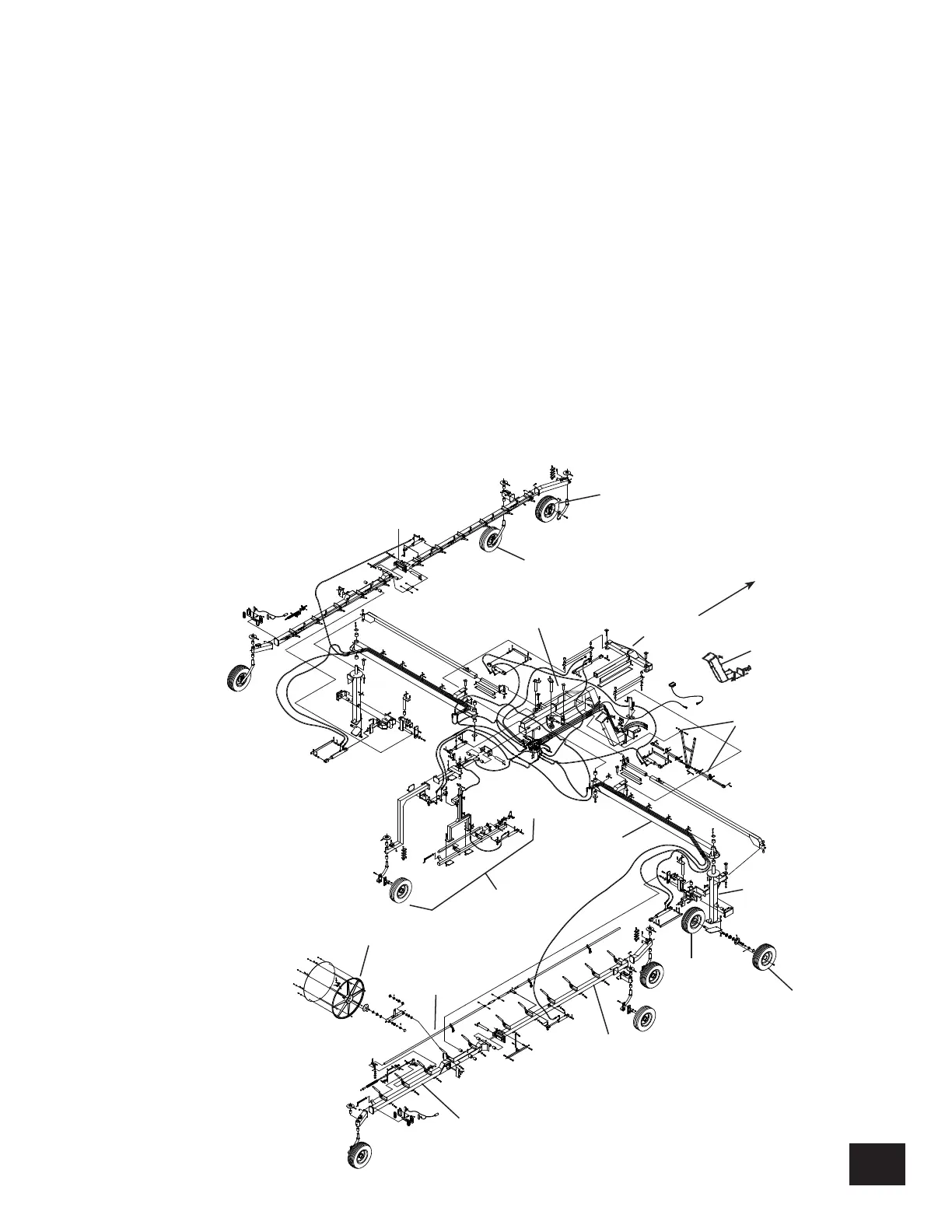

Shown below is the overall view of the complete v-rake with the terminology used to describe major areas.
FRONT
Hinge Wing
Left Front Wheel
Opt.
Front Wing Castor
Platform
Tee
Stabilizer Bars
Arm
Leg
Inside Center
Positioning Wheel
Outside Center
Positioning Wheel
Front Wing
Right Rear Wing
Lift Tube
Raking Wheel
Kicker Wheels
Tongue
