4
1/4” 6 10 14
5/16” 12 19 27
3/8” 23 35 50
7/16” 35 55 80
1/2” 55 85 120
9/16” 75 130 175
5/8” 105 170 240
3/4” 185 300 425
7/8” 175 445 685
1” 270 675 1,030
1 1/8” 375 910 1,460
1 1/4” 530 1,250 2,060
A

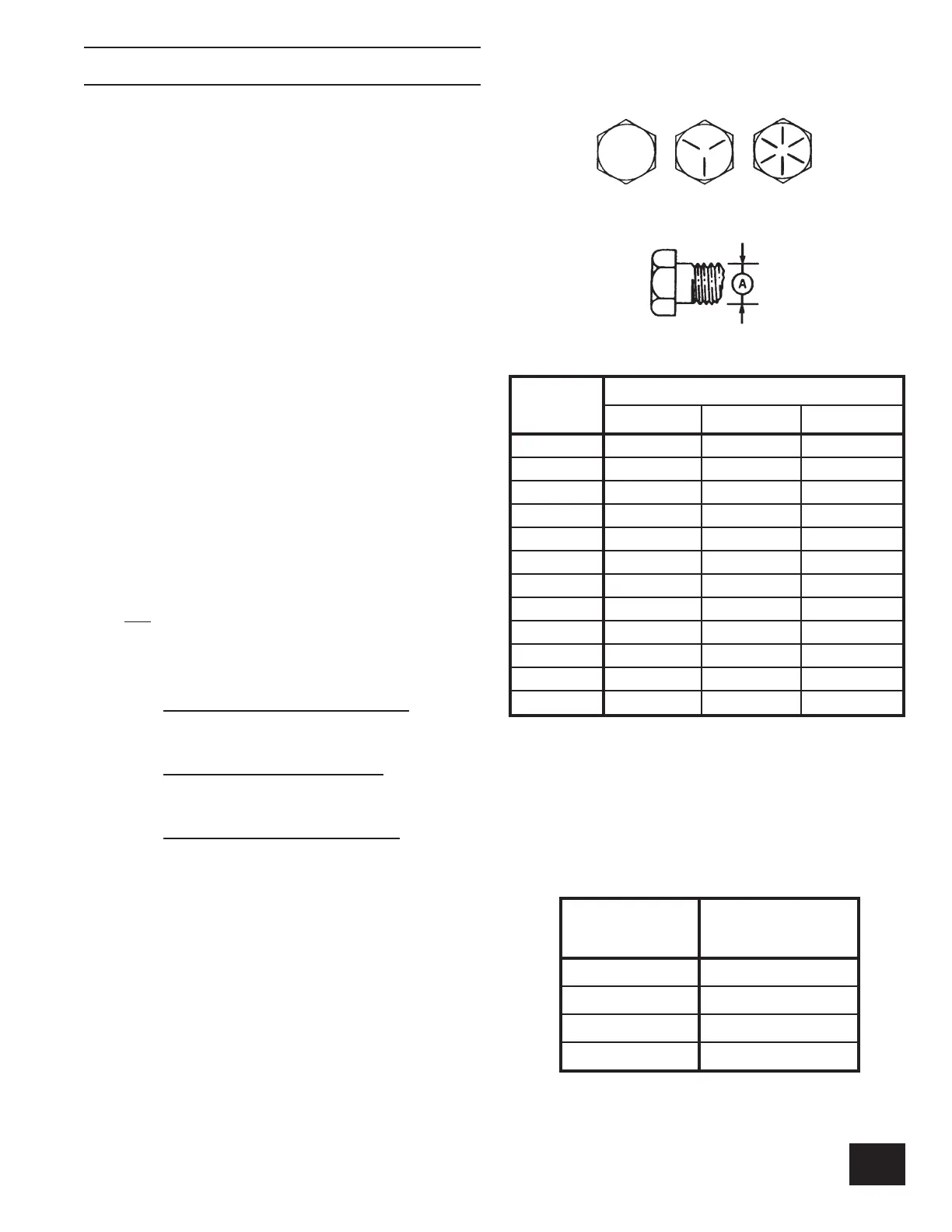

Bolt Torque Information
1. Tighten bolts to torques shown in the chart unless
otherwise specied.
2. Bolts having locknuts with cadmium or wax nish
should be tightened to approximatley 50% of
amounts shown on charts.
3. Locknuts should be Grade C.
4. Over tightening bolts can cause as much damage
as under tightening. Tightening a bolt beyond the
recommended range can reduce its shock load
capacity.
5. Check and retighten all bolts, nuts, and set screws:
a) After initial 10 hours of use,
b) And again after every 50 hours of use.
TIRE INFLATION PRESSURES
1. Proper tire ination is important for safe and ecient
operation of the Ultimate Rake.
2. The recommended tire ination pressures are listed
in A-6.
Figure A6: Recommended Tire Pressures
Castor Wheels Front and Rear
9.5L x 15 ......................32 PSI
Center Positioning Wheels
11L x 15 .......................45 PSI
Optional Front Wing Castors
ST225/75 R15 ............25 PSI
Figure A-7: Bolt Grade Designation
SAE-2 SAE-5 SAE-8
Figure A-8: Bolt Torque Information
A = Bolt Diameter
Bolt
Diameter
BOLT TORQUE in Ft-Lbs
SAE 2 SAE 5 SAE 8
Figure A-9: Recommended Torque for
Hub Bolts and Nuts.
NOTE: Do NOT overtorque.
Retorque after one hour.
Thread Recommended
Size Torque (Ft-Lbs)
1/2-20 UNF 80 - 90
9/16-18 UNF 110 - 120
5/8-18 UNF 125 - 135
3/4-16 UNF 275 - 285
