FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-21

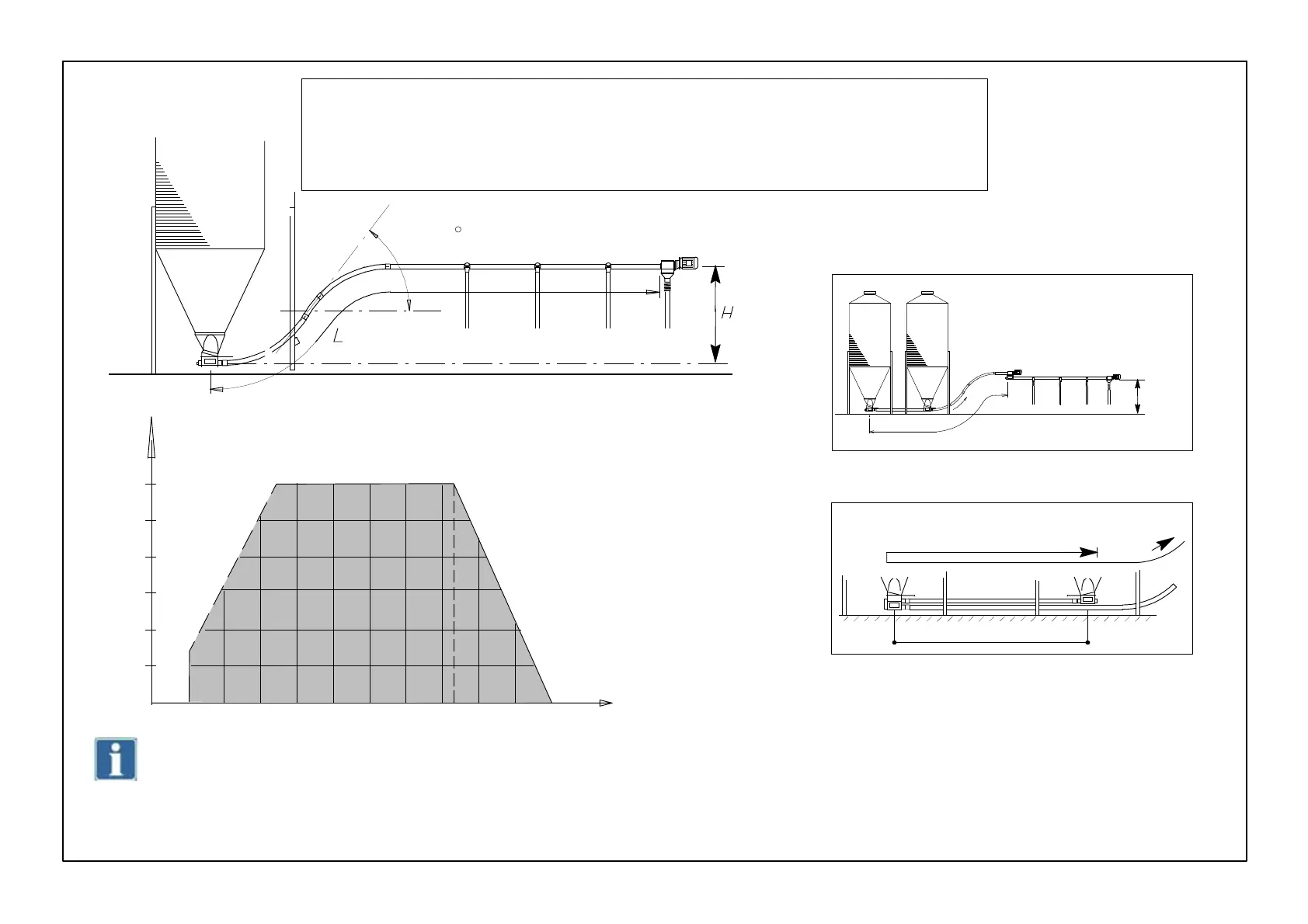

GRAPH WITH MAXIMUM LENGTHS - MODEL 125 - 33M
0 3 6 9 12 15 18 21 24 27 30 33 36
1
2
3
4
5
6
(m)H
L(m)
MAX. 45
For lines (with tandem) longer than 10m (32,8FT.) : use an extra power unit.
Graph is for one bin only !!!
This graph is correct for the second part of the Flex-Auger.
FIGURE 23.
Max. 3m.
3m max.
10m max.
L
*Seealso
page I-58.
The first extra elbow (45) reduces the maximum length with 3 meters. The followiing extra elbows with 4,5 m.
All lengths within the graph are allowed. If dimentions pass the graph limits, use an extention boot, and consider the system as two separate
Flex-Augers Model 125
For return tandem
For tandem*
