Roxell FLEX-AUGER FA 55 - Extension Boot Cover Mounting Kit - Ø90; Extension Boot Cover Mounting Kit Ø125 - 03001227

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-67
4
4
3
2
1
5
6

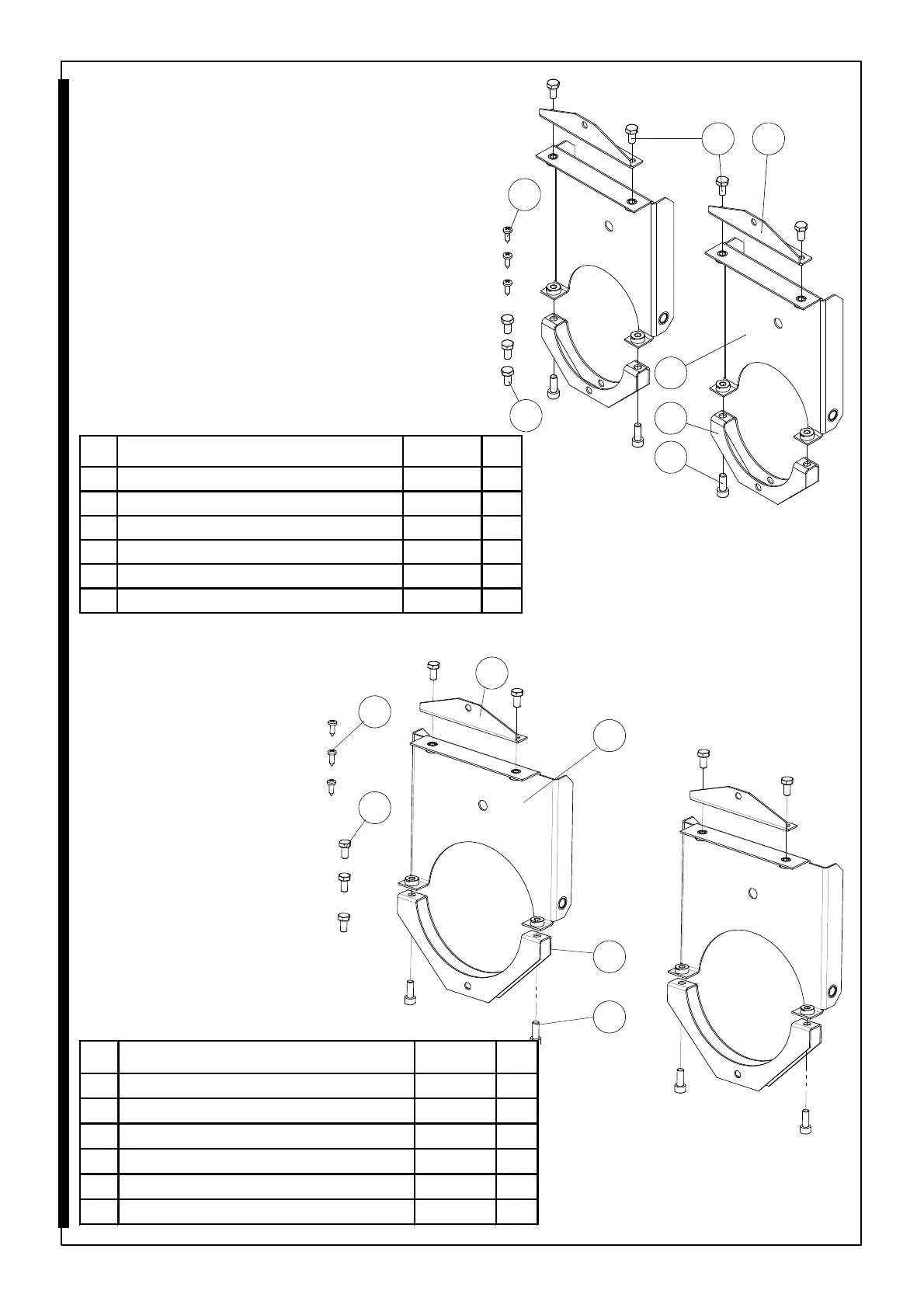

EXTENSION BOOT COVER MOUNTING
KIT Ø90 - 03000906
Key Name Part Nr. Qt.
1 COVER HOLDER - LONG Ø90 13008115 2
2 TUBE CLAMP HALF DIA. 90 FRONT 14900906 2
3 SOCKET CAP SCREW M6 x 16 - DIN 912 20101812 4
4 BOLT M6 X 12 - DIN 933-8.8 20100160 24
5 PARCKER SCREW 8 X 1/2" 20100525 3
6 COVER SUSPENSION PLATE 13000666 2
EXTENSION BOOT COVER MOUNTING KIT Ø125 - 03001227
4
3
2
1
5
6
Key Nam e Part Nr. Qt.
1 COVER HOLDER - LONG Ø125 13703060 2
2 TUBE CLAMP HALF DIA. 125 FRONT 13703196 2
3 BOLT M6 X 12 - DIN 933-8.8 20100160 7
4 SOCKET CAP SCREW M6 x 16 - DIN 912 20101812 4
5 COVER SUSPENSION PLATE 13000666 2
6 PARCKER SCREW 8 X 1/2" 20100525 3
