Roxell FLEX-AUGER FA 55 - Double Intake Boot Fa 90-Fa55 - 03000593

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-31
Key Name Part Nr. Qt. Key Name Part Nr. Qt.
1 A NCHOR & BEA RING A SS'Y FA 55 13502299 1 2.10 SEEGER RING Ø17X1 20101333 1
1.1 BEARING 17X35X10 - 6003 LLU 13201066 1 2.11 SPACER 13200134 2
1.2 SEEGER RING Ø17X1 20101333 1 2.12 LOCKNUT M6 - DIN 985 20100400 2
1.3 BOLT M6X12 - DIN 933-8.8 20100160 2 2.13 BOLT M6X12 - DIN 933-8.8 20100160 2
1.4 LOCKNUT M6 - DIN 985 20100400 2 3 DOUBLE BOOT & CLOSING PLATE FA90-FA55 13000963 1
1.5 SHAFT FA 55 WELDMENT Ø22 - LG=274MM 13502331 1 3.1 DOUBLE BOOT WELDMENT FA90-FA55 13000930 1
1.6 BEARING HOLDER CAP UP - Ø56 13502265 1 3.2 CLOSING BOLT - BRASS SMAL 13108154 1
1.7 BEARING HOLDER CAP DOWN - Ø56 13502273 1 3.3 CLOSING PROFILE 13107768 1
1.8 TUBE CLAMP ASS'Y Ø63 13601661 1 3.4 NUT M10 - DIN 934 20100277 1
2 A NCHOR & BEA RING A SS'Y FA 90 13204011 1 3.5 FIBER RING 20104287 1
2.1 A NCHOR & BEA RING SHA FT FA 75- 90 13109731 1 3.6 E-RING Ø5- DIN 6799-A 2 S.S 20102018 1
2.2 A NCHOR TUBE WELDMENT Ø44 13201769 1 3.7 CLOSING PLA TE 13107776 1
2.3 RESTRICTOR Ø44 13201744 1 3.8 GASKET 15X2 30800874 1
2.4 BEARING 17X35X10 - 6003 LLU 13201066 1 3.9 ROXELL DECAL - 160X40 10101129 1
2.5 SET SCREW M8X10 - DIN 916 20100434 3 3.10 DECAL - HANDS WARNING 13106596 1
2.6 HOSE CLAMP Ø80 - 100MM 03200250 1 3.11 HARDWARE KIT 13108055 1
2.7 BEARING HOLDER CAP UP - Ø90 13203781 1 3.11.1 NUT M8 DIN 934 - SP 20200119 4
2.8 BEARING HOLDER CAP DOWN - Ø90 13203799 1 3.11.2 RUBBER CAP M8 16103699 4
2.9 CLA MP PIN 13100482 1 3.11.3 KNURLED KNOB 13107842 1
3.11.4 SOCKET CAP SCREW M8X25 - DIN 912 20101978 4

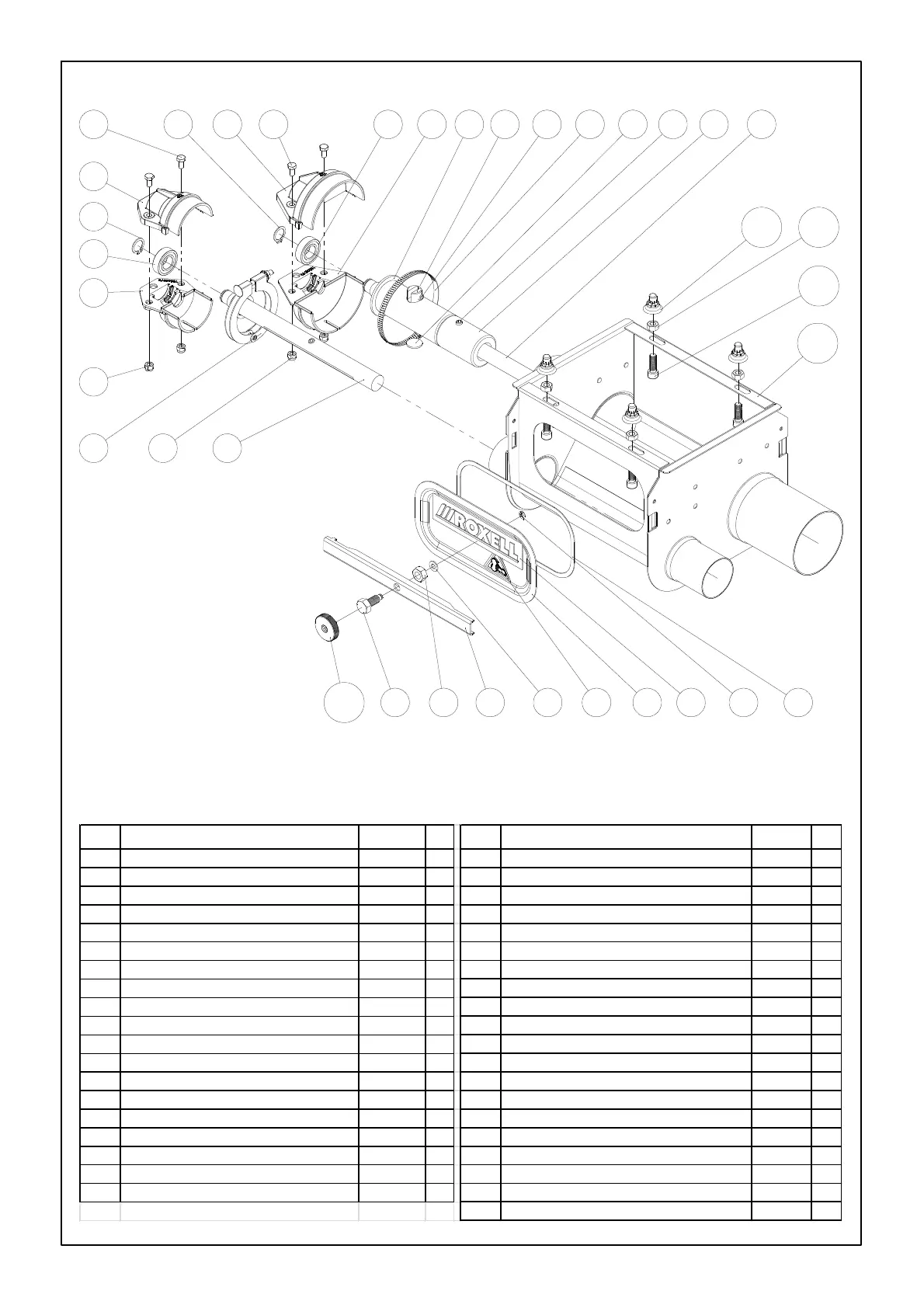

DOUBLE INTAKE BOOT FA 90-FA55 - 03000593
1.6
1.3
1.2
1.1
1.7
1.4
2.121.8 1.5
2.132.72.10 2.4 2.8 2.2 2.9 2.5 2.3 2.1
3.11.3 3.2 3.33.4 3.5 3.7 3.93.10 3.83.6
3.11.2 3.11.1
3.11.4
3.1
2.112.62.5
