Roxell FLEX-AUGER FA 55 - Excentric Drop Assy - Modul. Control Unit. - 04905402

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-45

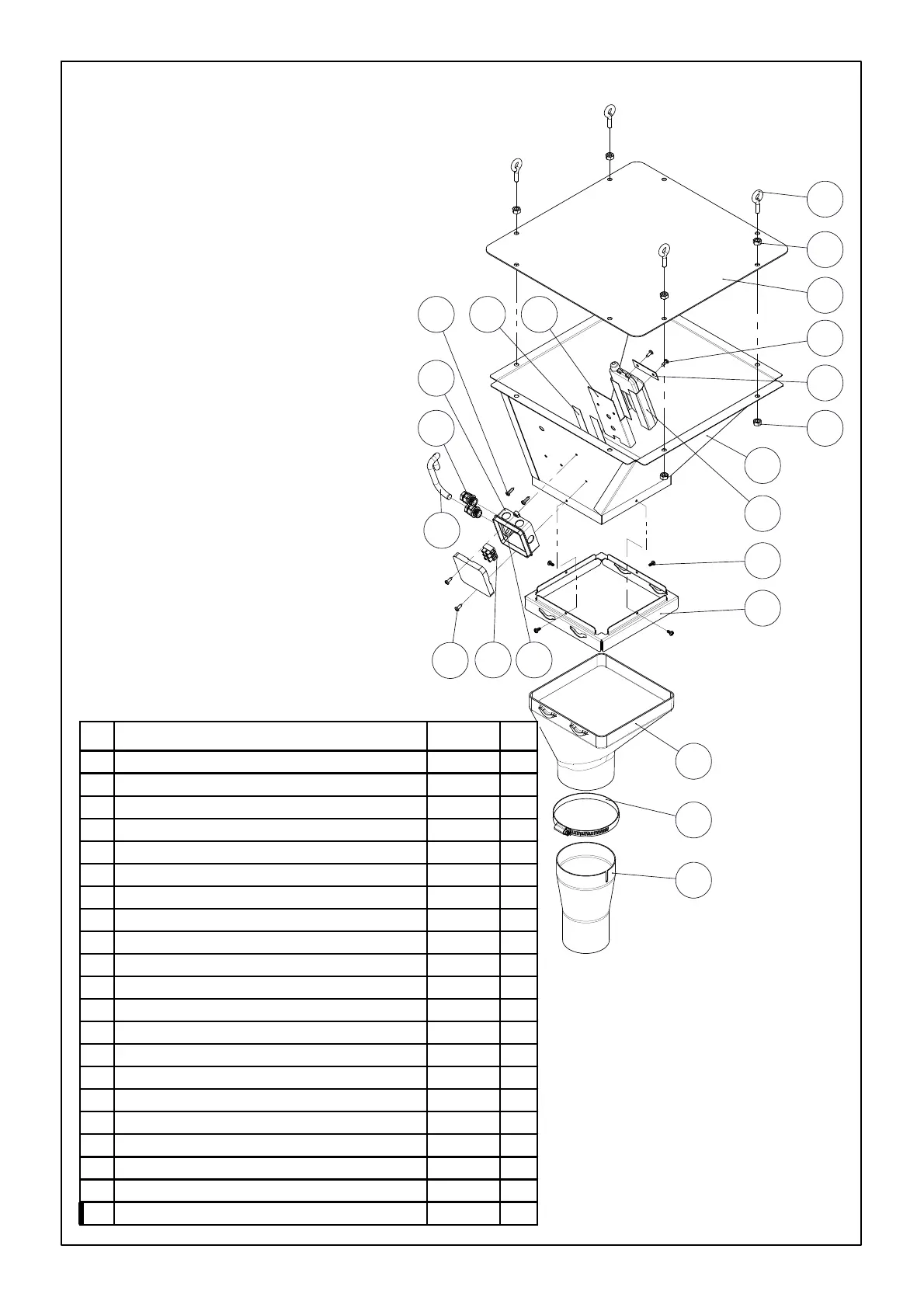

EXCENTRIC DROP ASS'Y - MODUL. CONTROL UNIT. - 04905402
16
3
2
4
3
1
14
15
20
21
19
18
4
12 11
10
13
9
5
8 7
17
Key Name Part Nr. Qt.
1 EXCENTRIC DROP - MODULAR CONTROL UNIT 14915938 1
2 COVER FUNNEL 14903553 1
3 NUT M8 DIN 934 - SP. 20200119 2
4 PARCKER SCREW 8 X 1/2" 20100525 1
5 SWITCH CONNECTION STRIP 13105259 1
6 SAFETY SWITCH ASS'Y 13104567 1
7 SWITCH SUPPORT 10203107 8
8 ADHESIVE TAPE 19X0.23-2SIDE 30800726 2
9 PARCKER SCREW 4.2 X 16 - DIN 7981 - A2 20102331 8
10 CABLE RING PG 9 15001472 4
11 CABLE RING HOLDER (2xPG9) 15010119 1
12 CLAMP STROKE 27 20 6E/3 10103109 1
13 HANDY BOX OBO A8 15000037 1
14 MINIMUM SWITCH SHIELD 10203115 2
15 PARCKER SCREW 4.2x9.5 DIN 7981FH 20103859 2
16 EYEBOLT M8X20 20100715 2
17 SWITCH CORD GUARD 13104369 1
18 REDUCTION PIECE ø104.5-85 MM 00703074 1
19 HOSE CLAMP ø90-110 00105726 1
20 CONNECTION PLATE FOR DROP 14915110 1
21 DROP FOR DROP TUBE Ø110 13702988 1
