Roxell FLEX-AUGER FA 55 - Control Unit Fa 90 - 03202496

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-12
Key Nam e Part Nr. Qt. Key Name Part Nr. Qt.
1 DROP FOR DROP TUBE Ø85 13203815 1 13 PARCKER SCREW 8X1/2" 20100525 2
2 HOUSING - CONTROL UNIT Ø89 13203807 1 14 MINIMUM SWITCH SHIELD 10203115 1
3 HANDY BOX IPW AX4-IP55 15009814 1 15 NUT M4 20100681 2
4 WINDOW 13000500 1 16 CLAMP STROKE 27 20 6E/3 10103109 1
5 REINFORCEMENT PLATE Ø56-75-90-MOTOR 13109046 1 17 HARDWARE KIT CU FA90 13203849 1
6 THREAD FORMING SCREW 4X12-A2 12502043 1 17.1 SOCKET CAP SCREW M8X70 - DIN 912 20101986 1
7 DRIVER WELDMENT 13201561 1 17.2 ANCHOR CLAMP 13104575 1
8 SAFETY SWITCH ASS'Y 13104567 1 17.3 LOCKNUT M8 - DIN 985 20100418 1
9 SWITCH PLATE WITH PRESS SCREW 13109533 1 17.4 SOCKET CAP SCREW M8X10 - DIN 912 20102778 1
10 ADHESIVE TAPE 19X0.23-2SIDE 30800726 2 17.5 BOLT M8X20 - DIN 933-8.8 20200150 4
11 PARCKER SCREW 4.2X16 - DIN 7981 20102331 2 18 WASHER 5.3X10X1 - DIN 125 - A2 20102315 2
12 SWITCH CONNECTION STRIP 13105259 1 20 TUBE CLAMP ASSEMBLY Ø100MM 03202561 1
6
4
23
16
15
18
11
17.1
17.4
17.2
5
1
10
14
13
12
8
9
17.5
20
17.3
7

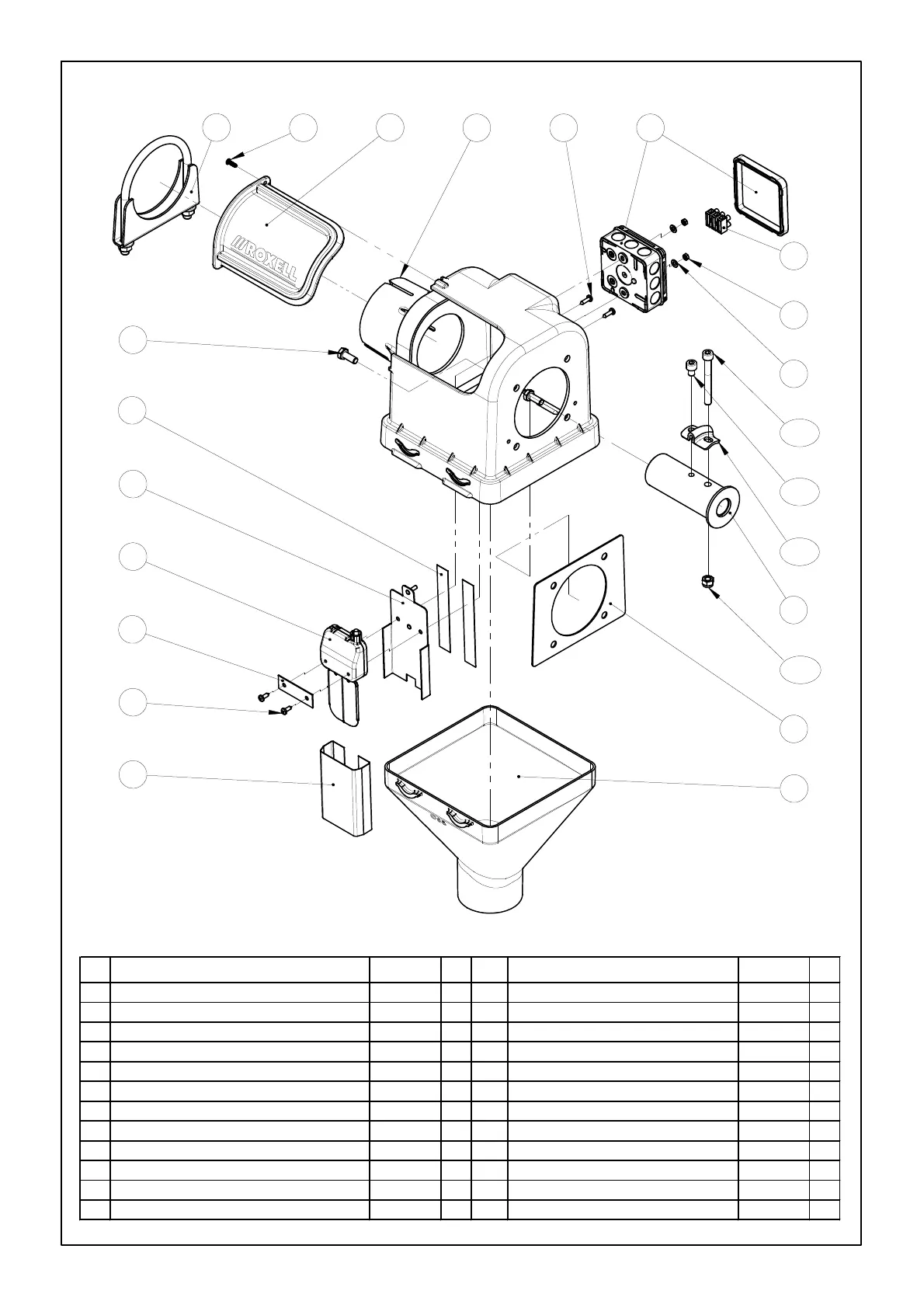

CONTROL UNIT FA 90 - 03202496
Key Nam e Part Nr. Qt. Key Name Part Nr. Qt.
1 DROP FOR DROP TUBE Ø85 13203815 1 13 PARCKER SCREW 8X1/2" 20100525 2
2 HOUSING - CONTROL UNIT Ø89 13203807 1 14 MINIMUM SWITCH SHIELD 10203115 1
3 HANDY BOX IPW AX4-IP55 15009814 1 15 NUT M4 20100681 2
4 WINDOW 13000500 1 19 CLAMP STROKE 27 20 6E/3 10103109 1
5 REINFORCEMENT PLATE Ø56-75-90-MOTOR 13109046 1 17 HARDWARE KIT CU FA90 13203849 1
6 THREAD FORMING SCREW 4X12-A2 12502043 1 17.1 SOCKET CAP SCREW M8X70 - DIN 912 20101986 1
7 DRIVER WELDMENT 13201561 1 17.2 ANCHOR CLAMP 13104575 1
8 SAFETY SWITCH ASS'Y 13104567 1 17.3 LOCKNUT M8 - DIN 985 20100418 1
9 SWITCH PLATE WITH PRESS SCREW 13109533 1 17.4 SOCKET CAP SCREW M8X10 - DIN 912 20102778 1
10 ADHESIVE TAPE 19X0.23-2SIDE 30800726 2 17.5 BOLT M8X20 - DIN 933-8.8 20200150 4
11 PARCKER SCREW 4.2X16 - DIN 7981 20102331 2 18 WASHER 5.3X10X1 - DIN 125 - A2 20102315 2
12 SWITCH CONNECTION STRIP 13105259 1 20 TUBE CLAMP ASSEMBLY Ø100MM 03202561 1
