Roxell FLEX-AUGER FA 55 - Double Intake Boot Fa 75 - 03103868; Double Intake Boot Fa 90 - 03202637

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-28
1.11.3
1.11.2
1.11.1
1.11.4
1.10
1.1
1.2
1.3
1.4
1.7
1.8
1.9
1.6
1.5
2.12
2.10
2.4
2.9
2.13
2.8
2.5
2.7
2.1
2.2
2.6
2.11
2.3

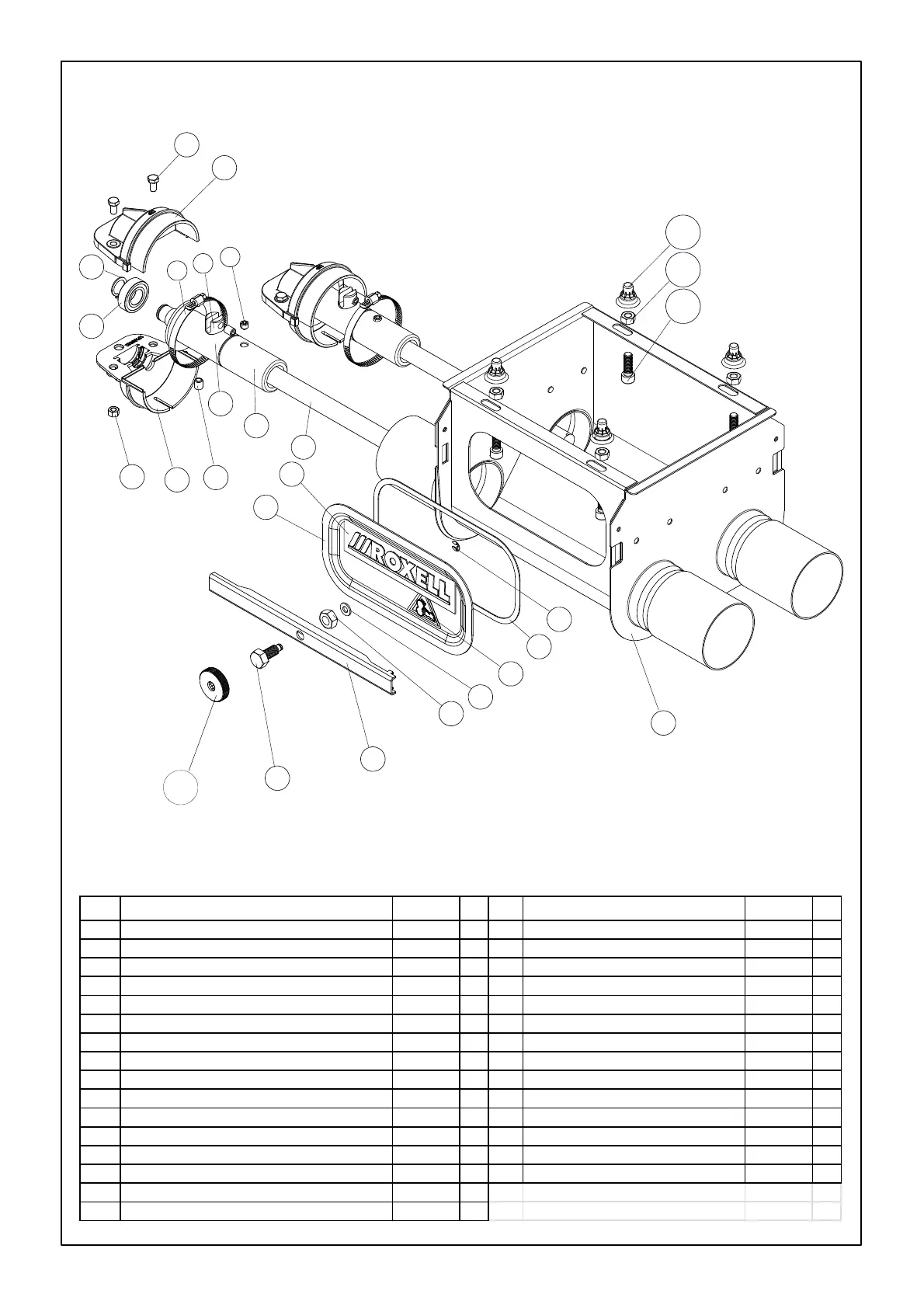

DOUBLE INTAKE BOOT FA 75 - 03103868
Key Nam e Part Nr. Qt. Key Nam e Part Nr. Qt.
1 DOUBLE INTAKE BOOT & CLOSING PLATE FA75 13108071 1 2 ANCHOR & BEA RING A SS'Y FA 75 13109681 2
1.1 CLOSING BOLT - BRASS SMAL 13108154 1 2.1 ANCHOR & BEA RING SHA FT FA 75-90 13109731 1
1.2 CLOSING PROFILE 13107768 1 2.2 RESTRICTOR Ø36 13105838 1
1.3 NUT M10 - DIN 934 20100277 1 2.3 ANCHOR TUBE WELDMENT Ø36 13105853 1
1.4 FIBER RING 20104287 1 2.4 BEARING 17X35X10 - 6003 LLU 13201066 1
1.5 E-RING Ø5-DIN 6799-A2 S.S 20102018 1 2.5 SET SCREW M8X10 - DIN 916 20100434 2
1.6 CLOSING PLATE 13107776 1 2.6 CLAMP PIN 13100482 1
1.7 GASKET 15X2 30800874 1 2.7 SET SCREW M8X8-DIN 916 20101697 1
1.8 ROXELL DECAL - 160X40 10101129 1 2.8 BEARING HOLDER CAP DOWN - Ø75 13109632 1
1.9 DECAL - HANDS WARNING 13106596 1 2.9 BEARING HOLDER CAP UP - Ø75 13109624 1
1.10 DOUBLE BOOT WELDMENT FA 75 13108063 1 2.10 SEEGER RING Ø17X1 20101333 1
1.11 HARDWARE KIT 13108055 1 2.11 HOSE CLAMP ASSEMBLY Ø70-90 03100658 1
1.11.1 NUT M8 DIN 934 - SP 20200119 4 2.12 BOLT M6X12 - DIN 933-8.8 20100160 2
1.11.2 SEAL CAP M8 16103699 4 2.13 LOCKNUT M6 - DIN 985 20100400 2
1.11.3 KNURLED KNOB 13107842 1
1.11.4 SOCKET CAP SCREW M8X25 - DIN 912 20101978 4
