Roxell FLEX-AUGER FA 55 - Page 51

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-29
Ke y Nam e Par t Nr . Qt . Ke y Nam e Par t Nr . Qt .
1 DOUBLE INTAKE BOOT & CLOSING PLATE FA90 13203005 1 2 ANCHOR & BEA RING ASS'Y FA90 13204011 2
1.1 CLOSING BOLT - BRASS SMAL 13108154 1 2.1 ANCHOR & BEARING SHAFT FA75-90 13109731 1
1.2 CLOSING PROFILE 13107768 1 2.2 ANCHOR TUBE WELDMENT Ø44 13201769 1
1.3 NUT M10 - DIN 934 20100277 1 2.3 RESTRICTOR Ø44 13201744 1
1.4 FIBER RING 20104287 1 2.4 BEARING 17X35X10 - 6003 LLU 13201066 1
1.5 E-RING Ø5-DIN 6799-A2 S.S 20102018 1 2.5 SET SCREW M8X10 - DIN 916 20100434 3
1.6 CLOSING PLATE 13107776 1 2.6 HOSE CLAMP Ø80 - 100MM 03200250 1
1.7 GASKET 15X2 30800874 1 2.7 BEARING HOLDER CAP UP - Ø90 13203781 1
1.8 ROXELL DECAL - 160X40 10101129 1 2.8 BEARING HOLDER CAP DOWN - Ø90 13203799 1
1.9 DECAL - HANDS WARNING 13106596 1 2.9 CLAMP PIN 13100482 1
1.10 DOUBLE BOOT WELDMENT FA 90 13203013 1 2.10 SEEGER RING Ø17X1 20101333 1
1.11 HARDWARE KIT 13108055 1 2.11 SPACER 13200134 2
1.11.1 NUT M8 DIN 934 - SP 20200119 4 2.12 LOCKNUT M6 - DIN 985 20100400 2
1.11.2 SEAL CAP M8 16103699 4 2.13 BOLT M6X12 - DIN 933-8.8 20100160 2
1.11.3 KNURLED KNOB 13107842 1
1.11.4 SOCKET CAP SCREW M8X25 - DIN 912 20101978 4

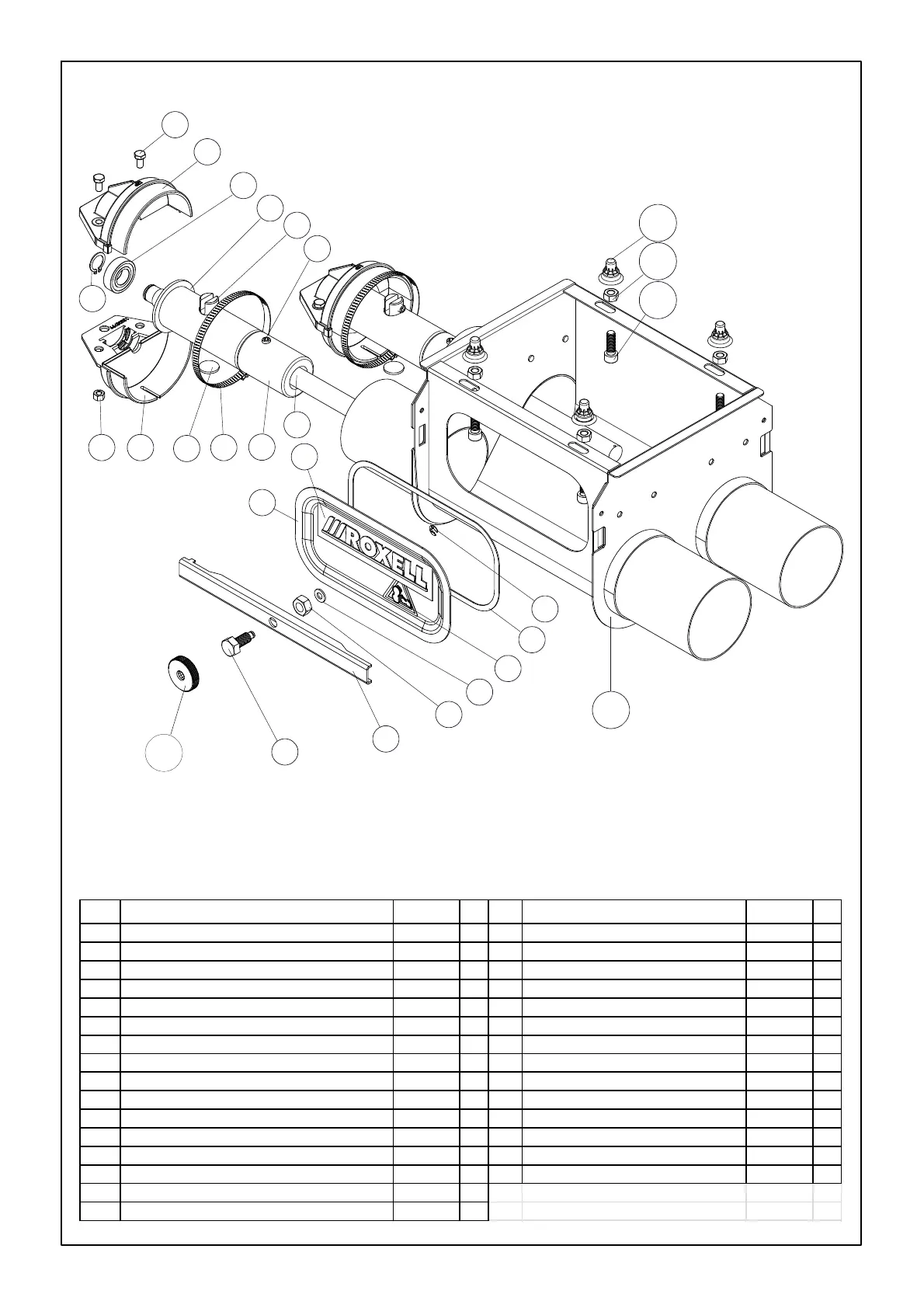

DOUBLE INTAKE BOOT FA 90 - 03202637
1.11.3
1.11.2
1.11.1
1.11.4
1.10
1.5
1.7
1.9
1.4
1.3
1.2
1.1
1.8
1.6
2.13
2.7
2.4
2.2
2.1
2.9
2.5
2.3
2.12 2.8
2.10
2.6
2.11
