ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-52
Install a control unit or extension boot not further than 10m
away from bin A.
This tandem is a straight-through Flex Auger.
Install the exact tube length between both bins (FIG. 105. page
III-50 ).

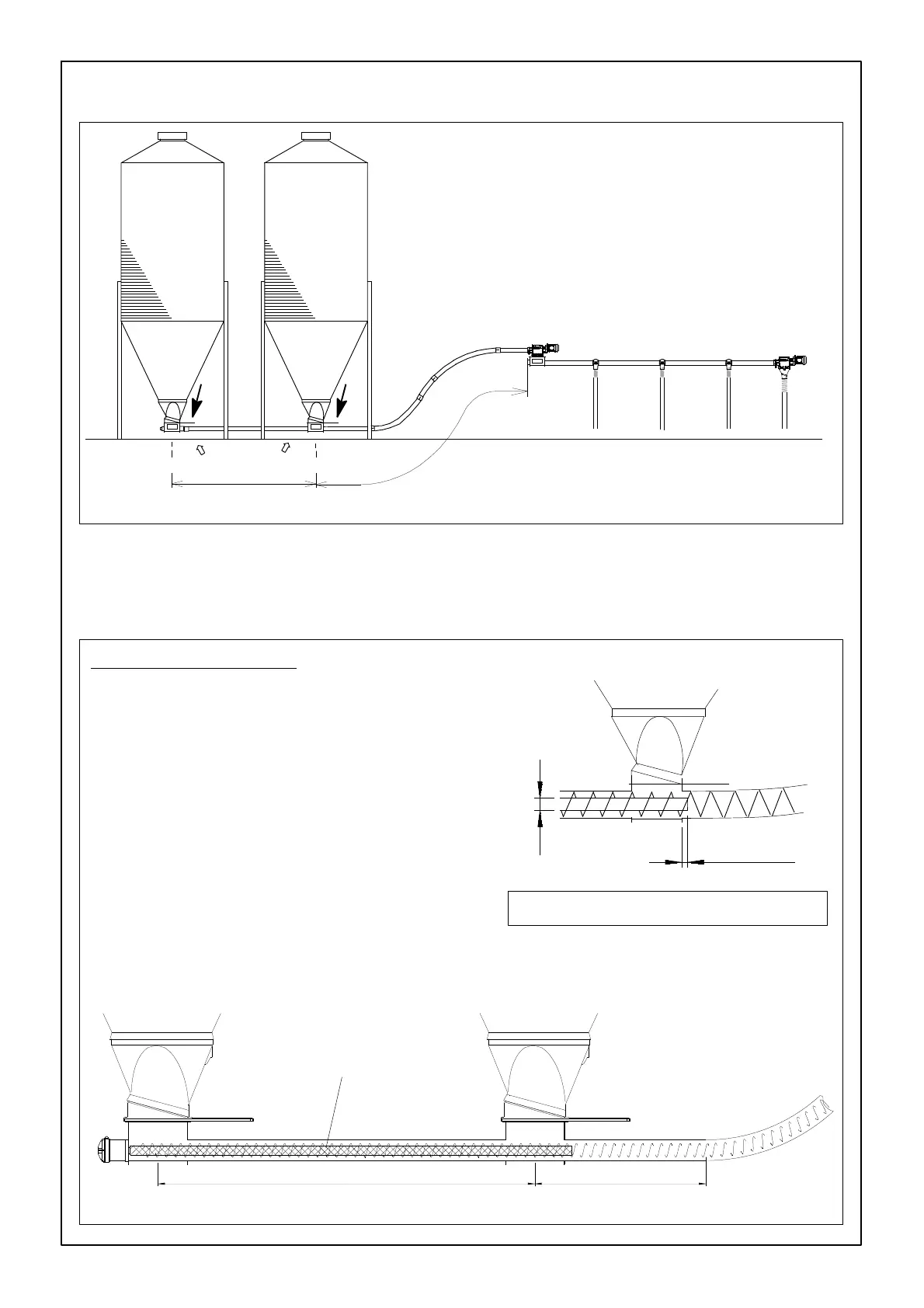

FIGURE 117.
Install the valves in the direction as shown on the drawing.
Max. 4m.
AB
Max. 6m
Here two thumpers.
TO INSTALL THE TANDEM IN LINE (MODEL 125)
- FOR TANDEM IN LINE (MODEL 75)
by installing a tube dia. 32mm (03103066) to the
anchor of feed bin A.
- FOR TANDEM IN LINE (MODEL 90)
by installing a poultry tube (dia. 44,5mm) without
holes (00102269) to the anchor of feed bin A
- FOR TANDEM IN LINE (MODEL 125)
by installing a tube dia. 60mm (03700861) to the
anchor of feed bin A.
A
Tube.
20mm
RESTRICTION WITH TUBES
B
Min. 1,5mmax. 4m
FIGURE 118.
This tube must extend up to about 20mm
past the boot of feed bin B.
REDUCING THE CAPACITY
Mount a tube in the auger between the two bins to avoid the auger from blocking.
