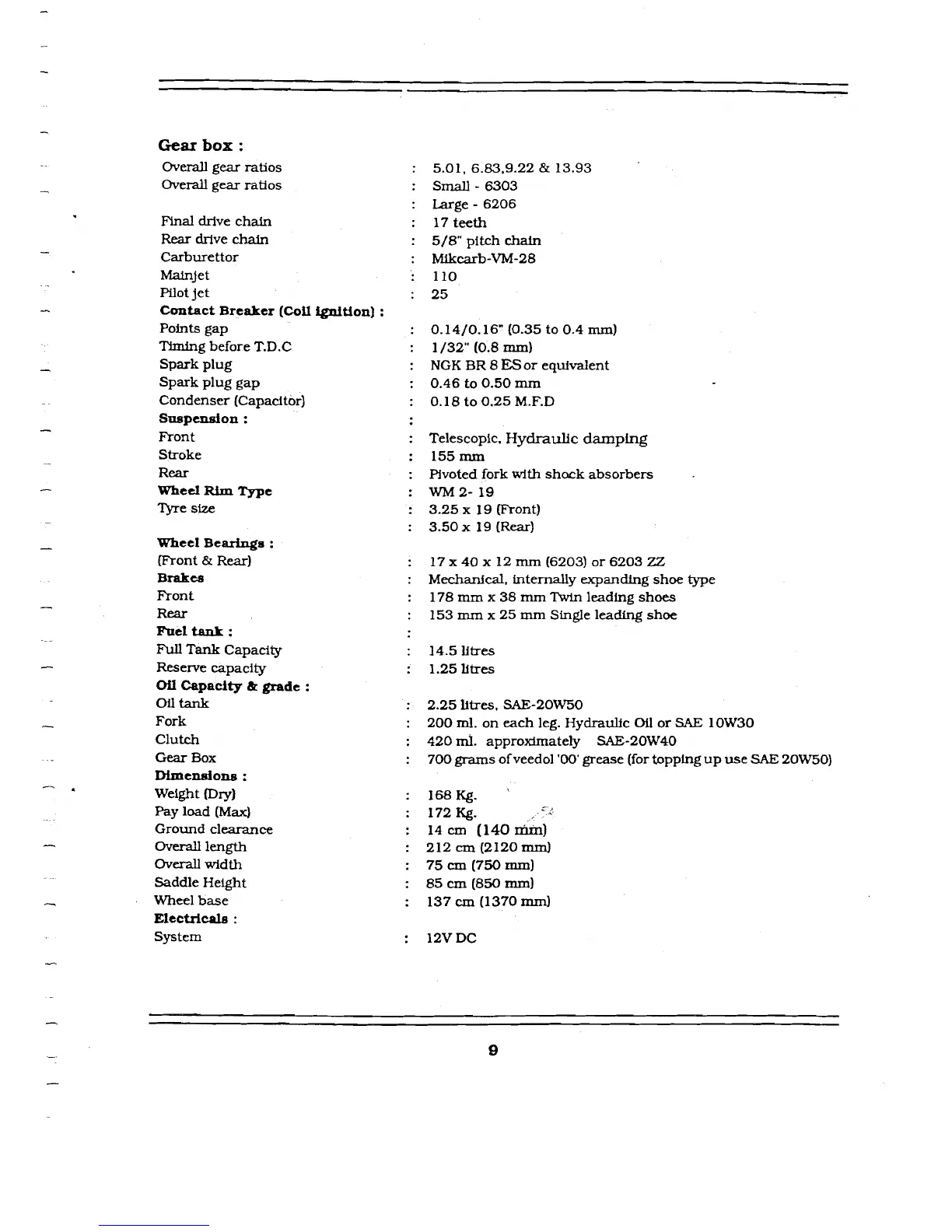

Gear b~x :
Overall gear ratios
: 5.01, 6.83.9.22 & 13.93
Overall gear ratios
: Small - 6303
: Large - 6206
Ffnal drive chain : 17 teeth
Rear drive chain : 5/BWpitchchaln
Carburet tor : Mikcarb-W-28
Malnjet : 110
FUot jet : 25
Contact Breaker (Coil ignition) :
Points gap : 0.14/0.16" (0.35 to 0.4 mm)
Tfming before T.D.C : 1 /32" (0.8 mm)
Spark plug
: NGK BR 8 ES or equivalent
spark plug gap : 0.46 to 0.50 mm
Condenser (Capacitor) : 0.18 to 0.25 M.F.D
Snspdon :
Front : Telescopic. Hydraulic damping
Stroke : 155 mm
Rear : Pivoted fork with shack absorbers
Wheel Bfm Type : WM2- 19
me size : 3.25 X 19 Front)
: 3.50~ 19(Rear)
Wheel Bearings :
Front & Rear) : 17x40x12mm~6203)or6203ZZ
Brake : Mechanical. internally expanding shoe type
Front
: 178 mm X 38 mm Twin leading shoes
Rear : 153 mm X 25 mm Single lea- shoe
Fuel tank :
Full Tank Capacity : 14.5 litres
Reserve capacity
: 1.25 litres
Oil Capacity & grade :
Oil tar& : 2.25 litres. SAE-20W50
Fork
: 200 ml. on each leg. Hydraulfc Oil or SAE 10W30
Clutch : 420 m]. approximately SAE-20W40
Gear Box
: 700 grams of veedollOO' grease (for topping up use SAE 20W50)
Mmensione :
Weight (Dry) : 168 ~g. '
Pay load (Maxl : 172 ~g.
-
Ground clearance : 14 cm (140 mm)
Overall length : 212 cm (2120mml
Overall width : 75cm (750mm)
Saddle Height : 85 cm (850 mm)
Wheel base : 137- (1370mm)
Electrlcals :
System : 12VDC

Royal Enfield Bullet Specifications

General

Displacement	346 cc
Max Torque	28 Nm @ 4000 rpm
Front Suspension	Telescopic, 35mm forks, 130mm travel
Kerb Weight	191 kg
Ground Clearance	135 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Max Power	19.1 bhp @ 5250 rpm
Fuel System	Electronic Fuel Injection
Transmission	5-speed constant mesh
Rear Suspension	Twin shock absorbers with 5-step adjustable preload
Front Brake	280 mm disc, 2-piston caliper
Rear Brake	153mm Drum, Single Lead Internal Expanding
Fuel Tank Capacity	13.5 Litres
