Royal Enfield Bullet User Manual

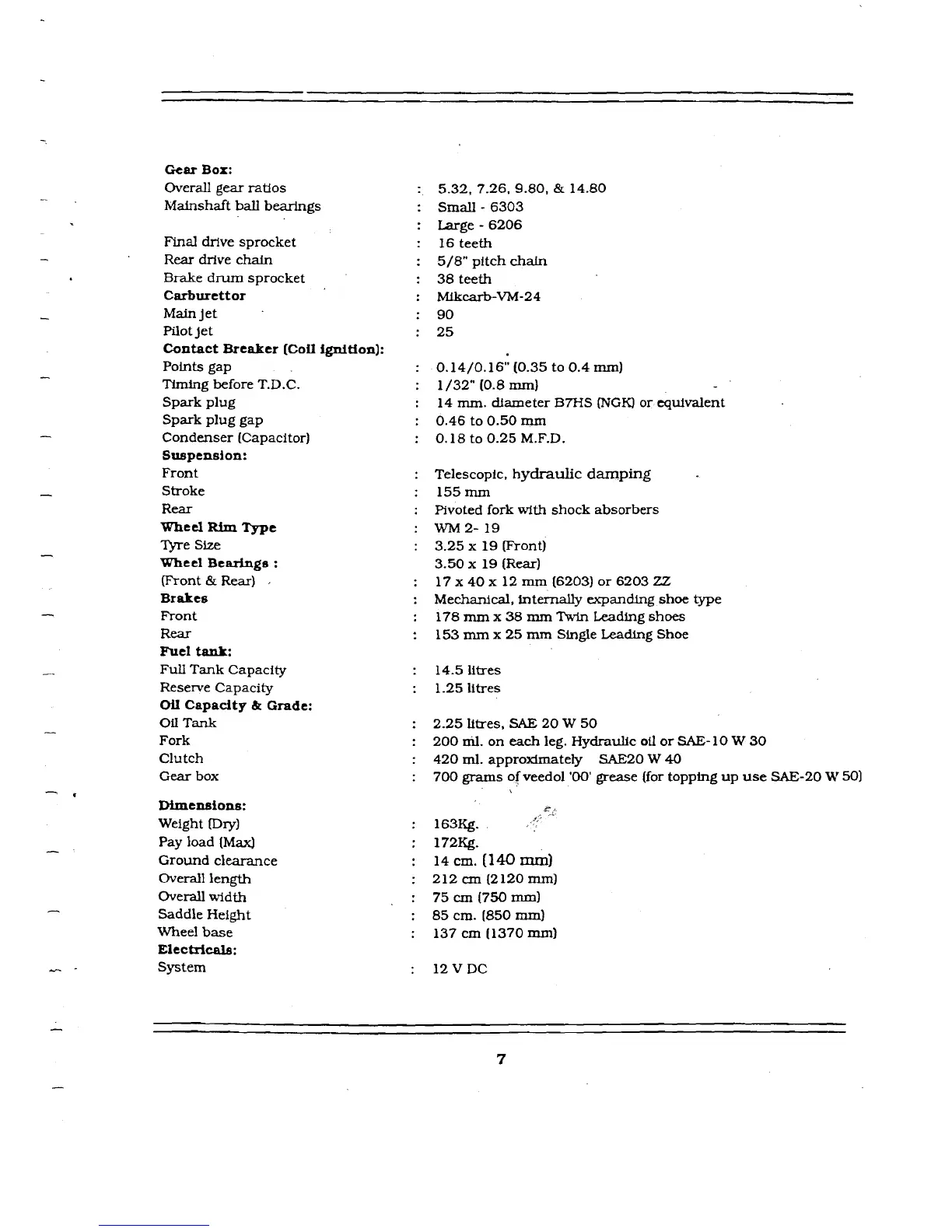

Gear Box:
Overall gear ratios
Mainshaft ball bearings
Final drive sprocket
Rear drive chain
Brake
dnun sprocket
Carburettor
Main jet
Pilot jet
Contact Breaker [Coil igdtion):
Points gap
Timhg before T.D.C.
Spark plug
Spark plug gap
Condenser (Capacitor)
Suspension:
Front
Stroke
Rear
Wheel Rim Type
we Size
Wheel Bearings :
Font &Rear) .
Brakes
Front
Rear
Fuel tank
Full Tank Capacity
Reserve Capacity
Oil Capacity h Grade:
Oil Tank
Fork
Clutch
Gear box
Dimensions:
Weight Dry)
Pay load (Max)
Ground clearance
Overall length
Overall width
Saddle Height
Wheel base
Electxicals:
System
5.32,
7.26, 9.80, & 14.80
Small
- 6303
Large
- 6206
16 teeth
5/8" pitch chain
38 teeth
Mikd-W-24
90
25
:
0.14/0.16" (0.35 to 0.4 mm)
: 1/32" (0.8 mm)
:
14 mm. diameter B7HS (NGKI or equivalent
: 0.46 to 0.50 mm
: 0.18 to 0.25 M.F.D.
Telescopic, hydraulic damping
155 mm
Pivoted fork with shock absorbers
WM 2- 19
3.25
X 19 Front)
3.50
X 19 (Rear)
17 X 40 X 12 mm (6203) or 6203 ZZ
Mechanical, internally expanding shoe type
178
mm X 38 mm Twln Leading shoes
153
mm X 25 mm Single Leading Shoe
: 14.5litres
: 1.25 litres
: 2.25 litres, SAE 20 W 50
: 200 ml. on each leg. Hydraulic oil or SAE- 10 W 30
: 420 ml. approximately SAE2O W 40
: 700 grams of veedol'00' grease (for topping up use SAE-20 W 501
: 172Kg.
: 14cm. (140mm)
: 212cm(2120mm)
: 75 cm (750 mm)
: 85 cm. (850 mm)
: 137 cm (1370 mm)

Royal Enfield Bullet Specifications

General

Displacement	346 cc
Max Torque	28 Nm @ 4000 rpm
Front Suspension	Telescopic, 35mm forks, 130mm travel
Kerb Weight	191 kg
Ground Clearance	135 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Max Power	19.1 bhp @ 5250 rpm
Fuel System	Electronic Fuel Injection
Transmission	5-speed constant mesh
Rear Suspension	Twin shock absorbers with 5-step adjustable preload
Front Brake	280 mm disc, 2-piston caliper
Rear Brake	153mm Drum, Single Lead Internal Expanding
Fuel Tank Capacity	13.5 Litres
