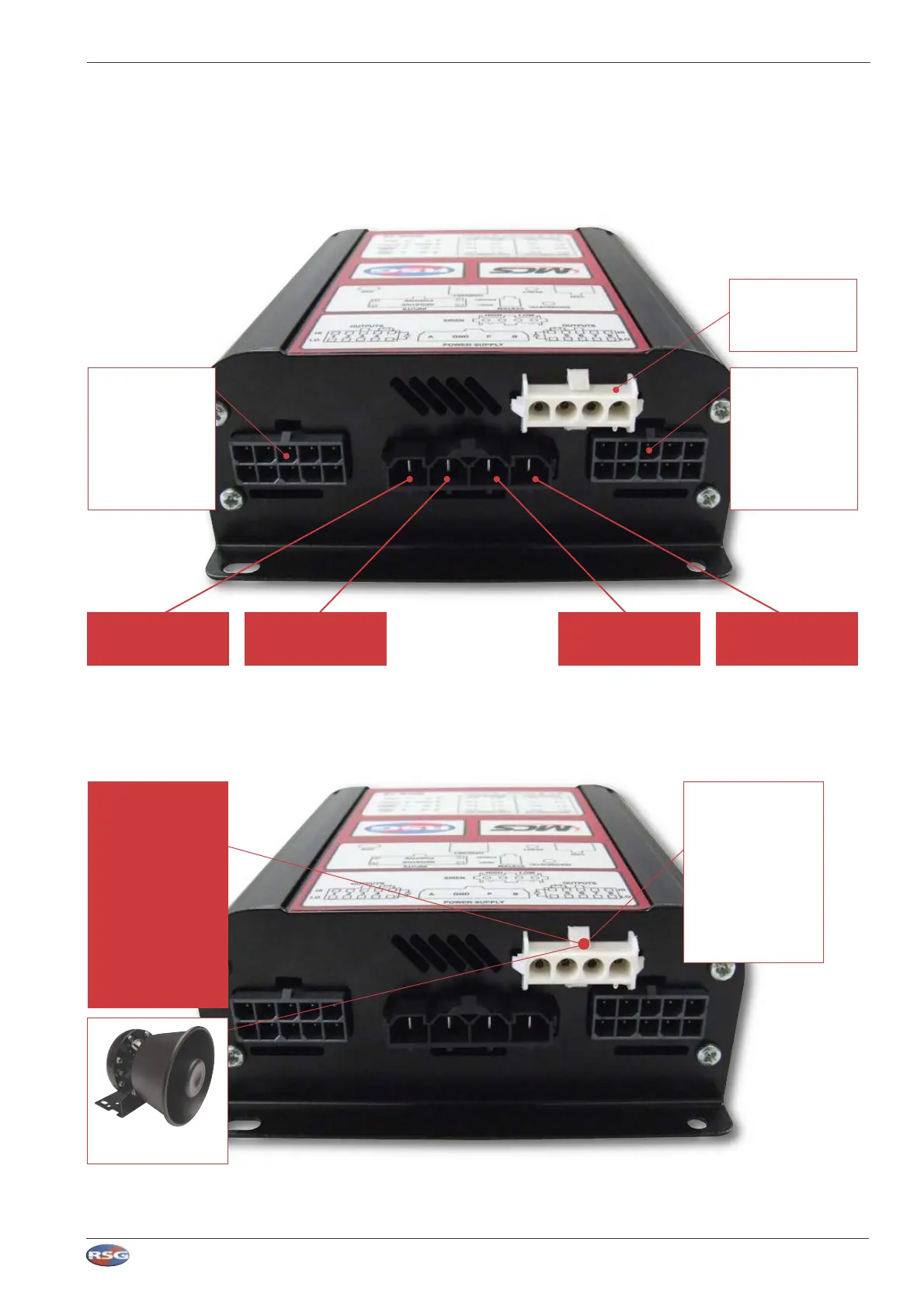

F:4 Siren Speaker Connection
100w Siren
Output
• Selectable tones
UK and Euro
• Reduced volume
‘City Mode’
• Radio re-broadcast
Workshop mode
• Public address
Siren Speaker
Connector
• Supports 8 or 11 ohm
speakers
• Dedicated enable input
or from handset
Air horn input
• HRT pos or neg activation
• Multiple siren tones
selected from software
• Monitor signal active
when siren on
100w Siren Speaker (8ohms)
LSP-210
Bank A 40 Amps
Supply for Siren & Outputs
Ground
Earth for the Siren & MCS
Ignition 20 Amps
(Primary Battery)
Bank B 40 Amps
Supply to Outputs
Bank B
Connections
Low Power Outputs
4 x high power 20Amp
4 x Low Power 0.6Amp
+ve & -ve Polarity Outputs
2 x Diode Pair Outputs
Bank A
Connections
Low Power Outputs
4 x high power 20Amp
4 x Medium Power 2.5Amp
+ve & -ve Polarity Outputs
2 x Diode Pair Outputs
Siren Speaker
Connector
8 or 11 Ohm
F:3 Outputs and Power Options
RSG Engineering Limited Telephone : 01543 438800 Fax : 01543 438801 Email : sales@rsg-ontop.com Web : www.rsg-ontop.com
1:8
UNIVERSAL CONTROLLER LITE (MCS-16) USER GUIDE V1 F : CONNECTION AND SWITCH DETAILS
F : Connection and Switch Details
