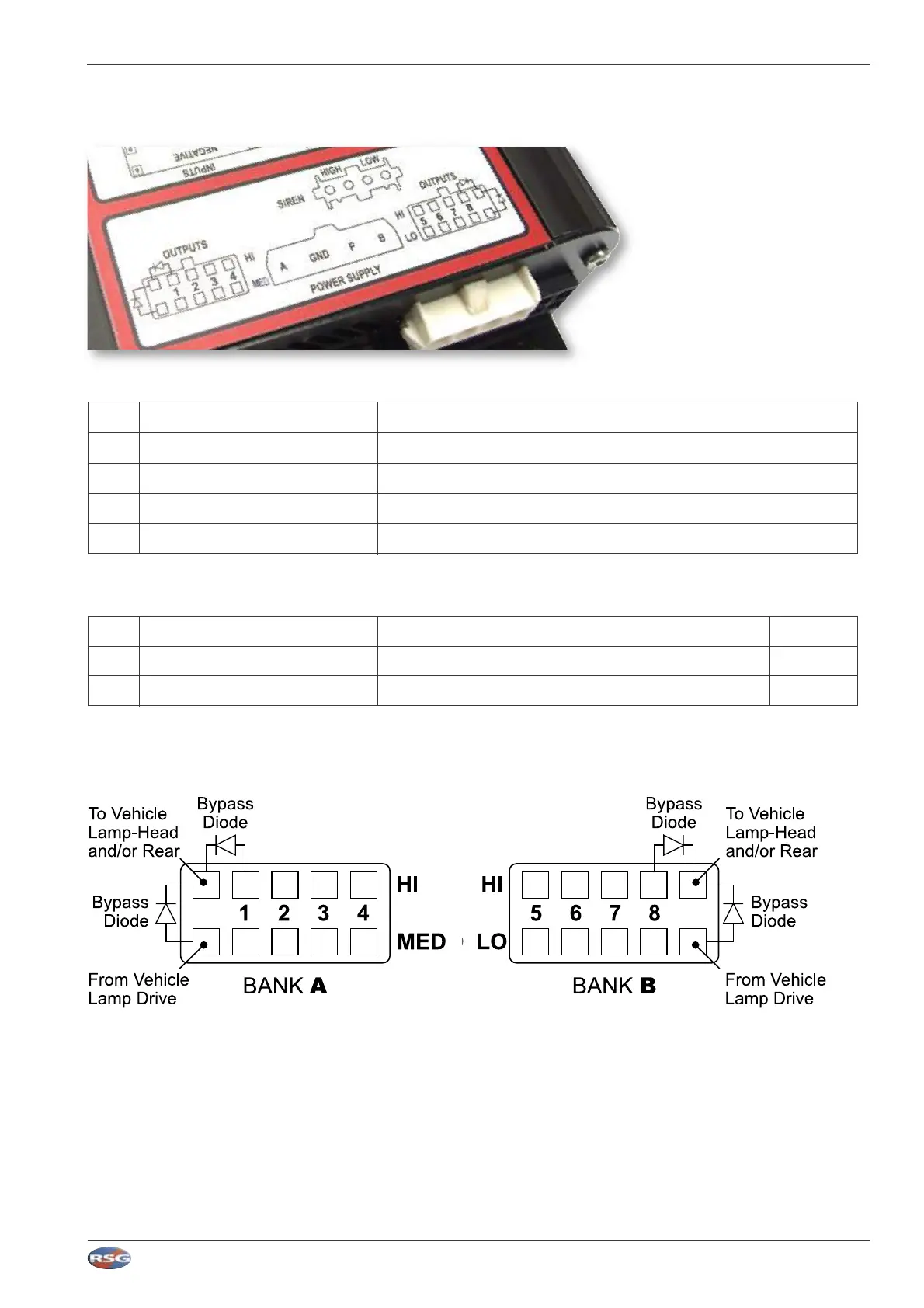

4.1 Power Inputs
4.2 Power Outputs
PIN NAME FUNCTION
1 Bank B Power Supply to B-Bank Outputs
2 Primary Power supply high to Output 4, and input voltage sense for primary battery
3 Ground System Ground \ Chassis
4 Bank A Power Supply to A-Bank Outputs and the Siren
PIN NAME FUNCTION SUPPLY
1-4 Power Outputs Bank A
5-8 Power Outputs Bank B
4.3 Diode I/O’s
RSG Engineering Limited Telephone : 01543 438800 Fax : 01543 438801 Email : sales@rsg-ontop.com Web : www.rsg-ontop.com
2:42
UNIVERSAL CONTROLLER LITE (MCS-16) USER GUIDE V1 4 : WIRING AND CONNECTIONS
4 : Wiring and Connections
