2.1 Both the Bank A and Bank B Supply lines MUST be fused (fuse rating of 40Amps or less as the application requires).
2.2 If the primary sense input is used, the input MUST be fused (fuse rating of 20Amps or less as the application requires).

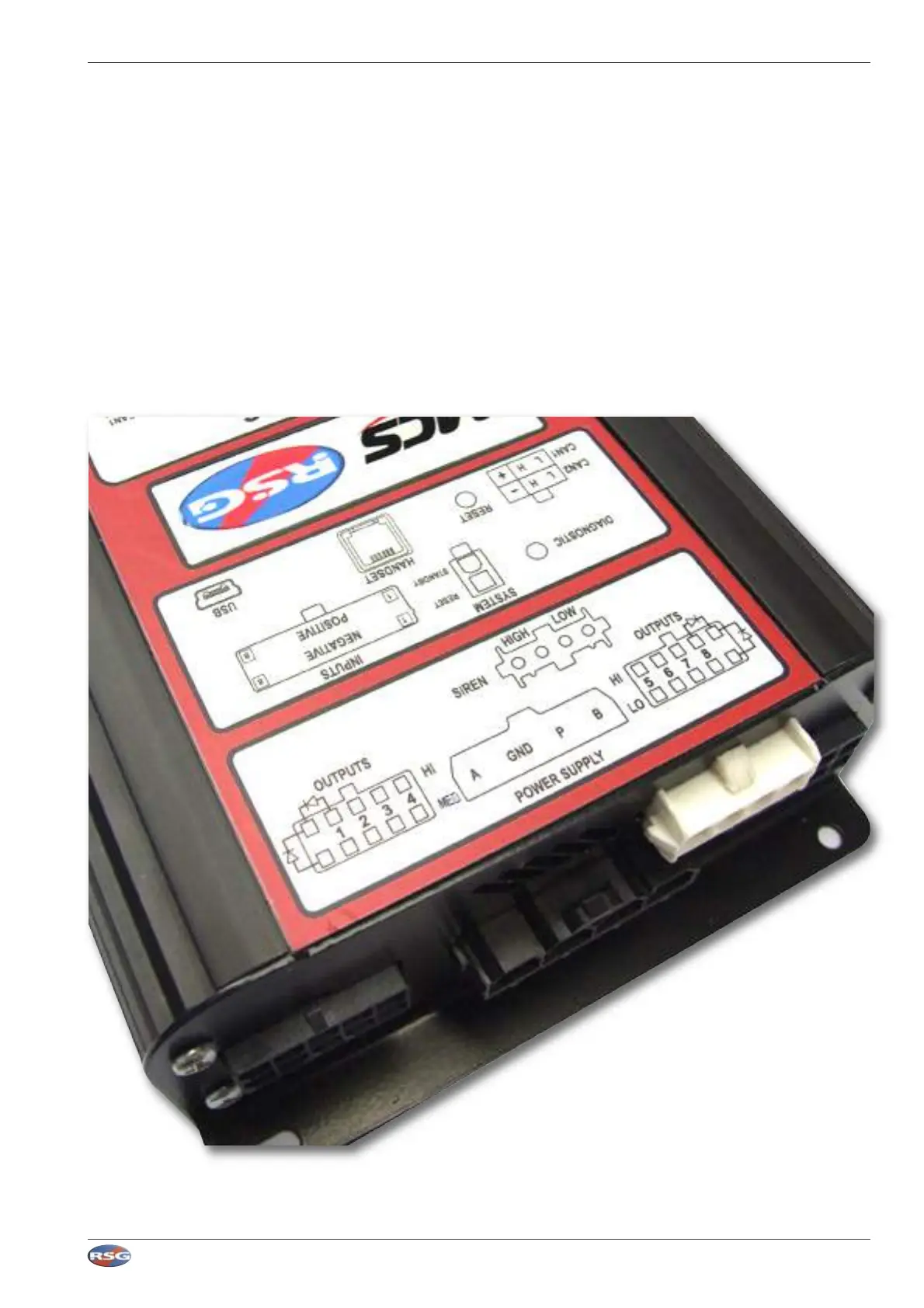

2.3 DO NOT obstruct fan vents along the top, side or under surfaces of the MCS-16. Do not install any equipment on top
or underneath the MCS-16.
The above installation requirement must be followed for safe operating and extended product lifetime.
RSG Engineering Limited Telephone : 01543 438800 Fax : 01543 438801 Email : sales@rsg-ontop.com Web : www.rsg-ontop.com
2:37
UNIVERSAL CONTROLLER LITE (MCS-16) USER GUIDE V1 2 : INSTALLATION REQUIREMENTS
2 : Installation Requirements
