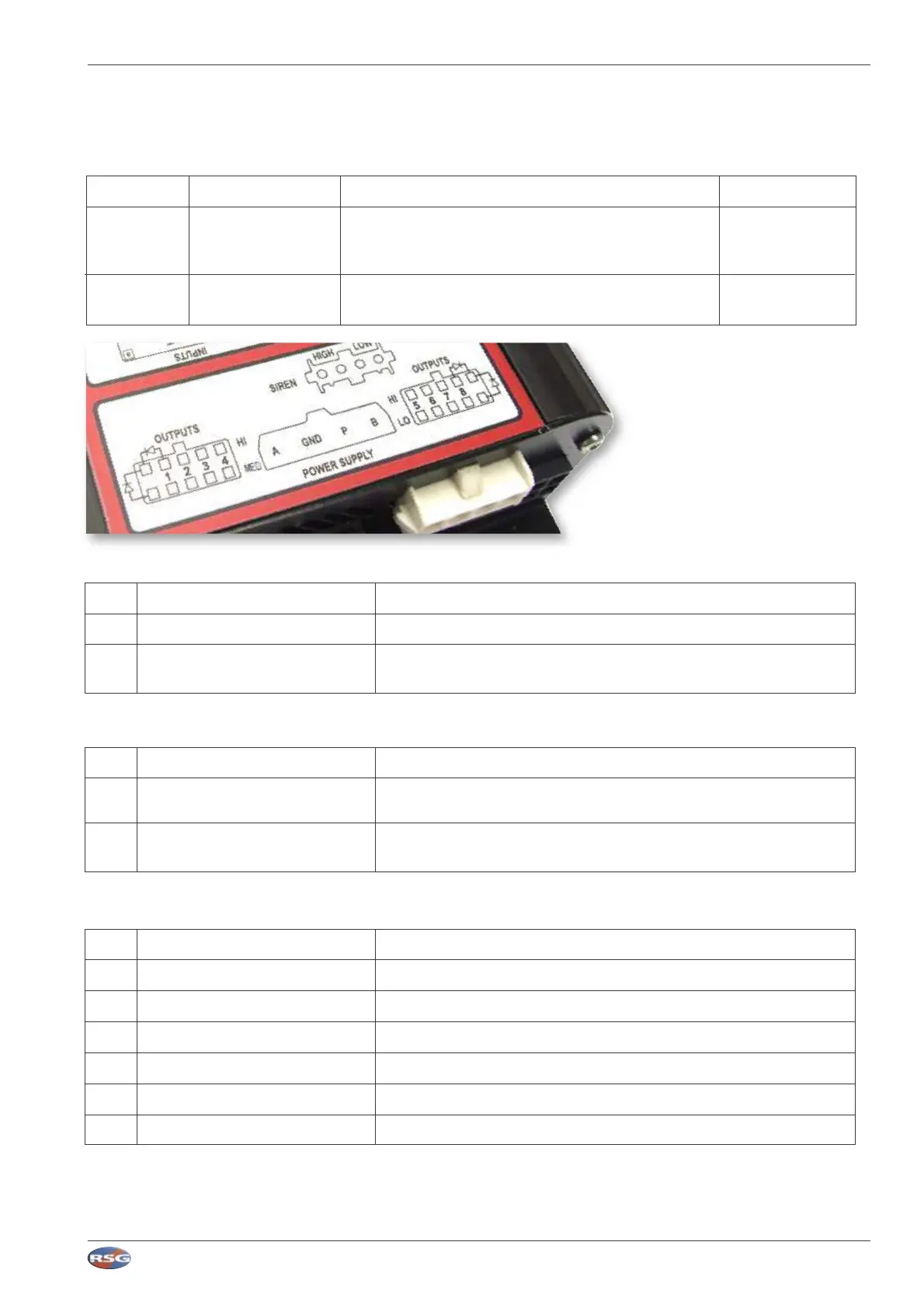

RSG MCS-16 - Configurable Outputs; System Connector

4.4 Configurable Outputs
PIN NAME FUNCTION CURRENT MAX
BANK A
Configurable Positive or Negative Data & Control Outputs
0.6A Continuous
1 - 4
(1A peak) current
per switch
BANK B
5 - 8
Configurable Positive or Negative Data & Control Outputs 2.5A
4.5 System Connector
PIN NAME FUNCTION
1 Reset Connect to 12v to reset the MCS-16
2 Standby When connected to chassis\ground, this input places the MCS-16 into a
very low power mode. All functionality is suspended.
4.6 Inputs
PIN NAME FUNCTION
1-8 Positive Inputs User Defined
9-16 Negative Inputs User Defined
4.7 CAN Bus
PIN NAME FUNCTION
1 Remote Power Output 12v Output for CAN Remotes. Protected with a 500mA resettable fuse
2 CAN 1 High
3 CAN 1 Low
4 Ground
5 CAN 2 High
6 CAN 2 Low
