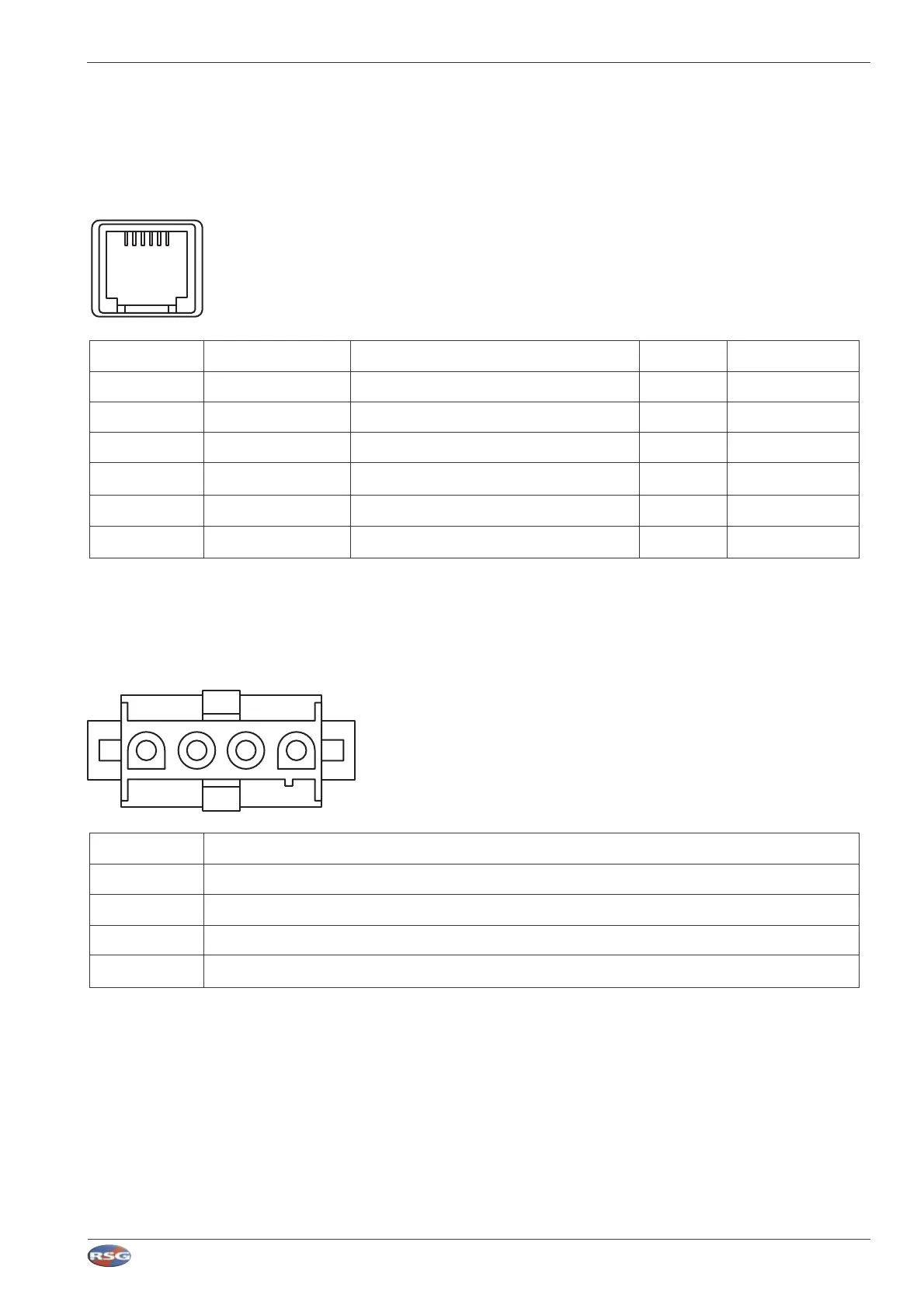

4.8 RS485
PIN NAME FUNCTION
1 (Left) Microphone Input
2 Ground Common
3 A RS485 Data
4 B RS485 Data
5 12VDC 12v Supply Output 250mA Max
6 (Right) PTT Sw PTT Active Low
16
4.9 Speaker Outputs
14
PIN NAME
1 (Left) 11 Ohm Speaker
2 11 Ohm Speaker
3 8 Ohm Speaker - typically to RSG 8 Ohm speaker - part number LSP-210
4 (Right) 8 Ohm Speaker - typically to RSG 8 Ohm speaker - part number LSP-210
RSG Engineering Limited Telephone : 01543 438800 Fax : 01543 438801 Email : sales@rsg-ontop.com Web : www.rsg-ontop.com
2:44
UNIVERSAL CONTROLLER LITE (MCS-16) USER GUIDE V1 4 : WIRING AND CONNECTIONS
4 : Wiring and Connections continued
For connection to Siren Amplifier
To Next Page
