R110PLUS USER MANUAL
2

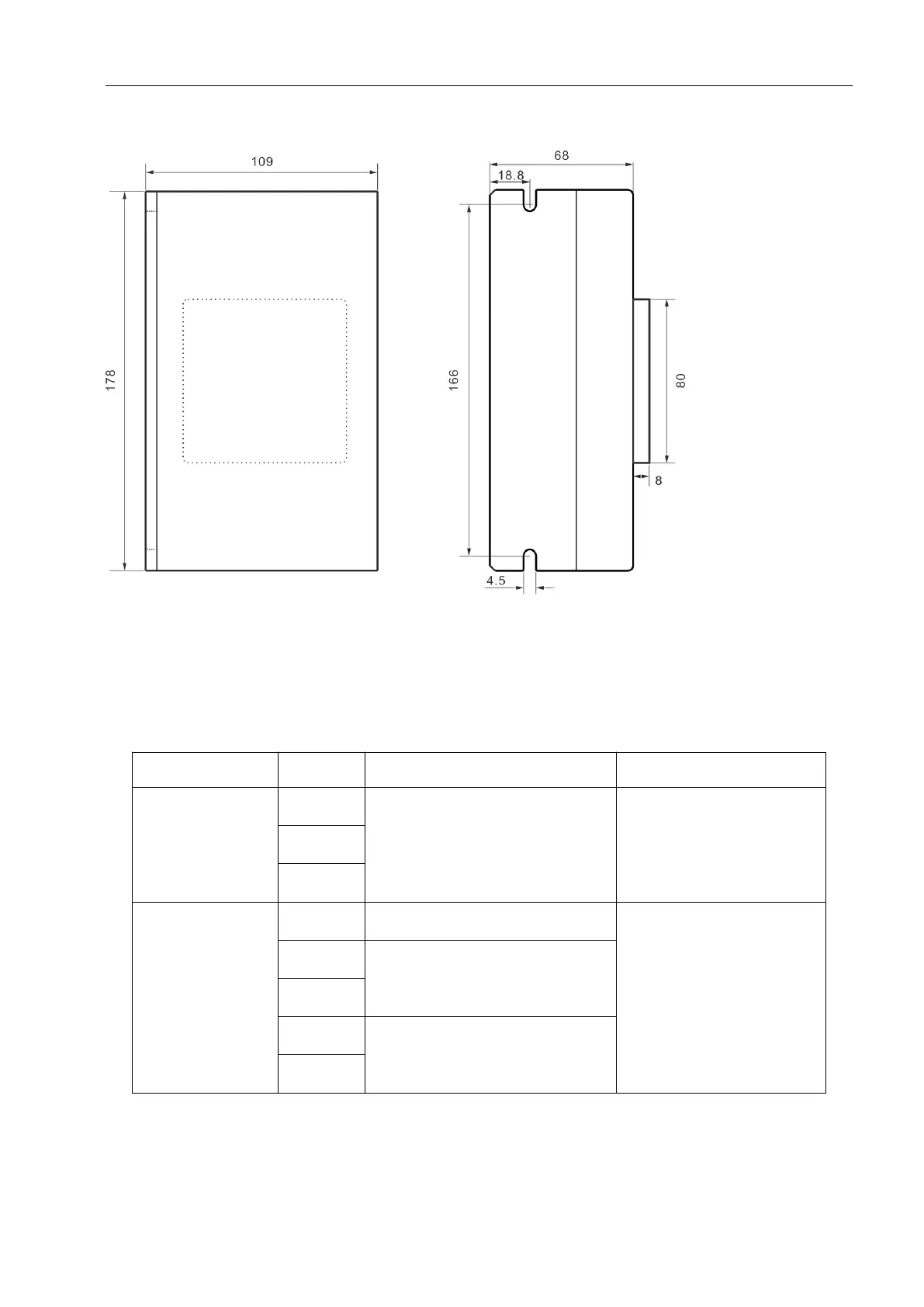

2.2 Driver installation dimensions
3. Driver port and connection
3.1 Power and motor port function description
Function
Grade
Definition
Remarks
Power supply
PE
Single-phase 220VAC
power input
AC
AC
Motor
PE
Reversing A+, A- or
B+, B- can make the
motor run in the
opposite direction.
B-
connect two terminals of
motor’s phase-B winding
B+
A-
connect two terminals of
motor’s phase-A winding
A+
