Installation onto valves
The actuator can be fitted onto the valve in any position. The coupling is designed with a standard M12 connection thread.
The length of the pillars must be specified when ordering an actuator.

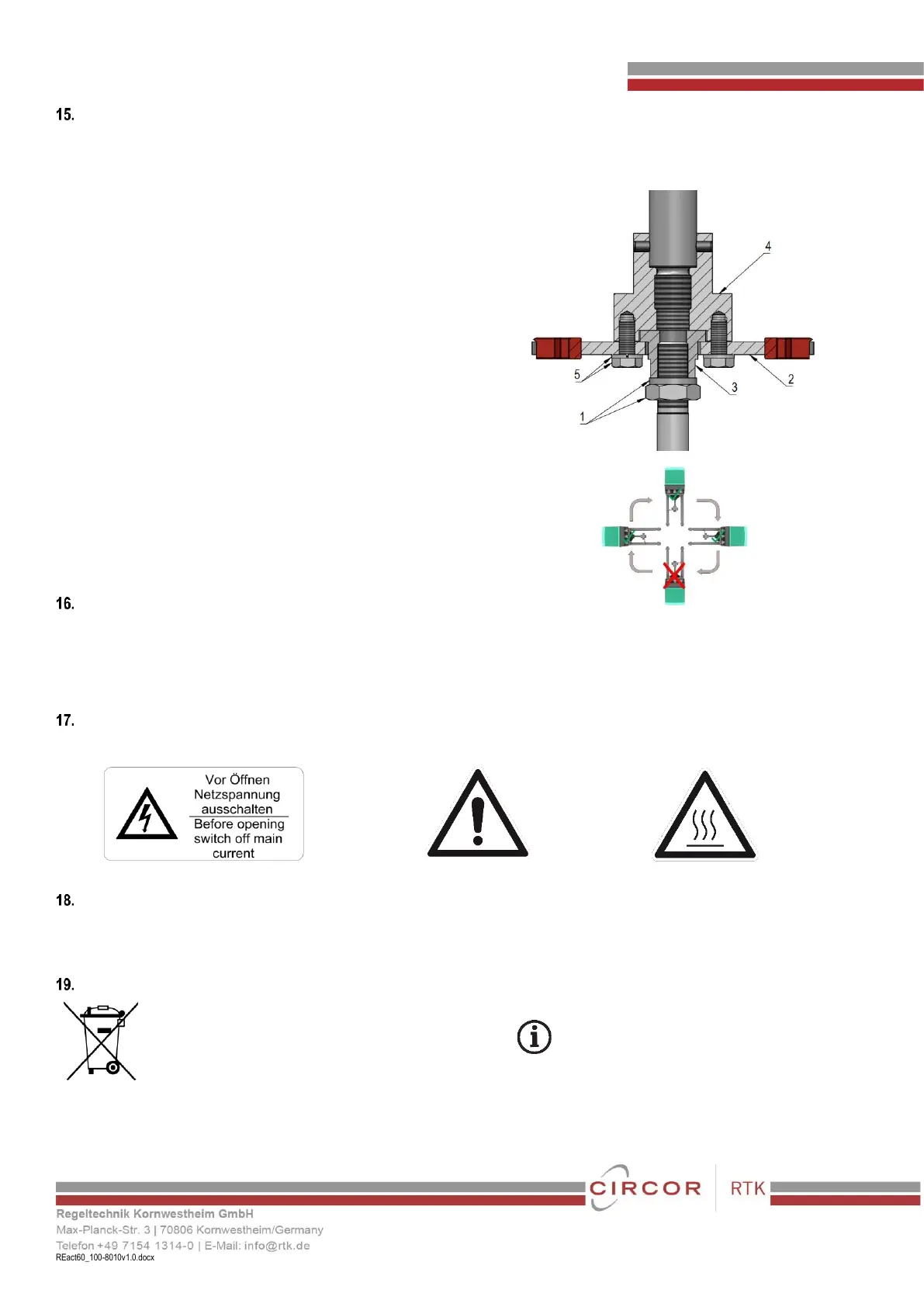

Installation with pillars
• Screw in the required pillars
• Screw DIN 439 M12 nut and spring washer onto the valve plug stem (1)
• Place parallel guide over the valve plug stem (2)
• Screw the bushing stud onto the valve plug stem (3)
• Attach the actuator/actuator spindle to the valve and adjust the position to lay flat on the bushing stud (4)
• Connect the parallel guide to the actuator coupling with 4x M6x20 bolts and spring washers (5)
• Adjust the actuator for stroke according to installation instructions
Permitted mounting positions:
Vertical upright position
Horizontal position with the pillars stacked
Install the actuator to leave adequate room for manual operation(Fig.10).
Also leave approx. 120 mm clearance to the top of the body for removal(Fig.10).
Operation conditions
• max. altitude 2000 m above sea level
• max. 95% working humidity
• Power supply ±10%
• Overvoltage category II
• Contamination level II
Hazard warnings
Notice
The RTK actuators are used to actuate control or shut-off valves that require a linear nominal travel. Application limits can be found in the data sheets or technical data.
The actuator may only be used for the intended purpose.
Any use of the actuator outside of the listed technical data or improper use is considered improper use.
Disposal
Regeltechnik Kornwestheim GmbH
registered manufacture in Germany
at Stiftung elektro-altgeräte register (ear).
WEEE-Reg.-Nr.: DE 64914972
