Digitaler Stellungsregler
Digital positioner
Positionneur digital
19.10.2017 REpos-8010.docx Technische Änderungen vorbehalten / Technical changes reserved / Modifications techniques sous réserve page 49

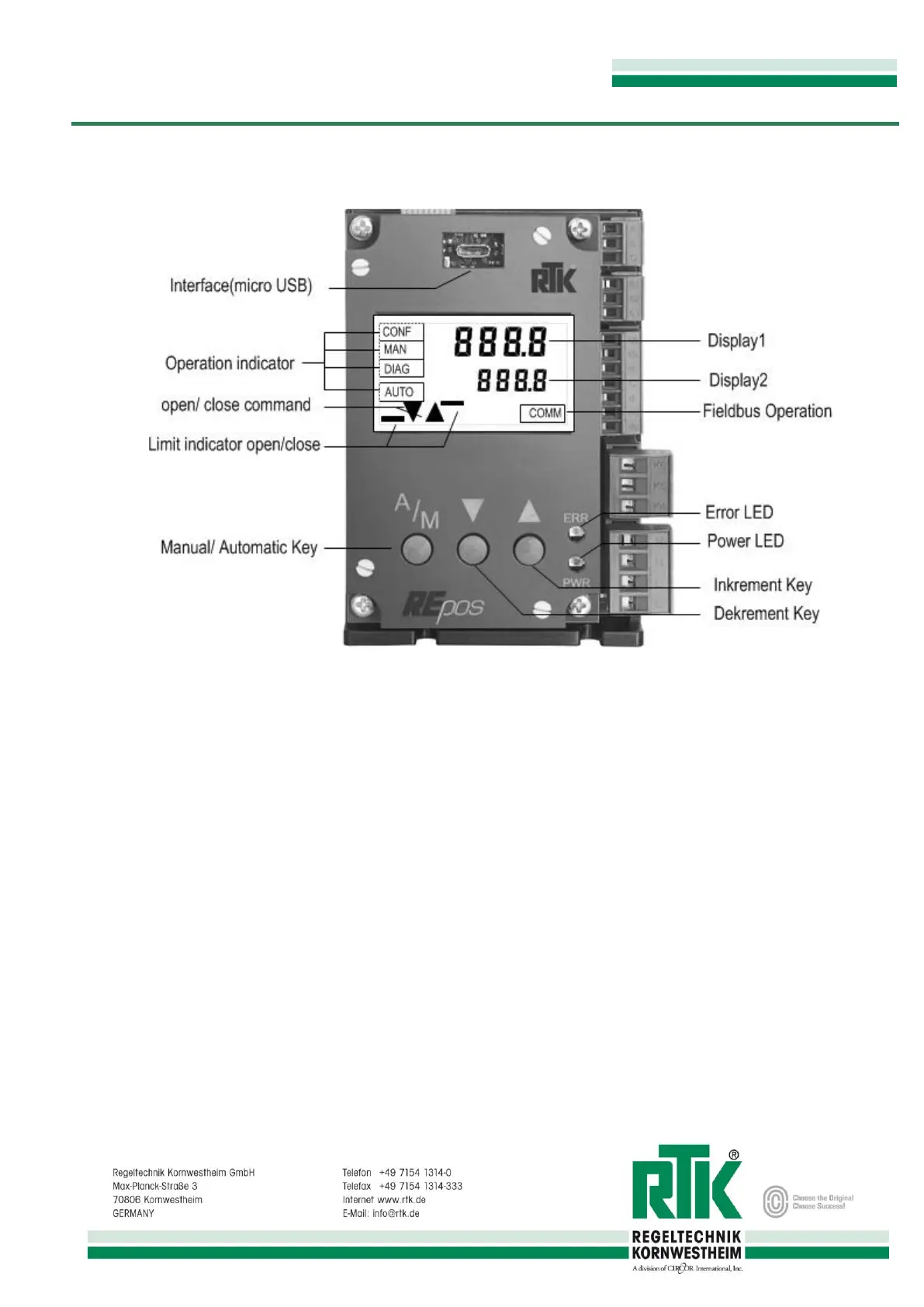

30. Operation
Display 1 indicates the current position (0-100%) in manual / automatic operation
and the parameter name at configuration level.
Display 2 indicates the in manual / automatic operation the target position (0-100%)
and the parameter value at configuration level.
Decrement Key D serves to navigate through the parameter menu
and to decrease the selected parameter values.
or to move the actuator in manual mode
Increment Key I serves to navigate through the parameter menu
and to increase the selected parameter values
or to move the actuator in manual mode
Interface(micro USB) for RTK internal use only!
a Improper use can lead to the destruction of the device!
