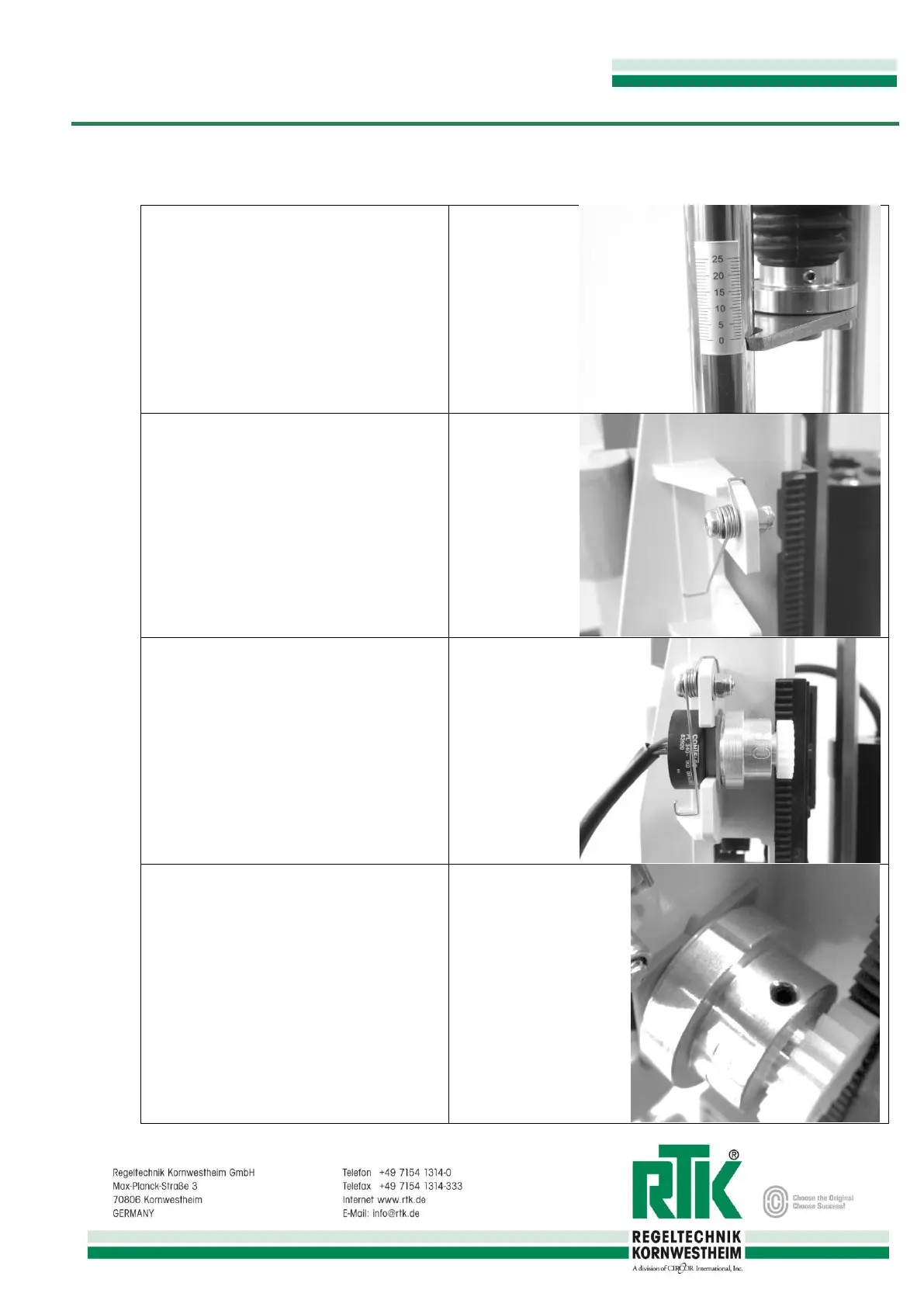

Actuator Type REact
Drive the actuator in 0% stroke position as shown.
 Actuator must be switch off in
0% position via limit / torque switch.
Install the leg spring as shown
Install the potentiometer group as shown
 The leg spring must keep the
potentiometer pinion form closed with
the teeth of the slide!
Rotate adjusting ring until the marking (A)and(B)
are aligned as shown.
Fasten the pinion securely in place (C) by using an
Allen key (size 1.5).
A
B
C
