Digitaler Stellungsregler
Digital positioner
Positionneur digital
REpos-8010
19.10.2017 REpos-8010.docx Technische Änderungen vorbehalten / Technical changes reserved / Modifications techniques sous réserve page 40

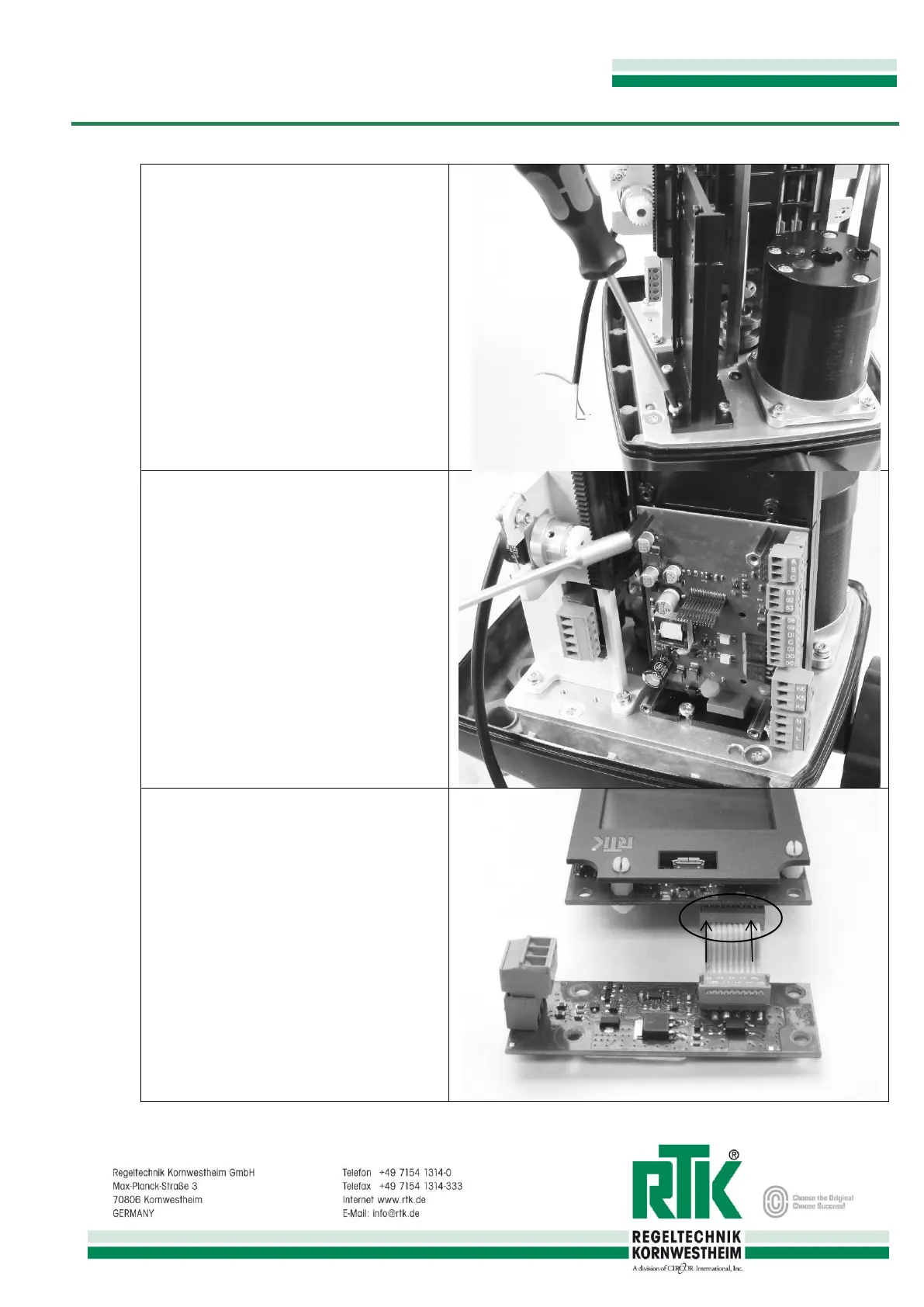

Fasten mounting bracket as shown.
4x screw M4 x 10 (TX20)
Fix the Power-board
4x distance bolt (5,5x20mm) self-cutting
optional
Connect feedback module with CPU-board as
shown.
